Description

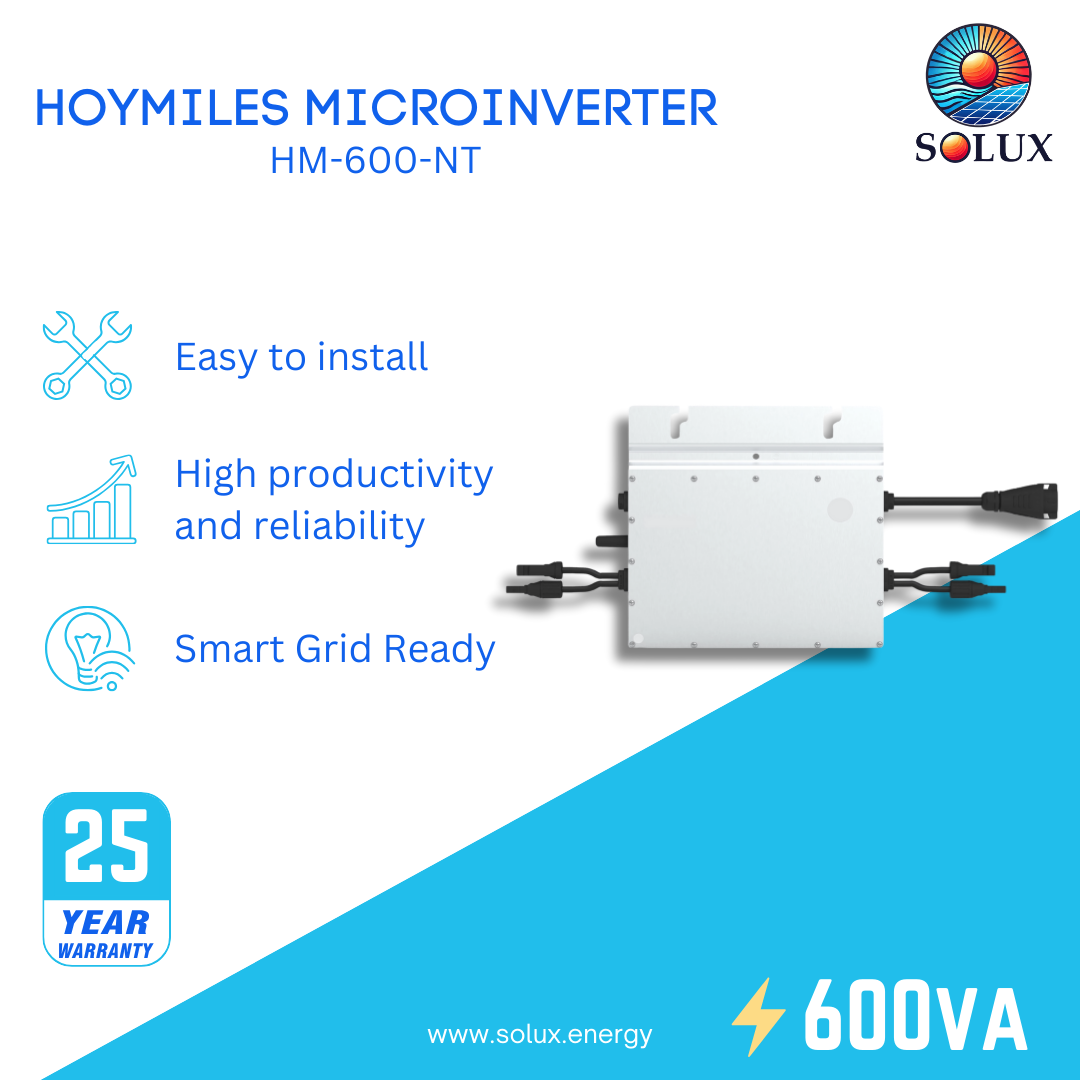

Hoymiles HMS Microinverter HM-600-NT
- Easy installation, just plug and play
- With Reactive Power Control, compliant with CA Rule 21
- Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown
- External antenna for stronger communication with DTU
- High reliability: NEMA 6 (IP67) enclosure, 6000 V surge protection
Scaling up your Solar Array?
For maximum installation efficiency and the best value on 4-panel systems, see technical and produc details for the [Hoymiles 1200W (HM-1200-NT)] or the high-output [1500W (HM-1500NT)] models.

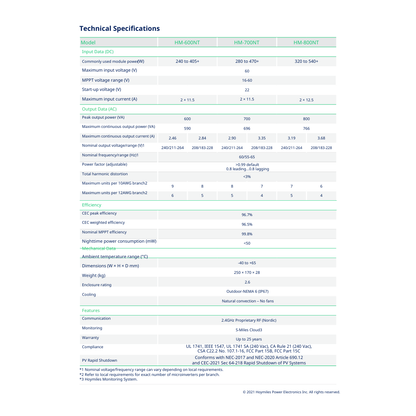

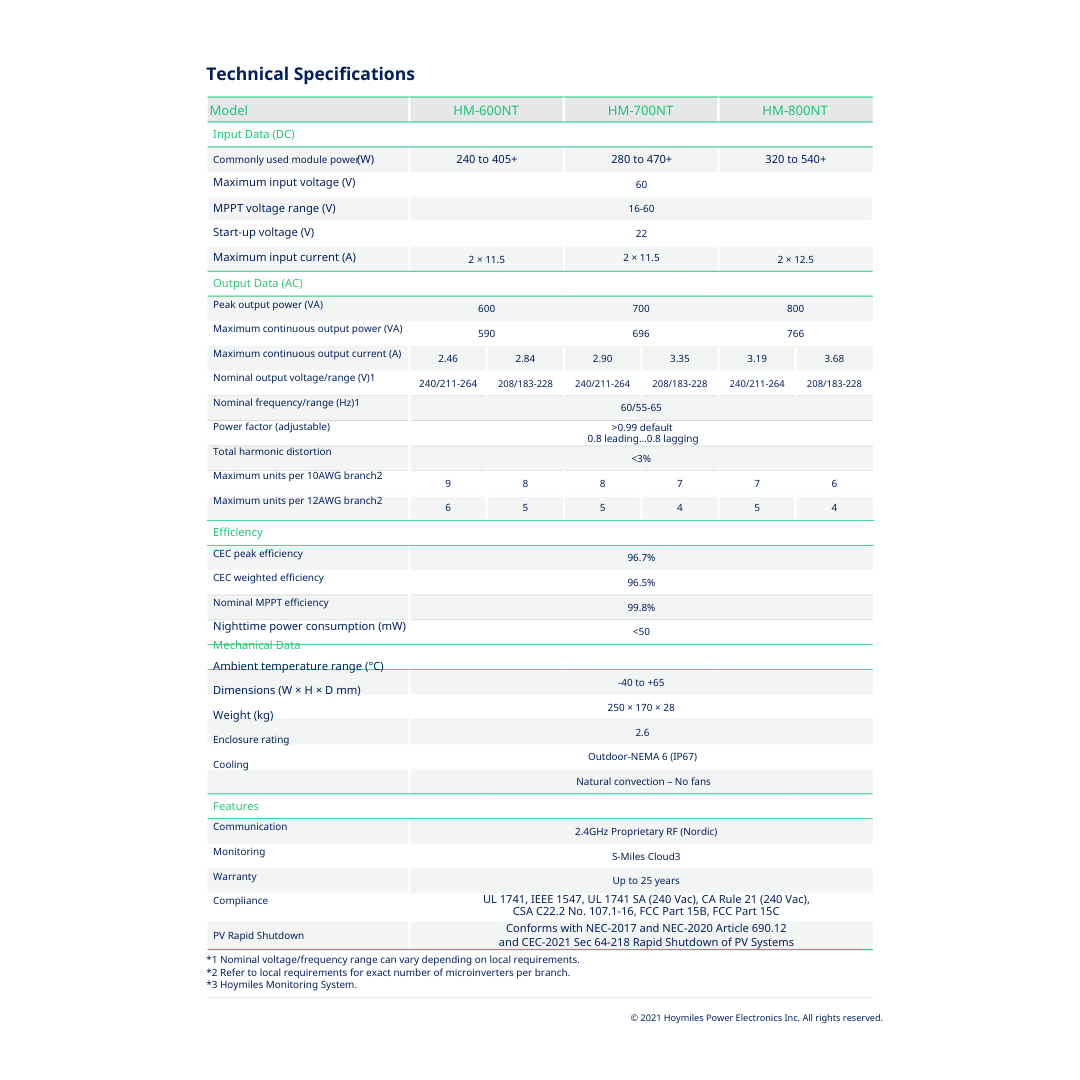

Technical Specifications
- Commonly used module power (W): 240 to 405+
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16-60
- Start-up voltage (V): 22
- Maximum input current (A): 2 × 11.5
- Peak output power (VA): 600
- Maximum continuous output power (VA): 590
- Nominal frequency/range (Hz)1: 60/55-65
- Power factor (adjustable): >0.99 default 0.8 leading…0.8 lagging
- Total harmonic distortion: <3%
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
- Nighttime power consumption (mW): <50
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm): 250 × 170 × 28
- Weight (kg): 2.6
- Enclosure rating: Outdoor-NEMA 6 (IP67)
- Cooling: Natural convection No fans
-
Resources
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
