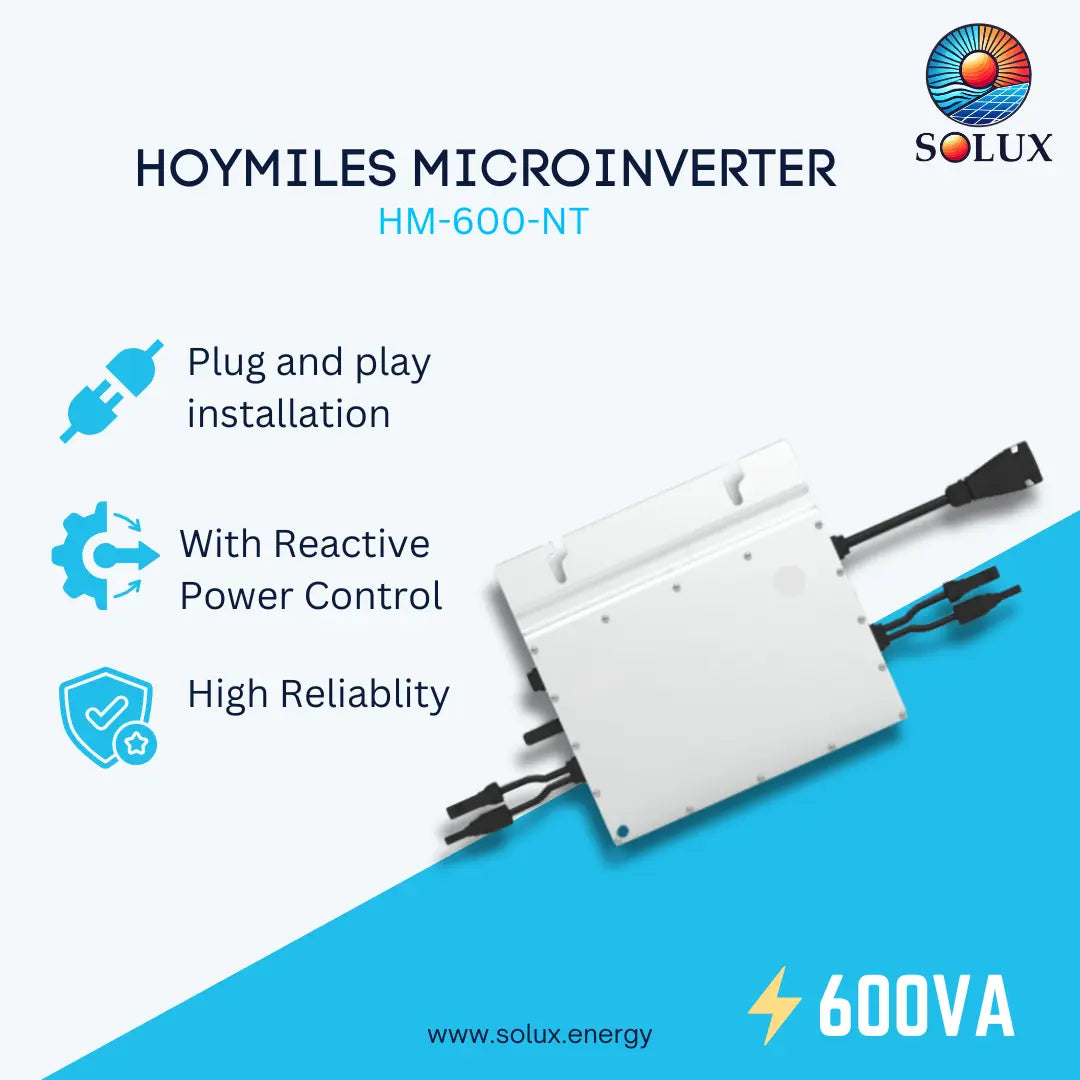

Hoymiles HMS Microinverter HM-600-NT

Hoymiles HMS Microinverter HM-600-NT

Easy installation, just plug and play
With Reactive Power Control, compliant with CA Rule 21
Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown
External antenna for stronger communication with DTU
High reliability: NEMA 6 (IP67) enclosure, 6000 V surge protection

Technical Specifications

• Commonly used module power (W): 240 to 405+
• Maximum input voltage (V): 60
• MPPT voltage range (V): 16-60
• Start-up voltage (V): 22
• Maximum input current (A): 2 × 11.5
• Peak output power (VA): 600
• Maximum continuous output power (VA): 590
• Nominal frequency/range (Hz)1: 60/55-65
• Power factor (adjustable): >0.99 default 0.8 leading…0.8 lagging
• Total harmonic distortion: <3%
• CEC peak efficiency: 96.7%
• CEC weighted efficiency: 96.5%
• Nominal MPPT efficiency: 99.8%
• Nighttime power consumption (mW): <50
• Ambient temperature range (°C): -40 to +65
• Dimensions (W × H × D mm): 250 × 170 × 28
• Weight (kg): 2.6
• Enclosure rating: Outdoor-NEMA 6 (IP67)
• Cooling: Natural convection No fans
