Description

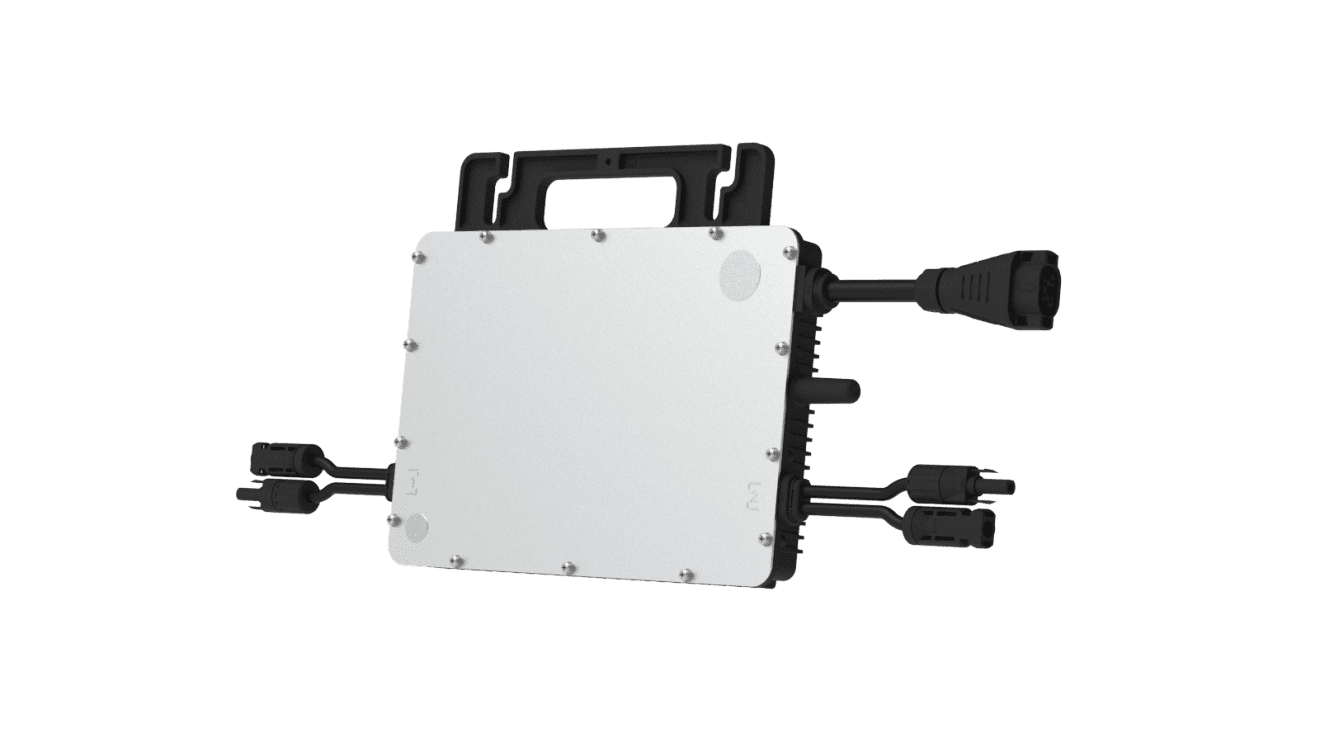

Hoymiles HM-NT Microinverter 1500T
Easy installation, just plug and play.
With Reactive Power Control, compliant with CA Rule 21.
Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown.
External antenna for stronger communication with DTU.
High reliability: NEMA 6 (IP67) enclosure, 6000 V surge protection.Technical Specification
- Commonly used module power (W): 300 to 505+
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16-60
- Start-up voltage (V): 22
- Maximum input current (A): 4 × 11.5
- Nominal frequency/range (Hz): 60/55-65
- Power factor (adjustable): >0.99 default 0.8 leading…0.8 lagging
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
- Nighttime power consumption(mW): <50
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm): 280 × 176 × 33
- Weight (kg): 3.35
- Enclosure rating: Outdoor-NEMA 6 (IP67)
- Cooling: Natural convection – No fans
-
Downloads
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No quick installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
