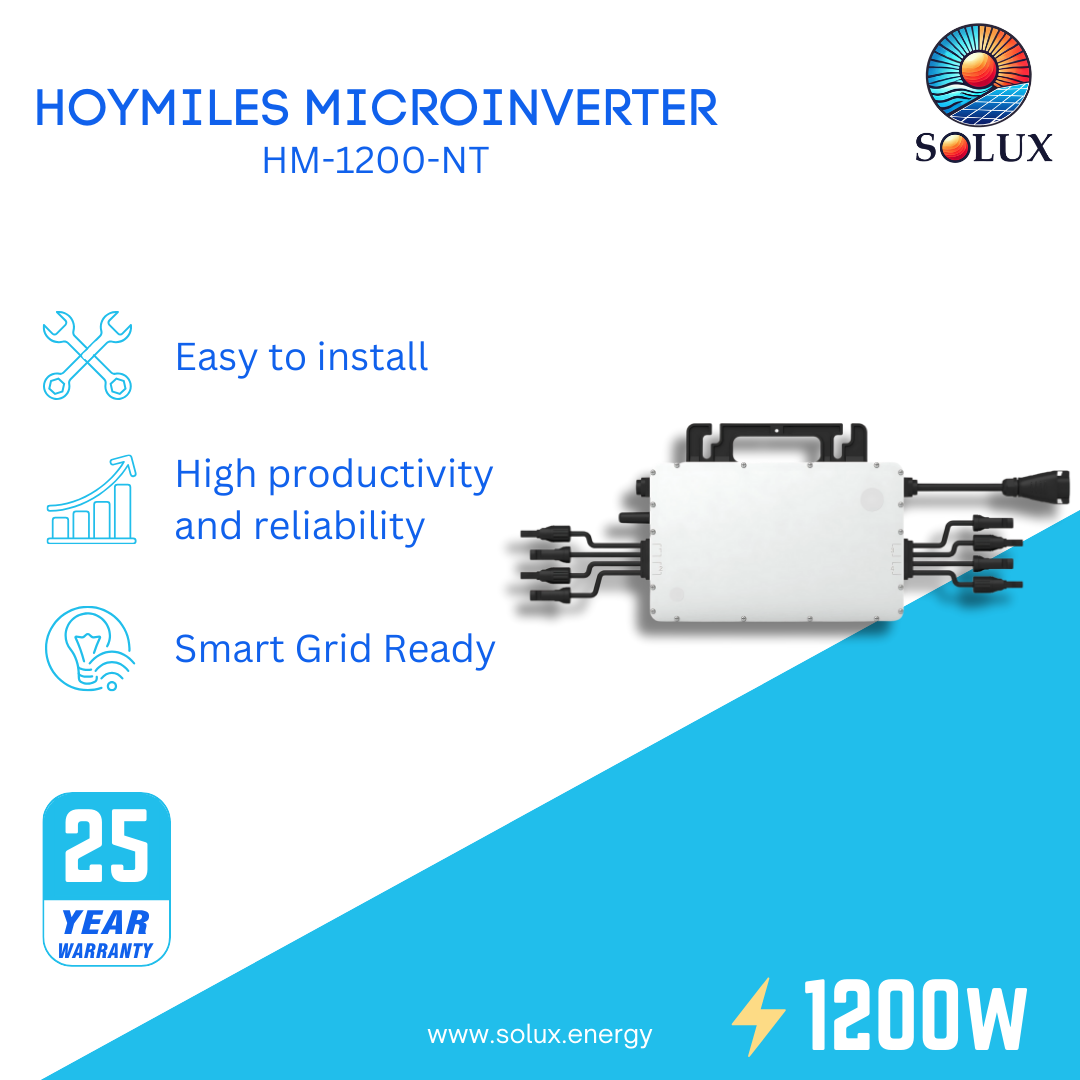

Hoymiles HMS Microinverter HM-1200-NT
The Hoymiles HM-1200 is a high-performance 1200W quad-module microinverter designed to streamline solar installations by supporting up to four modules with a single unit. As a top-tier microinverter Hoymiles solution, the 1200NT series provides module-level MPPT and maximum reliability for residential and commercial solar arrays.
-
Key Features & High-Performance Design

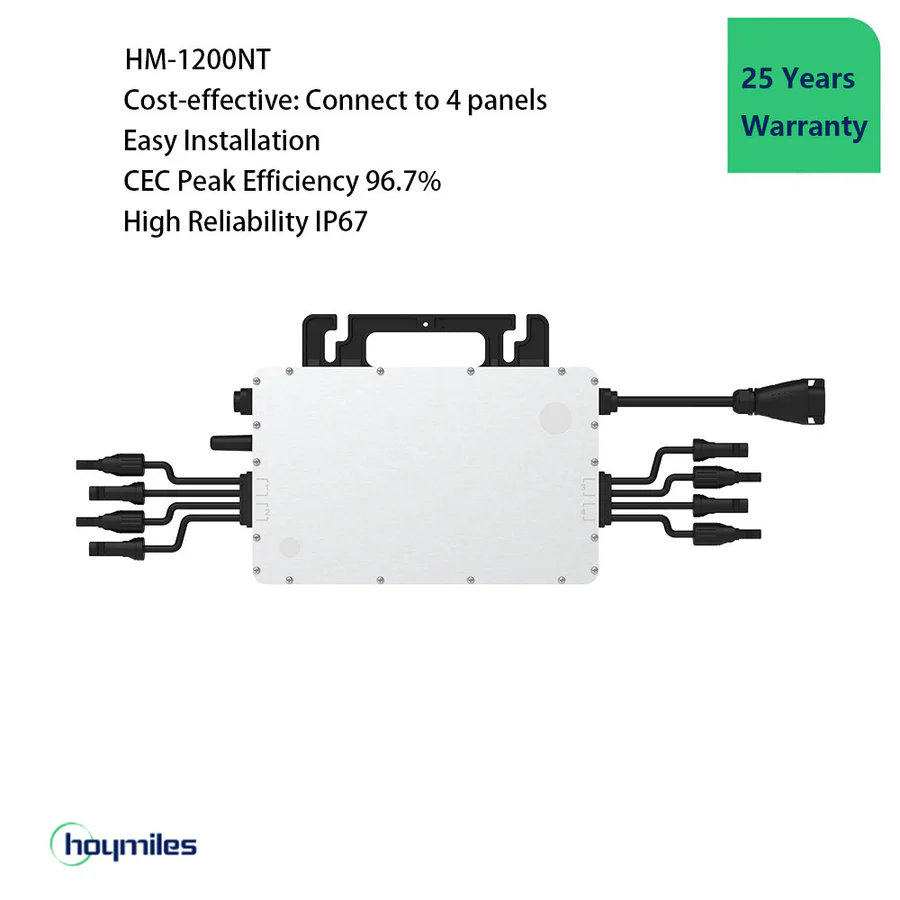

- Quad-Module Support: The Hoymiles HM-1200-NT connects up to four solar panels (240W to 405W+), making it a highly cost-effective Hoymiles microinverter price option per watt.
- Advanced Efficiency: Features a 96.7% CEC peak efficiency and 99.8% nominal MPPT efficiency to ensure maximum energy harvest from every panel.
- Grid-Tie Intelligence: Built with Reactive Power Control and fully compliant with CA Rule 21 and U.S. NEC-2017/2020 rapid shutdown requirements.
- Plug and Play Installation: The HM 1200 series is designed for easy "plug and play" mounting, significantly reducing labor time on the roof.
- Enhanced Communication: Includes an external antenna for more robust and stable data transmission to your DTU monitoring system.
- Industrial Durability: Protected by a NEMA 6 (IP67) enclosure with 6000V surge protection, ensuring the Hoymiles 1200W system thrives in extreme weather.
-

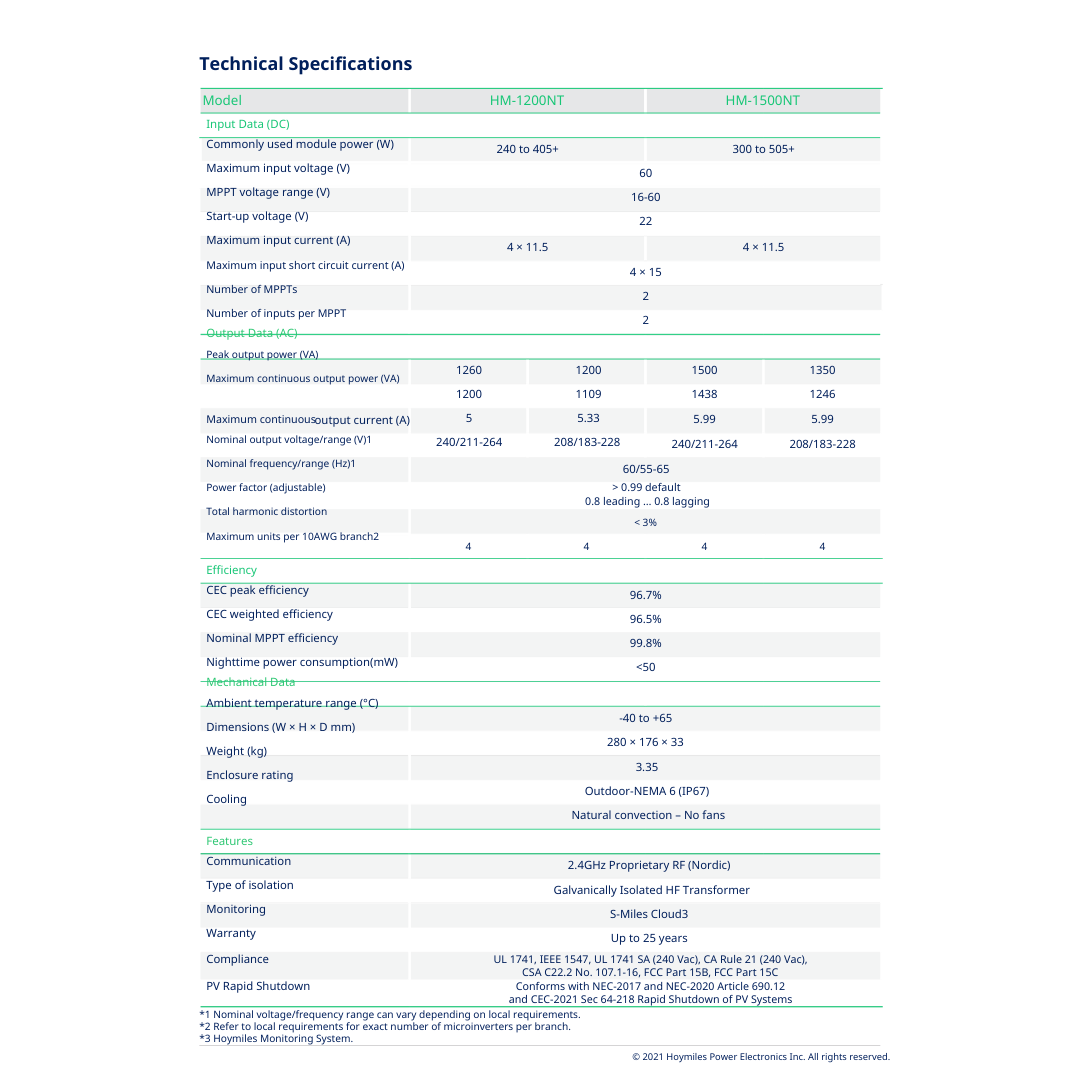

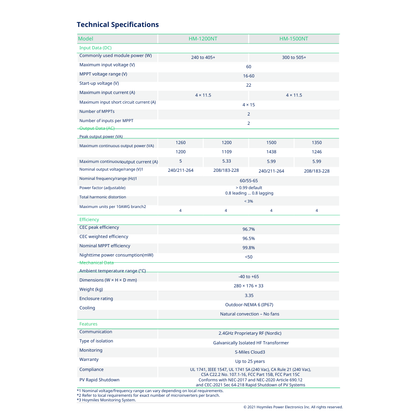

Technical Specifications
- Commonly used module power (W): 240 to 405+
- Maximum input voltage (V): 60
- MPPT voltage range (V): 16-60
- Start-up voltage (V): 22
- Maximum input current (A): 4 × 11.5
- Maximum input short circuit current (A): 4 × 15
- Number of MPPTs: 2
- Number of inputs per MPPT: 2
- CEC peak efficiency: 96.7%
- CEC weighted efficiency: 96.5%
- Nominal MPPT efficiency: 99.8%
- Nighttime power consumption(mW) <50
- Ambient temperature range (°C): -40 to +65
- Dimensions (W × H × D mm) 280 × 176 × 33
- Weight (kg) 3.35
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
