Description

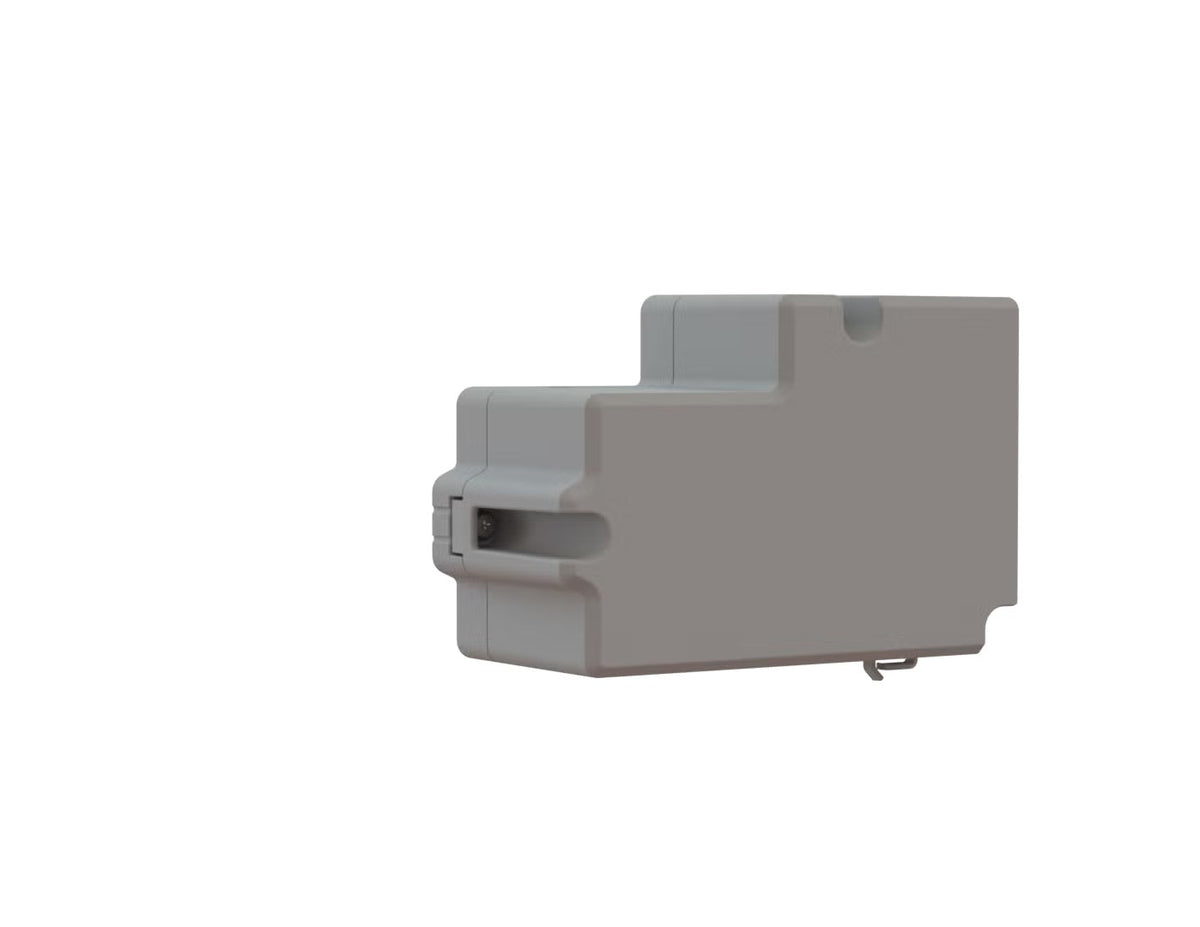

Enphase Power Supply Board with Capacitors
The Enphase X-IQ-NA-PSBECAP-R6 is a backup power supply circuit board made for Enphase IQ Combiner 6C boxes in solar-only systems. It stores backup electricity in built-in capacitors to keep your system's communication box running smoothly during brief power dips or quick grid flickers. Adding this internal power supply board prevents system restarts and helps your system follow IEEE 2030.5 power grid rules.
This circuit board holds 10 mF of electrical capacitance to bridge short power losses in seconds. It takes in 24 VDC power from your system and sends out a steady 24 VDC stream to protect internal electronics. The kit comes with one ready-to-install power board that fits directly inside your combiner box to keep your energy monitoring online.
Technical Specification:
- Manufacturer Part#: X-IQ-NA-PSBECAP-R6
- Manufacturer: Enphase Energy
- Output voltage: 24V DC
- Input voltage: 24V DC
- Capacitance: 10 mF
- What's in the Box: 1 x Power supply board with capacitors
-
