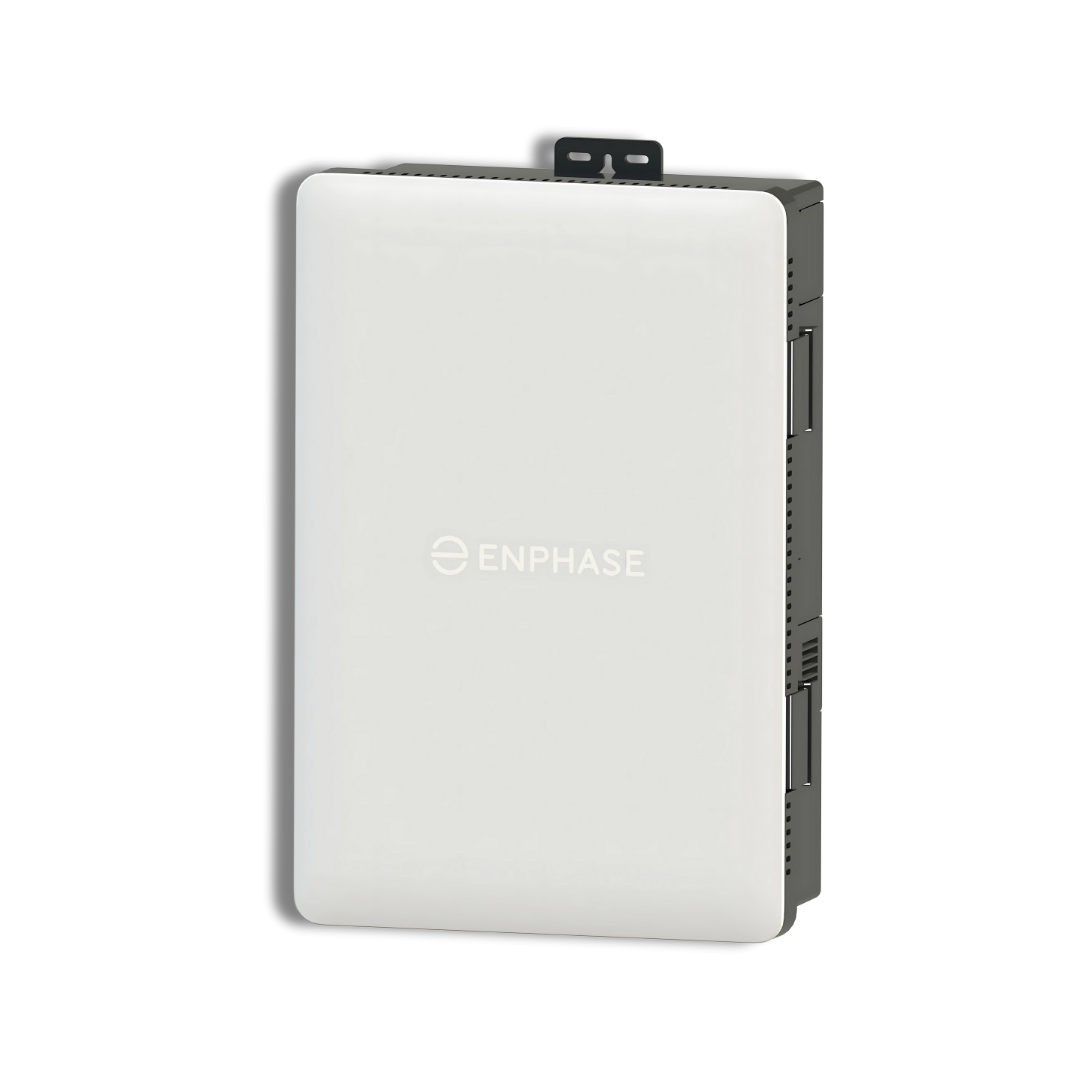

Enphase EN-X-IQ-AM1-240-6C IQ Combiner 6C All-in-one Electrical Solution

The IQ Combiner 6C has an integrated gateway and breaker spaces for IQ PV, IQ Battery, IQ EV charger, and controlled loads. It has integrated CTs for PV and Battery metering and a cell modem (CELLMODEM-07-NA) with a 5-year data pack.

Manufacturer Part Number: X-IQ-AM1-240-6C

Features

• Integrated combiner controller board (CCB) and IQ Gateway
• Includes Enphase Mobile Connect (CELLMODEM-07-NA).
• Supports flexible networking: Wi-Fi, Ethernet, or cellular
• Integrated revenue-grade production and storage metering. Consumption/load/third-party PV monitoring and EV charger monitoring is also supported.

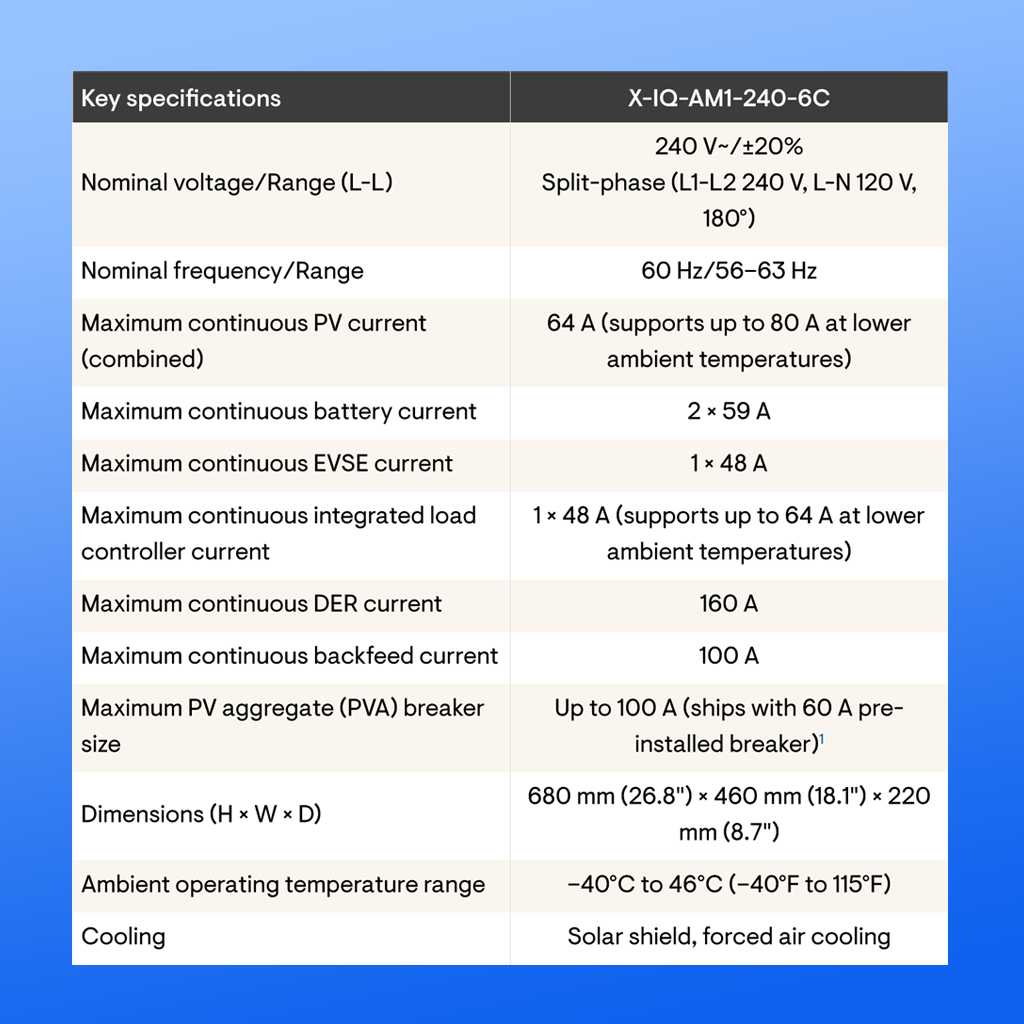

Technical Specifications

• Nominal voltage/Range (L-L): 240 V~ / ±20% Split-phase (L1-L2 240 V, L-N 120 V, 180°)
• Nominal frequency/Range: 60 Hz / 56–63 Hz
• Maximum continuous PV current (combined): 64 A (supports up to 80 A at lower ambient temperatures)
• Maximum continuous battery current: 2 × 59 A
• Maximum continuous EVSE current: 1 × 48 A
• Maximum continuous integrated load controller current: 1 × 48 A (supports up to 64 A at lower ambient temperatures)
• Maximum continuous DER current: 160 A
• Maximum continuous backfeed current: 100 A
• Maximum PV aggregate (PVA) breaker size: Up to 100 A (ships with 60 A pre-installed breaker)
• Dimensions (H × W × D): 680 mm (26.8") × 460 mm (18.1") × 220 mm (8.7")
• Ambient operating temperature range: –40°C to 46°C (–40°F to 115°F)
• Cooling: Solar shield, forced air cooling
