Description

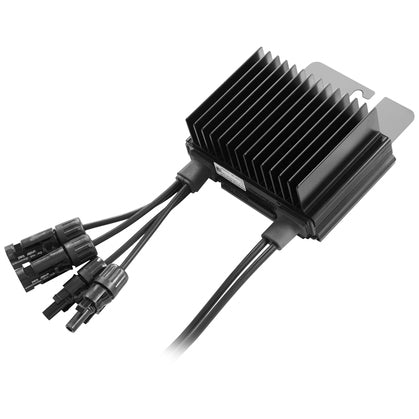

SolarEdge P860-LONG 860W 2:1 Commercial Power Optimizer
Reduce hardware costs and speed up installation on your commercial solar arrays. The SolarEdge P860-LONG is a high-efficiency 2-to-1 DC power optimizer designed to connect two 72-cell solar panels to a single unit. By continuously tracking the maximum power point of both modules, it ensures your system generates the highest possible energy yield while cutting your total optimizer count in half.
This specific "LONG" version features extended input and output cables. This added length gives installers maximum flexibility for complex commercial roof layouts, making it incredibly easy to wire solar panels that are mounted in landscape orientation or separated by larger gaps. If your panels are mounted tightly side-by-side in a standard portrait layout, the SolarEdge P860 P-Series 860W Power Optimizer provides the same 2-to-1 efficiency with standard cable lengths.
Specifications:
- Manufacturer: SolarEdge
- Model: P860-LONG
- Type: 2:1 Commercial Power Optimizer
- Rated Power: 860 W
- Maximum Input Voltage: 60 VDC
- Maximum Short-Circuit Current: 22 A
- Efficiency: 99.5% maximum
- Dimensions: 129 × 168 × 59 mm
- Weight: 2.34 lbs / 1.064 kg
- Operating Temperature: −40°C to +85°C
- Application: 2 × 72-cell solar modules
- Compliance: IEC 62109-1, UL 1741; PVRSS compliant
-
Resources

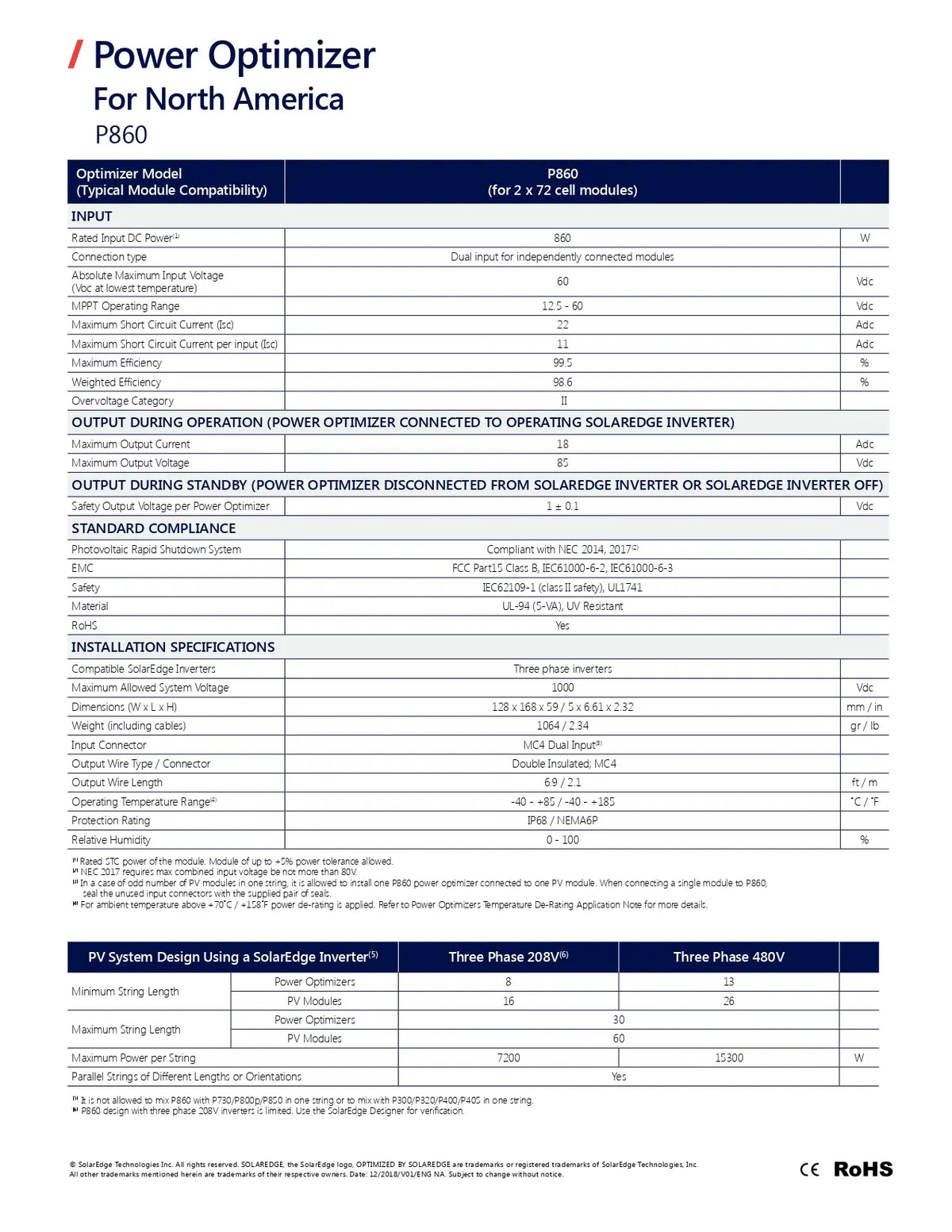

Datasheet
✔️ Download Datasheet
Quick Installation Guide
✔️ Download Quick Installation Guide
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
