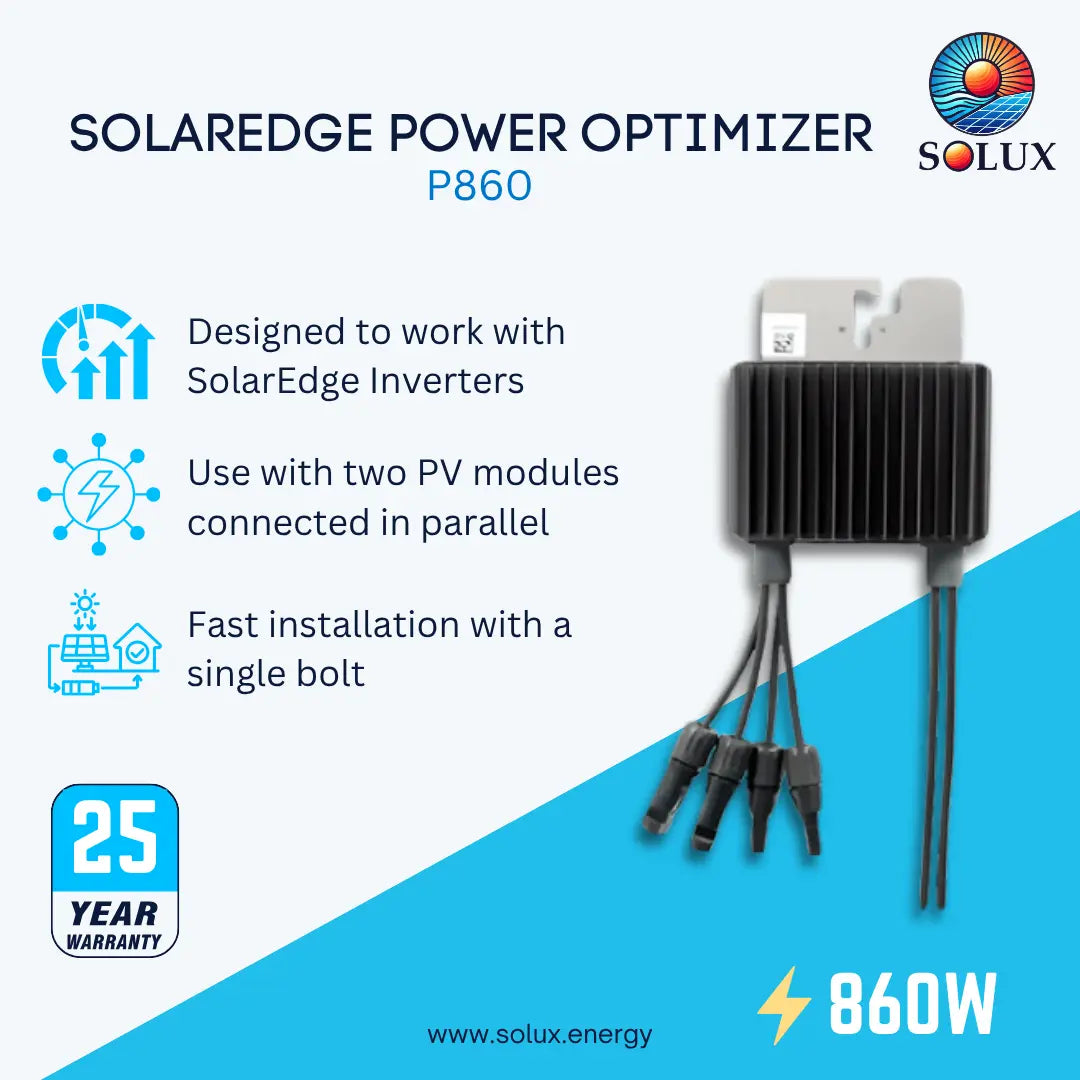

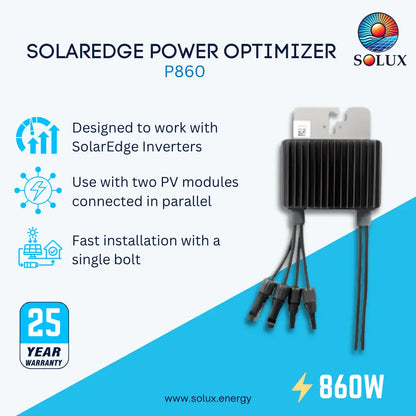

  • Solaredge Power Optimizer P860 by Solux, a 860W black metal power module with multiple output cables, shown on a light blue and white background with product features and a 25-year warranty badge.

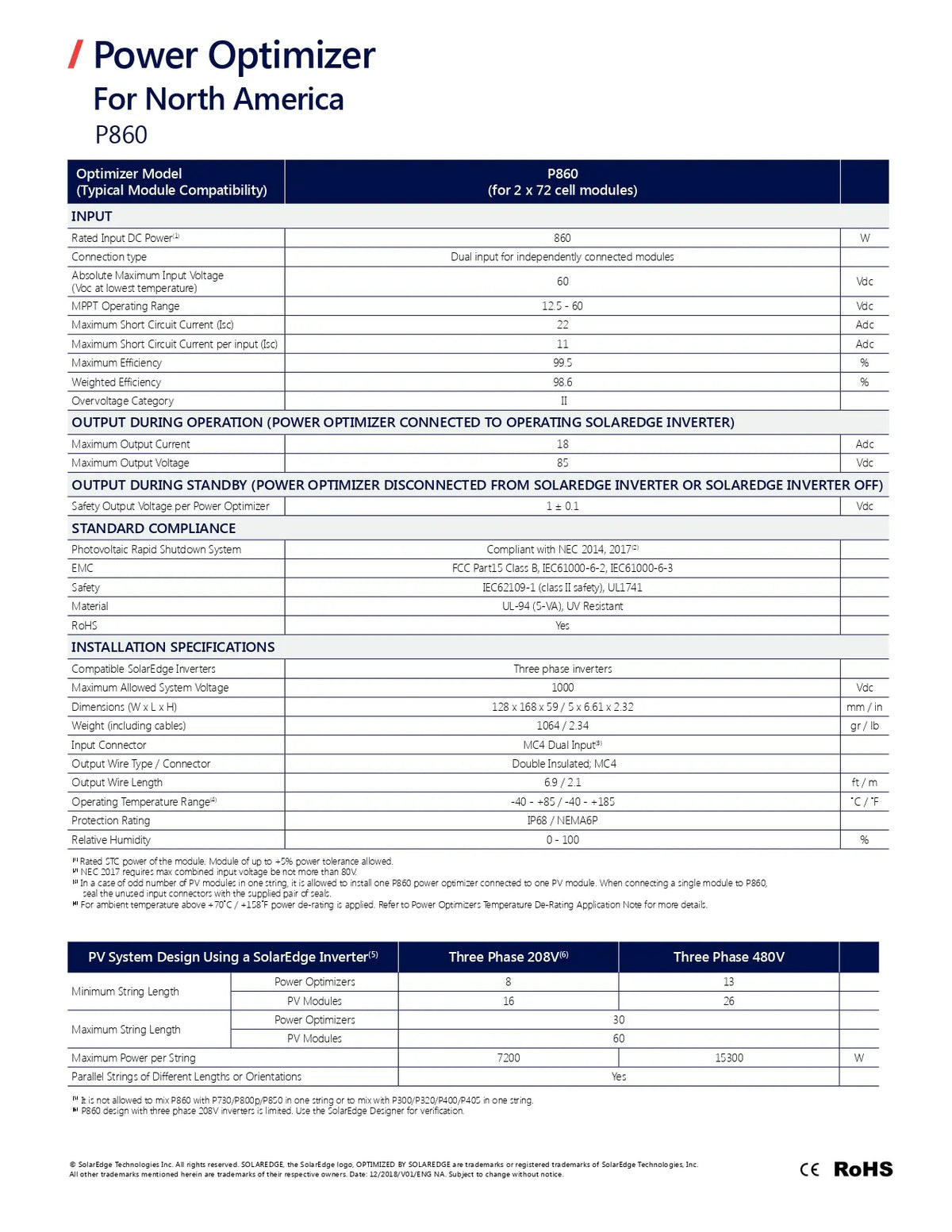

  • A technical specification sheet for the Power Optimizer for North America P860, showing compatibility tables, input/output specifications, installation specifications, and RoHS compliance information.

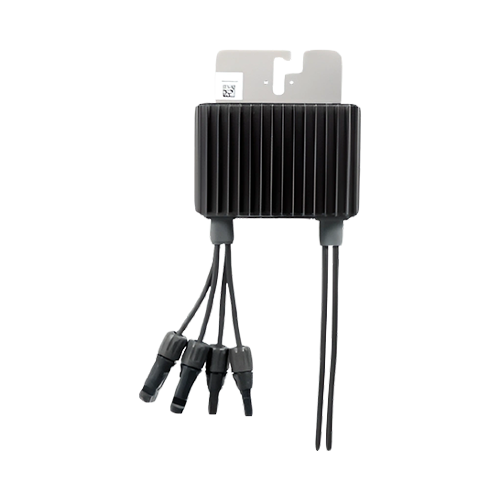

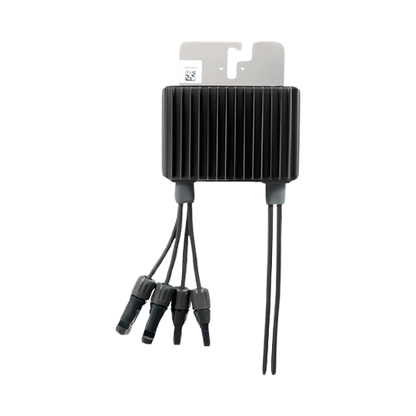

  • A black rectangular electronic module with a ribbed metal heat sink, a gray mounting bracket attached at the top, and four black cables extending from the bottom, shown on a plain white background.
1 3

SolarEdge P860 P-Series 860Watt 60VDC Power Optimizer For 2 x 72-Cell Modules

$105.89 USD
$105.89 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ 2-to-1 Module Optimization: Features dual input leads with independent or series inputs to optimize output performance for two high-wattage PV modules simultaneously, significantly lowering overall balance-of-system (BOS) hardware costs and labor time.
✔️ Advanced Thermal & Safety Protection (Sense Connect): Includes SolarEdge SenseConnect technology that actively monitors connector temperatures to detect high thermal conditions or potential arc faults before thermal events occur, automatically shutting down power generation.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

  • Description

    SolarEdge P860 P-Series 860W Dual-Module Commercial Power Optimizer

    The SolarEdge P860 Power Optimizer is a high-efficiency DC-to-DC commercial optimizer engineered to pair specifically with three-phase SolarEdge inverters. Designed for commercial rooftops and ground-mount arrays, this dual-module unit connects two 72-cell solar PV modules in series to optimize energy production and mitigate panel mismatch losses.

    By providing module-level Maximum Power Point Tracking (MPPT), the P860 increases system energy yields by up to 25% across complex commercial installations. Featuring a single-bolt mounting system for rapid installation, the unit incorporates automated SafeDC module-level voltage shutdown to ensure installer and firefighter safety during utility grid outages.

    Key Features and Specification

    Simple, fast installation and fully compatible with thousands of different inverter models. Upgrade your home with a reliable solar optimizer for efficient, dependable solar power.

    • Specifically designed to work with SolarEdge inverters
    • Up to 25% more energy
    • Fast installation with a single bolt
    • Manufacturer: SolarEdge
    • Rated DC Input Power: 860 Watts
    • Compatibility: SolarEdge Three Phase Inverter
    • Maximum Allowed System Voltage: 1000 Vdc
    • Dimensions (W*L*H): 128 x 168 x 59 / 5 x 6.61 x 2.32 mm / in
    • Weight (including cables): 1064 / 2.34 gr / lb

  • Resources

    ✔️ Download P860 Datasheet.pdf

  • Installation

    No installation guide file resource available. Email support@solux.energy for file request.


Download Spec Sheet of SolarEdge P-Series Optimizer
