Generac PWRmicro Smart Combiner Box
The Generac PWRmicro Smart Combiner (APKEAC100) is an advanced AC combiner box designed to consolidate, protect, and monitor Generac PWRmicro Solar Microinverter arrays. Rated for 120/240 VAC or 120/208 VAC single-phase service with a 125A busbar, this unit manages up to 100A of continuous PV output current across up to five 2-pole Eaton BR branch circuit breakers.
Equipped with a pre-installed 200A solid-core production CT offering revenue-grade energy metering (0.5% accuracy), the combiner integrates built-in Wi-Fi, Ethernet, and cellular communications for remote diagnostics and firmware updates. Encased in a NEMA Type 3R outdoor enclosure operating from -40 °F to 131 °F (-40 °C to 55 °C), it supports up to 28 PWRmicro PM-820 units at 240 VAC and integrates seamlessly with PWRcell storage via CAN bus connections.

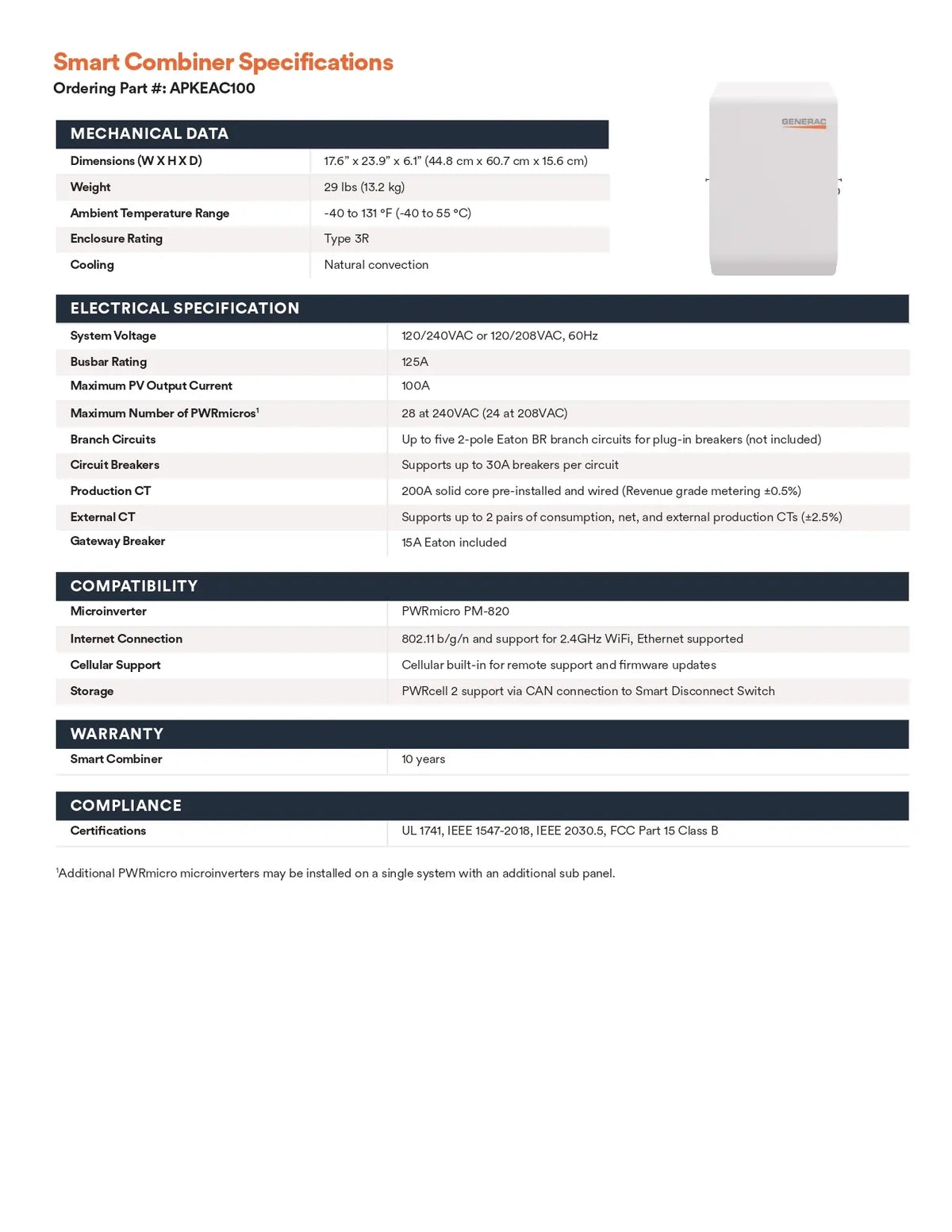

Technical Specification of Generac Smart Combiner Box
Mechanical Data:
- Dimensions (W X H X D): 17.6÷ x 23.9÷ x 6.1÷ (44.8 cm x 60.7 cm x 15.6 cm)
- Weight: 29 lbs (13.2 kg)
- Ambient Temperature Range: -40 to 131 ?F (-40 to 55 ?C)
- Enclosure Rating: Type 3R
- Cooling: Natural convection
Electrical Specifications:
- System Voltage: 120/240VAC or 120/208VAC, 60Hz
- Busbar Rating: 125A
- Maximum PV Output Current: 100A
- Maximum Number of PWRmicros1: 28 at 240VAC (24 at 208VAC)
- Branch Circuits: Up to five 2-pole Eaton BR branch circuits for plug-in breakers (not included)
- Circuit Breakers: Supports up to 30A breakers per circuit
- Production CT: 200A solid core pre-installed and wired (Revenue grade metering ?0.5%)
- External CT: Supports up to 2 pairs of consumption, net, and external production CTs (?2.5%)
- Gateway Breaker: 15A Eaton included
Compatibility:
- Microinverter PWRmicro PM-820
- Internet Connection 802.11 b/g/n and support for 2.4GHz WiFi, Ethernet supported
- Cellular Support Cellular built-in for remote support and firmware updates
- Storage PWRcell 2 support via CAN connection to Smart Disconnect Switch
-
