Generac APKEPM820 PM-820, 820W Dual Input Micro Inverter

Generac PWRmicro PM-820 Dual-Input 820W Microinverter

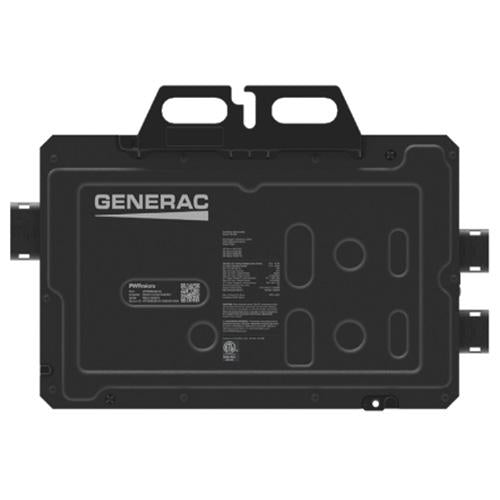

The Generac PWRmicro PM-820 (APKEPM820) is a high-efficiency 820W dual-input microinverter engineered for residential photovoltaic installations. Utilizing a 2:1 dual-module architecture, this microinverter connects directly to two high-powered PV modules up to 500W each, effectively halving the total number of microinverters required per array.

Equipped with dual independent Maximum Power Point Tracking (MPPT) channels, the unit maximizes total energy harvest across varied shading and roof orientations with 97% CEC efficiency. Built to withstand extreme environmental temperature and humidity conditions, the PM-820 features Field Pro nighttime commissioning and instant device discovery, backed by a 25-year manufacturer warranty with 5-year labor coverage.

Key Features of Generac PWRmicro Microinverter

Powerful

• 820W reduces clipping with panels up to 500W per input
• Individually optimized DC inputs maximize energy and increase savings opportunities
• 97% CEC efficiency increases power delivered to the home

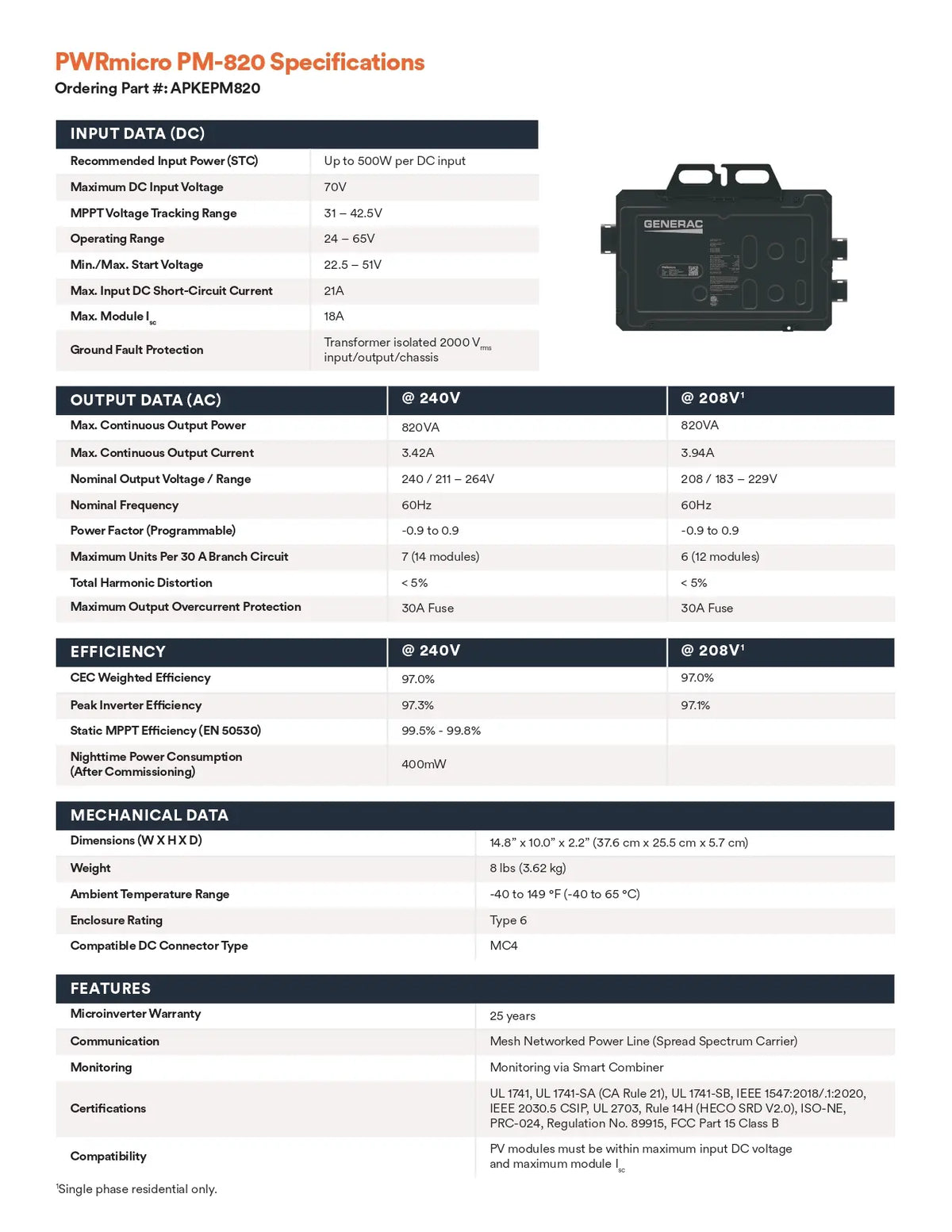

• Maximum Input DC Voltage: 70V
• MPPT Voltage Range: 31 - 42.5V
• Maximum Module Isc: 18A
• PWRmicro Warranty: Includes Industry-leading 5-Year Labor Coverage

Reliable

• Backed by a 25-year warranty from a company you can trust
• Rigorously tested for extreme temperature variations, sustained
• high-humidity environments and extensive power cycling

Installer-Friendly

• Nighttime commissioning with Field Pro helps you finish the install in one day
• Instant microinverter discovery reduces commissioning time
• 2:1 architecture requires half as many microinverters
