Description

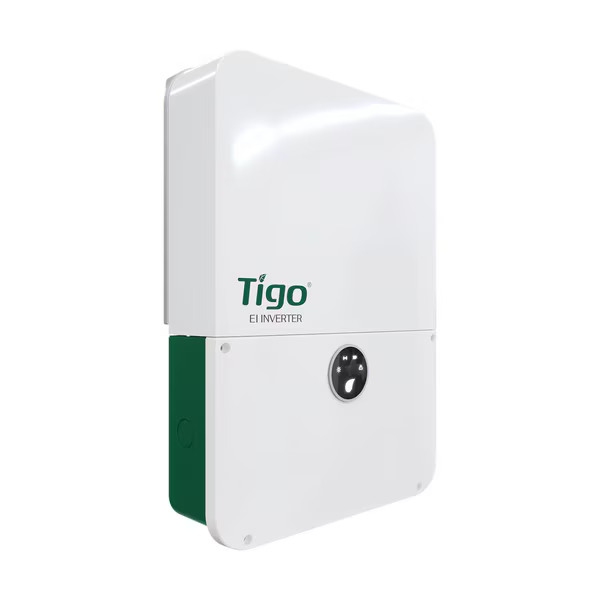

Tigo 7.6kw Energy Storage Hybrid Inverter
The Tigo 601-2107K6-0003 7.6k EI Residential Hybrid Inverter (Model TSI-7.6K-US) is a 7,600 W battery-based hybrid solar inverter engineered for high-efficiency residential solar installations. Operating across 208/240 VAC grid connections at 50/60 Hz, this Tigo 7.6kw energy storage hybrid inverter features 3 independent MPPT PV inputs with a 600 VDC maximum input voltage to maximize solar harvesting on complex roof configurations.
Engineered with built-in Wi-Fi and RS-485 communications, the TSI-7.6K-US supports PVRSS rapid shutdown compliance when paired with Tigo TS4-A-F/2F and TS4-A-O and TS4-A-S MLPE units. Built inside a NEMA 4X / IP65 outdoor-rated enclosure with AFCI protection and ANSI C12.20 metering accuracy, it integrates seamlessly with the Tigo EI Battery system and Tigo 200A Automatic Transfer Switch (ATS) for whole-home backup resilience.
- Manufacturer: Tigo Energy
- Model: TSI-7.6K-US
- Part Number: 601-2107K6-0003
- Type: Hybrid Inverter (Battery-Based)
- Continuous AC Power Output: 7,600 W (7.6 kW)
- Voltage: 208/240 VAC
- MPPTs: 3
- Enclosure Rating: NEMA 4X / IP65
- Built-in Wi-Fi
- Compatible with Tigo EI Battery system and 200A ATS (Automatic Transfer Switch)
-
