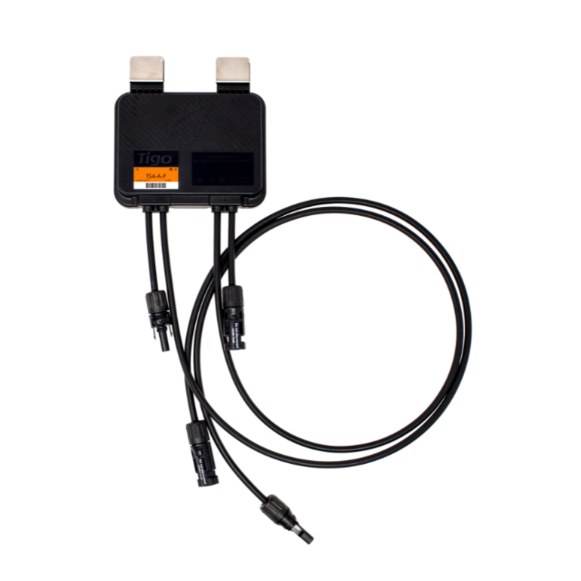

Tigo TS4-A-F 700W
The TS4-A-F (Fire Safety) is the advanced add-on rapid shutdown solution that brings smart module functionality to standard.

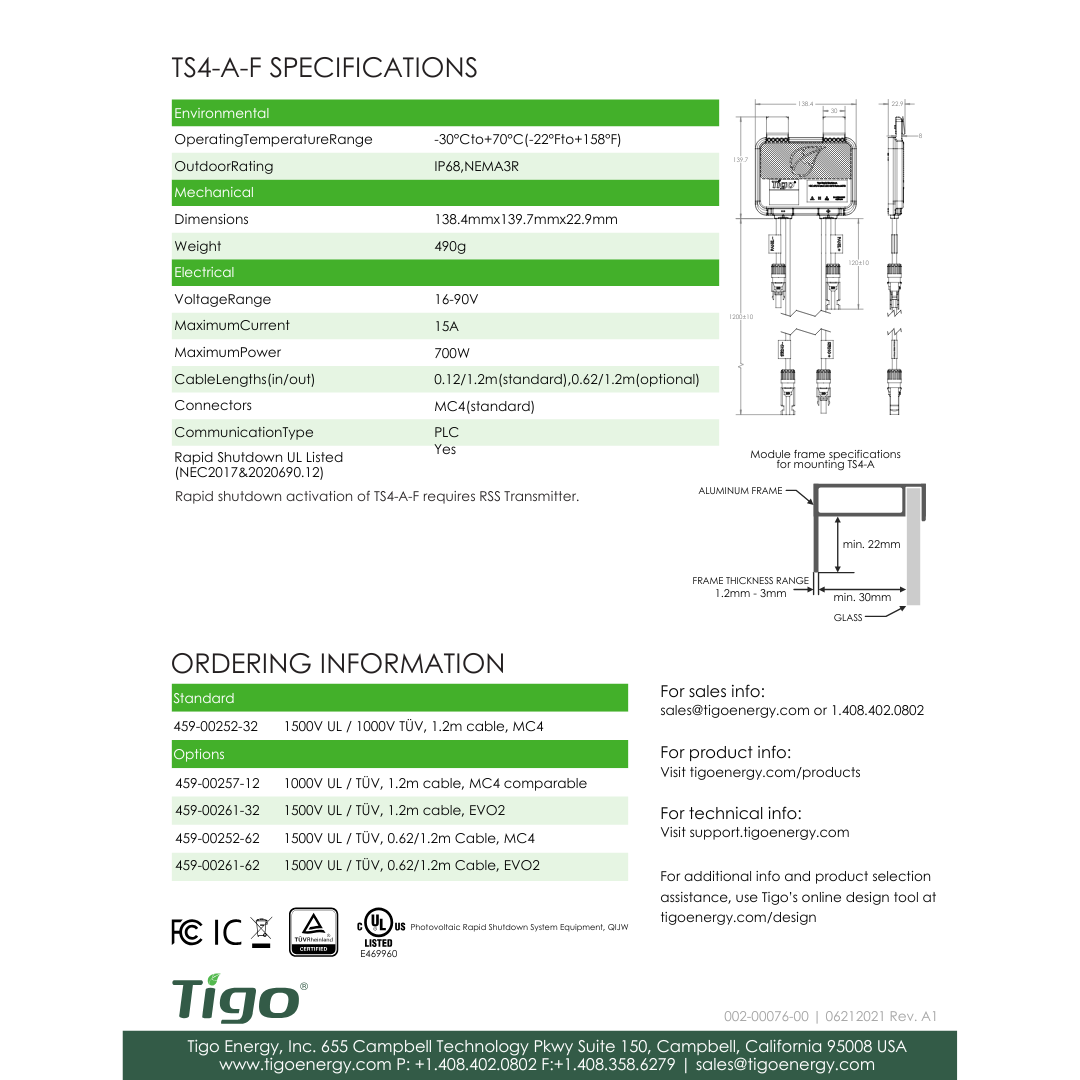

Technical Specifications
- Operating Temperature Range: -30°C to +70°C (-22°F to +158°F)
- Outdoor Rating: IP68, NEMA 3R
- Dimensions: 138.4mm x 139.7mm x 22.9mm
- Weight: 490g
- Voltage Range: 16 - 90V
- Maximum Current: 15A
- Maximum Power: 700W
- Cable Lengths (in/out): 0.12/1.2m (standard), 0.62/1.2m (optional)
- Connectors: MC4 (standard)
- Communication Type: PLC
- Rapid Shutdown UL Listed (NEC 2017 & 2020 690.12): Yes
- Rapid shutdown activation of TS4-A-F requires RSS Transmitter
-
Downloads
Datasheet
✔️ Datasheet
Quick Installation Guide
No installation guide available. Email support@solux.energy for file request.
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
