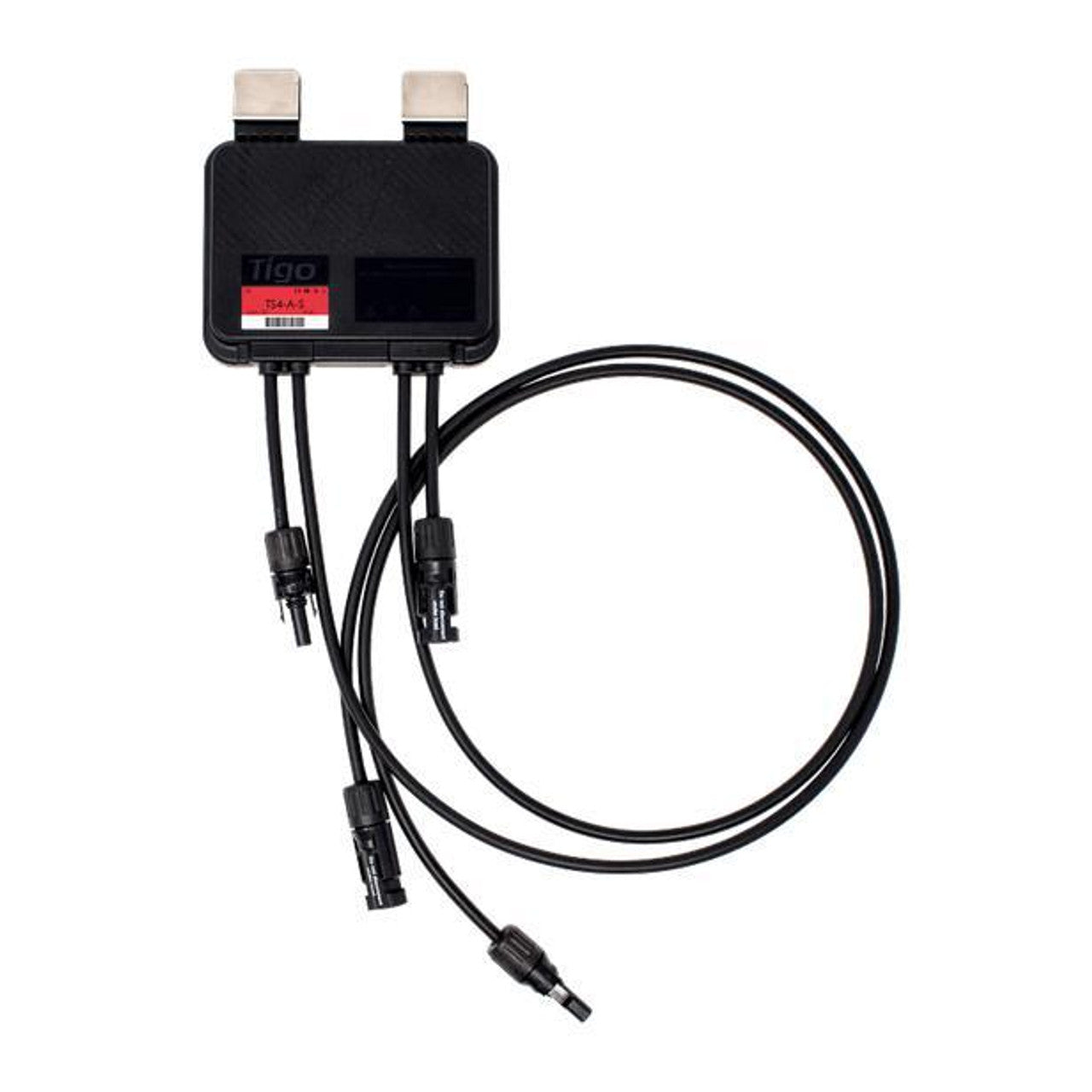

Tigo TS4-A-S Module-Level Monitoring and Rapid Shutdown Device

Tigo TS4-A-S | Monitoring & Rapid Shutdown | 20A (Isc), 700W, 1500VUL/1000VIEC, 0.12/2M, Cable, MC4

Safety is a Flex-MLPE function that enables rapid shutdown and module-level monitoring. It is UL PV Rapid Shutdown System (PVRSS) certified with leading inverters to meet NEC 2014, 2017, and 2020 rapid shutdown requirements.

Functions

• Monitoring
• Rapid Shutdown

Features and benefits

• Suitable for up to 700W solar modules
• Module-level monitoring with Tigo Energy Intelligence
• Includes rapid shutdown functionality
• Meets US NEC rapid shutdown requirements
• Works wirelessly with the TAP & CCA
• 25-year warranty

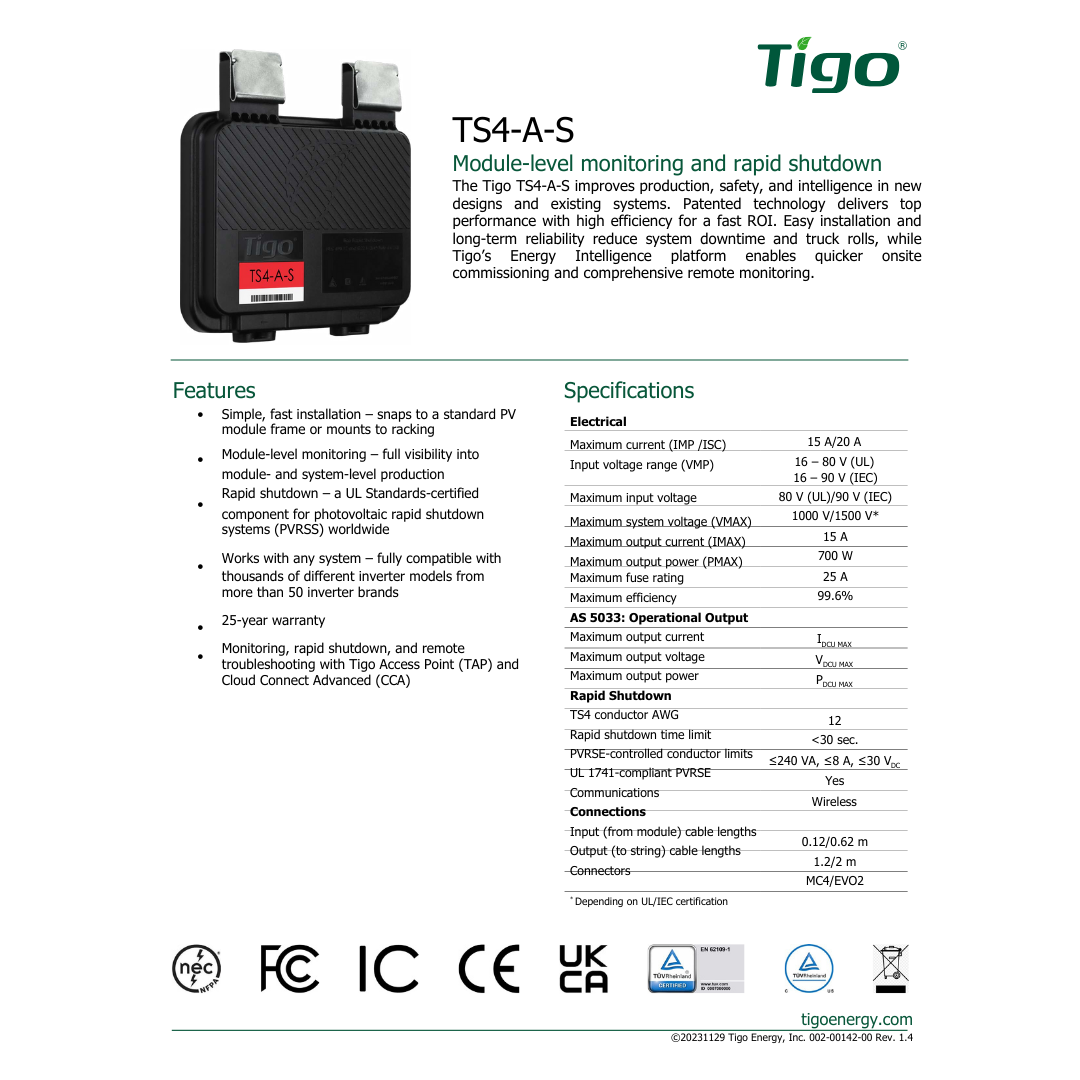

Technical Specifications

• Maximum current (IMP /ISC): 15 A/20 A
• Input voltage range (VMP): 16 – 80 V (UL) / 16 – 90 V (IEC)
• Maximum input voltage: 80 V (UL)/90 V (IEC)
• Maximum system voltage (VMAX): 1000 V/1500 V*
• Maximum output current (IMAX): 15 A
• Maximum output power (PMAX): 700 W
• Maximum fuse rating: 25 A
• Maximum output current: IDCU MAX
• Maximum output voltage: VDCU MAX
• Maximum output power: PDCU MAX
• TS4 conductor AWG: 12
• Rapid shutdown time limit: <30 sec.
• PVRSE-controlled conductor limits: ≤240 VA, ≤8 A, ≤30 VDC
• UL 1741-compliant PVRSE: Yes
• Communications: Wireless
• Connectors: MC4/EVO2
• Dimensions (H/W/D): 139.7 x 138.4 x 22.9 mm / (5.4 x 5.5 x 0.9 in.)
• Weight: 490 g / (1.1 lb.)
• Configuration: 1 module per TS4
• Required: CCA + TAP
