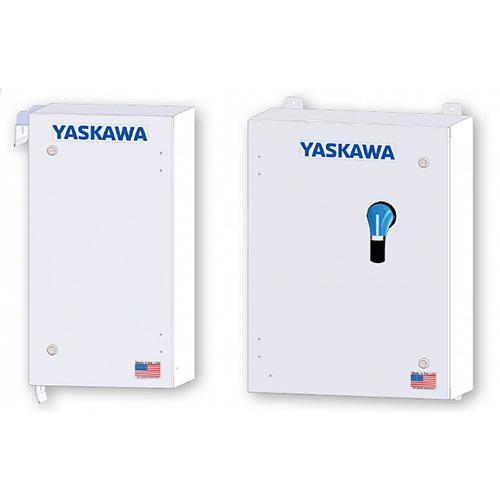

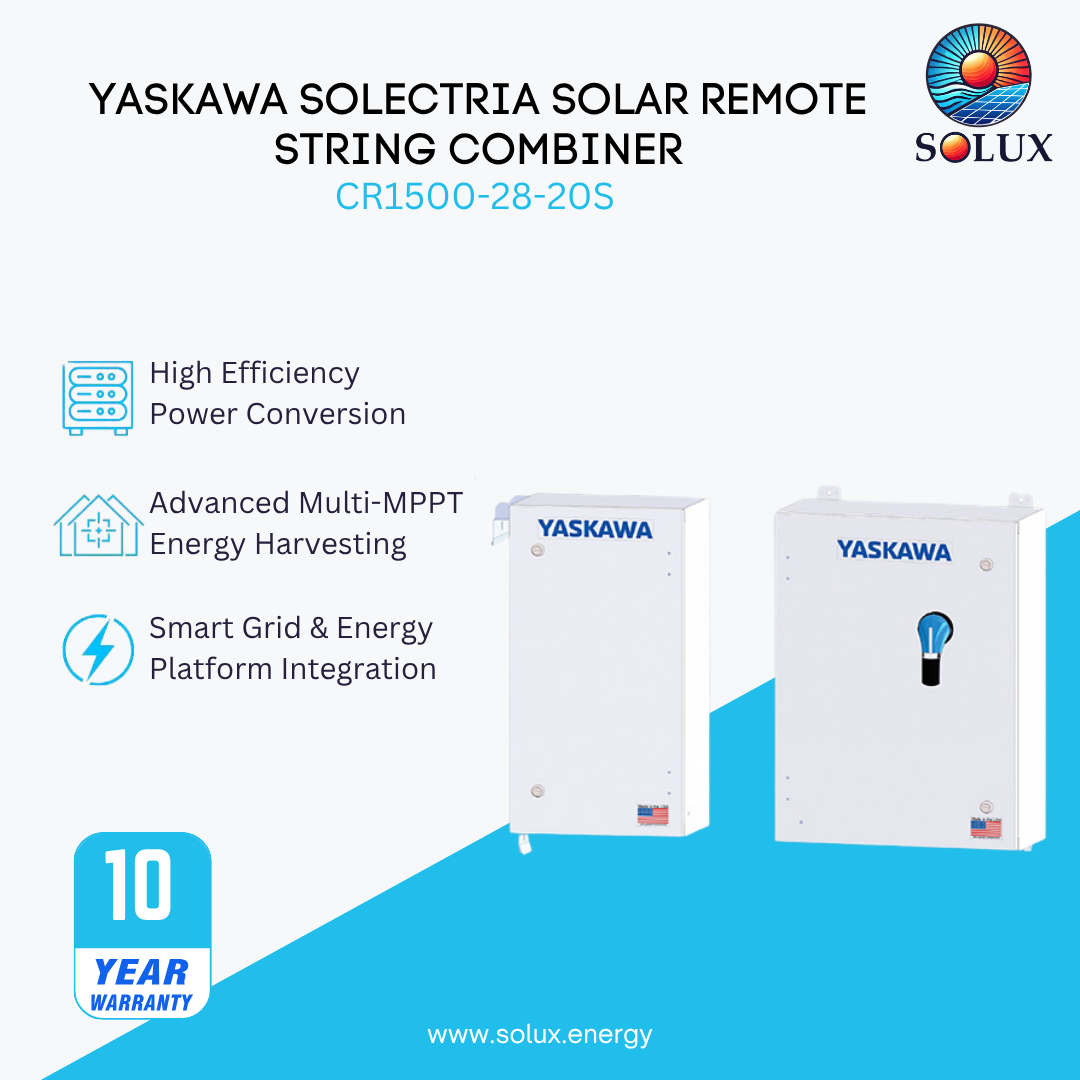

Yaskawa Solectria Solar, CR1500-28-20S, Remote String Combiner, 1500VDC, 28 Fuse Positions (20A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4, DC surge protection.

Yaskawa Solectria Solar, CR1500-28-20S, Remote String Combiner, 1500VDC, 28 Fuse Positions (20A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4, DC surge protection.

  The Yaskawa Solectria CR1500-28-20S is a 1500 VDC remote solar PV string combiner box designed to collect and combine electrical output from multiple solar panel strings before routing the power to a compatible central inverter. It includes 28 fuse positions, factory-installed 20 A fuses, a DC disconnect switch, and DC surge protection to help protect solar power equipment from electrical surges. Its powder-coated aluminum enclosure is designed for outdoor use.

Specifications:

• Manufacturer Part Number: CR1500-28-20S
• Product Type: Remote PV String Combiner Box

Mechanical:

• Maximum Voltage: 1500 VDC
• Fuse Positions: 28
• Fuse Rating: 20 A per fuse
• Enclosure Material: Powder-coated aluminum
• Enclosure Rating: NEMA Type 4
• Surge Protection: Integrated DC surge protection
• Dimensions (H × W × D): 30 × 24 × 8 inches (762 × 610 × 203 mm)
• Weight: 85 lbs (38.6 kg)
