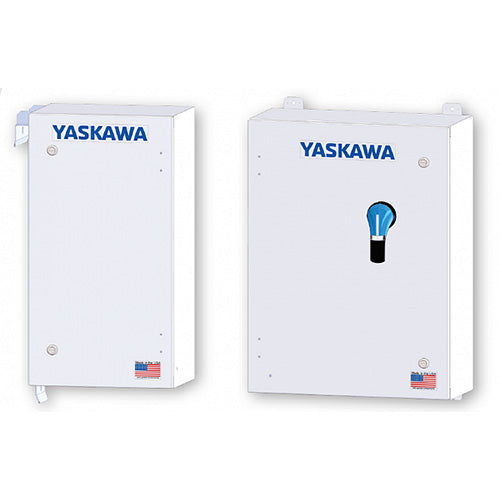

Yaskawa Solectria Solar, CR1500-24P-20S, Remote String Combiner, 1500VDC, 24 Fuse Positions, Positive Polarity only (20A Fuses Included), Powder Coated Steel Enclosure, NEMA 4, DC surge protection

Yaskawa Solectria Solar, CR1500-24P-20S, Remote String Combiner, 1500VDC, 24 Fuse Positions, Positive Polarity only (20A Fuses Included), Powder Coated Steel Enclosure, NEMA 4, DC surge protection

The CR1500-24P-20S is a 1,500 VDC remote PV string combiner designed to consolidate multiple solar panel string outputs into a single DC output for connection to a solar inverter. It features 24 fused PV input circuits with 20 A protection and integrated DC surge protection, providing overcurrent and surge protection for commercial and utility-scale photovoltaic installations.

Specifications:

• Manufacturer Part Number: CR1500-24P-20S
• Product Type: DC Combiner / Remote PV Combiner

Mechanical:

• Enclosure Material: Polyester powder-coated steel
• Enclosure Rating: Type 4
• Mounting Orientation: Vertical, horizontal, or angled
• Mounting Hardware: Four mounting tabs; 5/16-inch fasteners recommended
• Minimum Clearance Above Grade: 24 inchs when mounted outdoors
• Operating Temperature: −40°F to +140°F (−40°C to +60°C)
• Enclosure Dimensions (H x W x D): 30.0 × 24.0 × 8.0 in (762 × 610 × 203 mm)
• Product Weight: 85 lb (Approximately)
