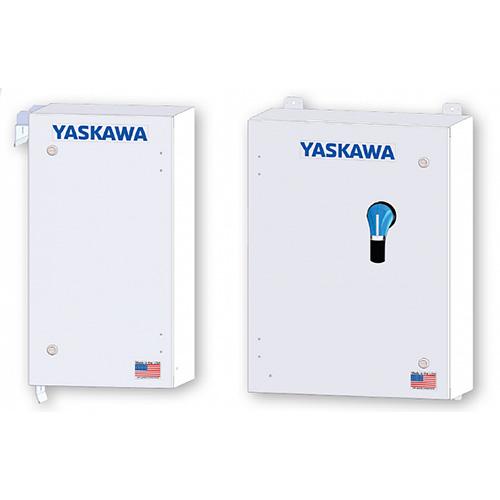

Yaskawa Solectria Solar, CR1500-20-20, Remote String Combiner, 1500VDC, 20 Fuse Positions (20A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4

Yaskawa Solectria Solar, CR1500-20P-25F-400S, Yaskawa Solectria Solar, CR1500-20-20, Remote String Combiner, 1500VDC, 20 Fuse Positions (20A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4

The CR1500-20-20 is a 1500 VDC remote solar PV string combiner designed for use with SOLECTRIA XGI 1500 inverters. It combines multiple PV source circuits and provides individual fuse protection before power is delivered to the inverter.

Specifications:

• Manufacturer Part Number: CR1500-20-20

Mechanical:

• Fused Positions: 20
• Fuse Rating: 20A
• Fuse Configuration: Positive and negative polarity fused
• DC Disconnect: 2-pole
• Disconnect Rating: 250A
• Maximum Continuous Current: 200A
• Input Wire Compatibility: 14–4 AWG PV-rated copper
• Output Connection: Compression terminal, 1 or 2 conductors, 1/0–500 kcmil
• Enclosure: Polyester powder-coated aluminum
• Enclosure Rating: NEMA Type 4
• Operating Temperature: -40°C to +50°C
• Mounting: Vertical, horizontal, or angled
• Certification: UL 1741 / Intertek
• Dimensions: 29.5 × 18.1 × 11 in (750 × 460 × 280 mm)
