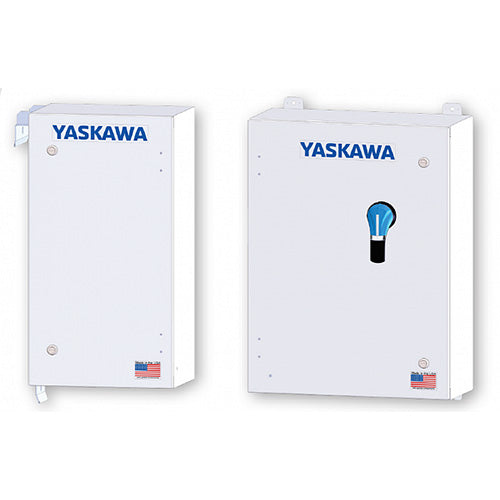

Yaskawa Solectria Solar, CA1500-20-25S, Attachable String Combiner, 1500VDC, Exclusively for XGI 1500, 20 Fuse Positions (25A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4X, with DC surge protection.

Yaskawa Solectria Solar, CA1500-20-25S, Attachable String Combiner, 1500VDC, Exclusively for XGI 1500, 20 Fuse Positions (25A Fuses Included), Powder Coated Aluminum Enclosure, NEMA 4X, with DC surge protection.

The CA1500-20-25S combines multiple DC PV circuits and provides overcurrent protection and DC isolation between the PV array and the inverter. It is designed for high-voltage PV applications and incorporates a 1,500 VDC-rated enclosure, 20 input circuits, 25 A fusing, and surge protection. The unit is intended to provide a centralized, protected interface between solar PV strings and compatible high-voltage solar inverters.

Specifications:

• Manufacturer Part Number: CA1500-20-25S
• Product Type: AC PV Combiner / AC Combiner Box

Mechanical:

• Enclosure material: Powder-coated aluminum
• Enclosure rating: NEMA 4X
• Mounting style: Attachable/direct-mount design for XGI 1500 inverters
• Construction: Outdoor-rated aluminum enclosure
• Fuse positions: 20
• Fuse type: 25 A PV fuses
• Surge protection: Integrated DC surge protection
• Cable termination: Compression-terminal connection provisions
• Terminal rating: 90°C
• Application: Outdoor commercial/utility-scale PV installations
• Design: Compact attachable configuration intended to be installed directly with the inverter rather than as a separate remote combiner
• Estimated Shipping Weight: 70–80 lb (32–36 kg)
• Dimensions (H x W x D): 30 × 24 × 8 in (762 mm x 610 mm x 203 mm

• Warranty: Standard warranty of 5 years
