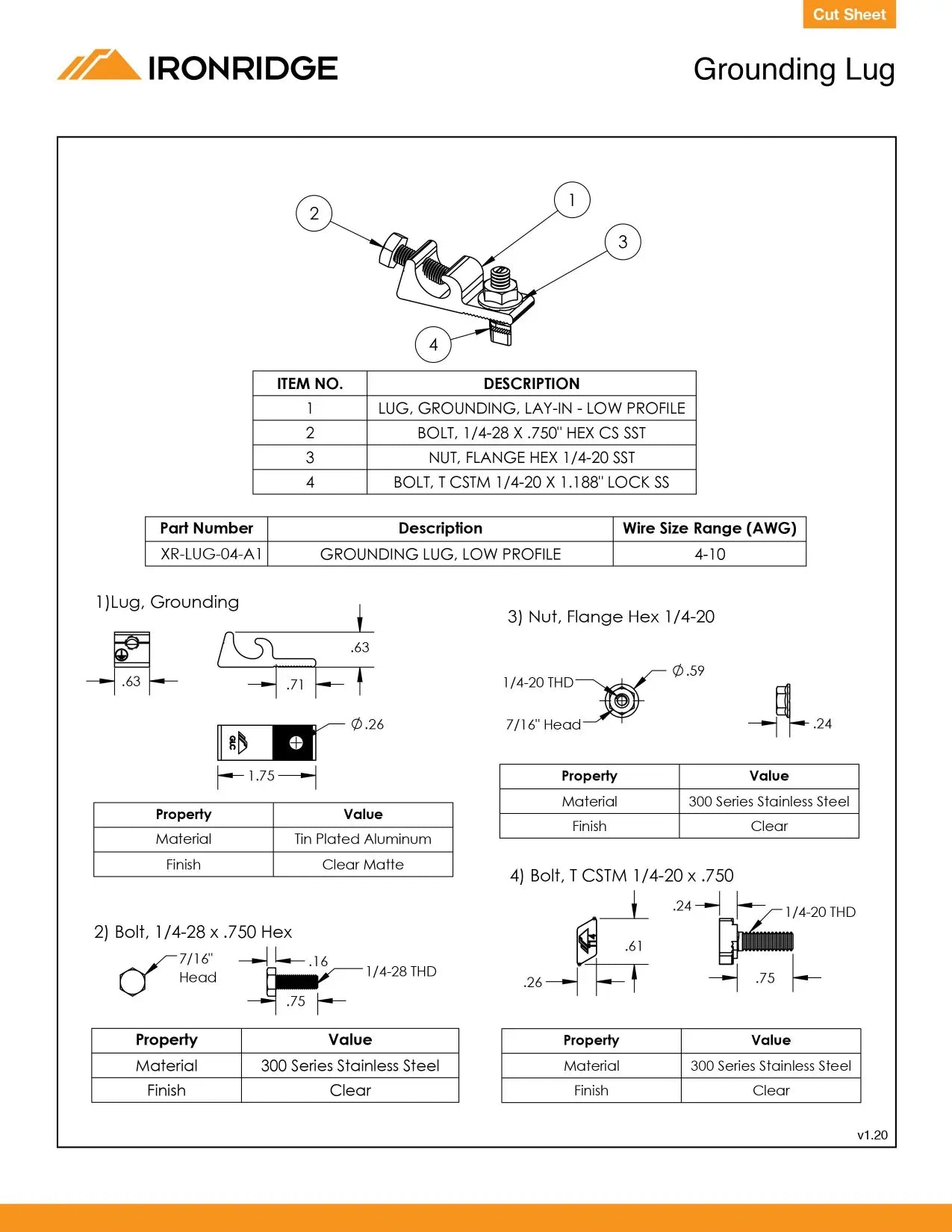

  • Technical specification sheet for an Ironridge Grounding Lug, showing a numbered exploded diagram, part list table, and dimensional drawings with material and finish specifications.

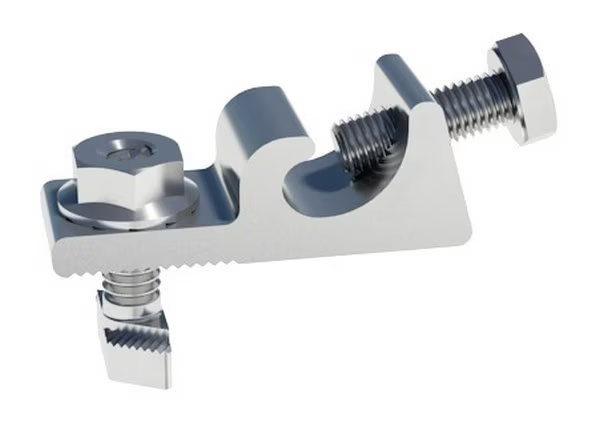

  • A polished stainless steel mechanical clamp or bracket with threaded adjustment screws and a hex nut, shown on a plain white background.
1 3

IronRidge XR-LUG-04-A1 Low Profile Grounding Lug

$12.52 USD
$12.52 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Row-Level Array Grounding: Secures to any point along the rail channel to establish a continuous equipment grounding conductor (EGC) tie-in point for an entire row of PV modules.
✔️ Low-Profile Form Factor: Compact design allows easy clearance underneath PV module frames and skirt edge trims, maintaining a clean array appearance.
✔️ Drop-In T-Bolt Hardware: Features a specialized 1/4" T-bolt that drops directly into the top channel of XR rails at any location without requiring end-of-rail sliding or special tools.
✔️ Lay-In Wire Slot: Designed with a side lay-in slot so installers can drop continuous copper ground wire directly into the lug without cutting or threading the wire through a closed hole.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge Low Profile Grounding Lug (XR-LUG-04-A1)

    The IronRidge Low Profile Grounding Lug (MPN: XR-LUG-04-A1) connects equipment grounding conductors directly into IronRidge racking channels. Its compact body slides into rail slots to hold copper ground wire securely while maintaining low clearance beneath solar panels. This component creates a continuous ground path across the array and includes a 25-year warranty.

    Weighing 0.075 lbs, this lightweight lug simplifies wire management in tight roof spaces. Its compact dimensions (3.5" x 5.1" x 6.4") allow fast installation into standard IronRidge rail channels without custom tools. Units are sold individually for flexible project ordering.

    • Manufacturer Part Number: XR-LUG-04-A1
    • Item Weight: 0.075 lb
    • Dimensions (LxWxH): 3.5 x 5.1 x 6.4 inches

  • Resources

    Cut Sheet

    ✔️ Download Cut Sheet

    Quick Installation Guide

    No installation guide file resource available. Email support@solux.energy for file request.

    Warranty

    25-year warranty


Download Cut Sheet of IronRidge Grounding Lug
