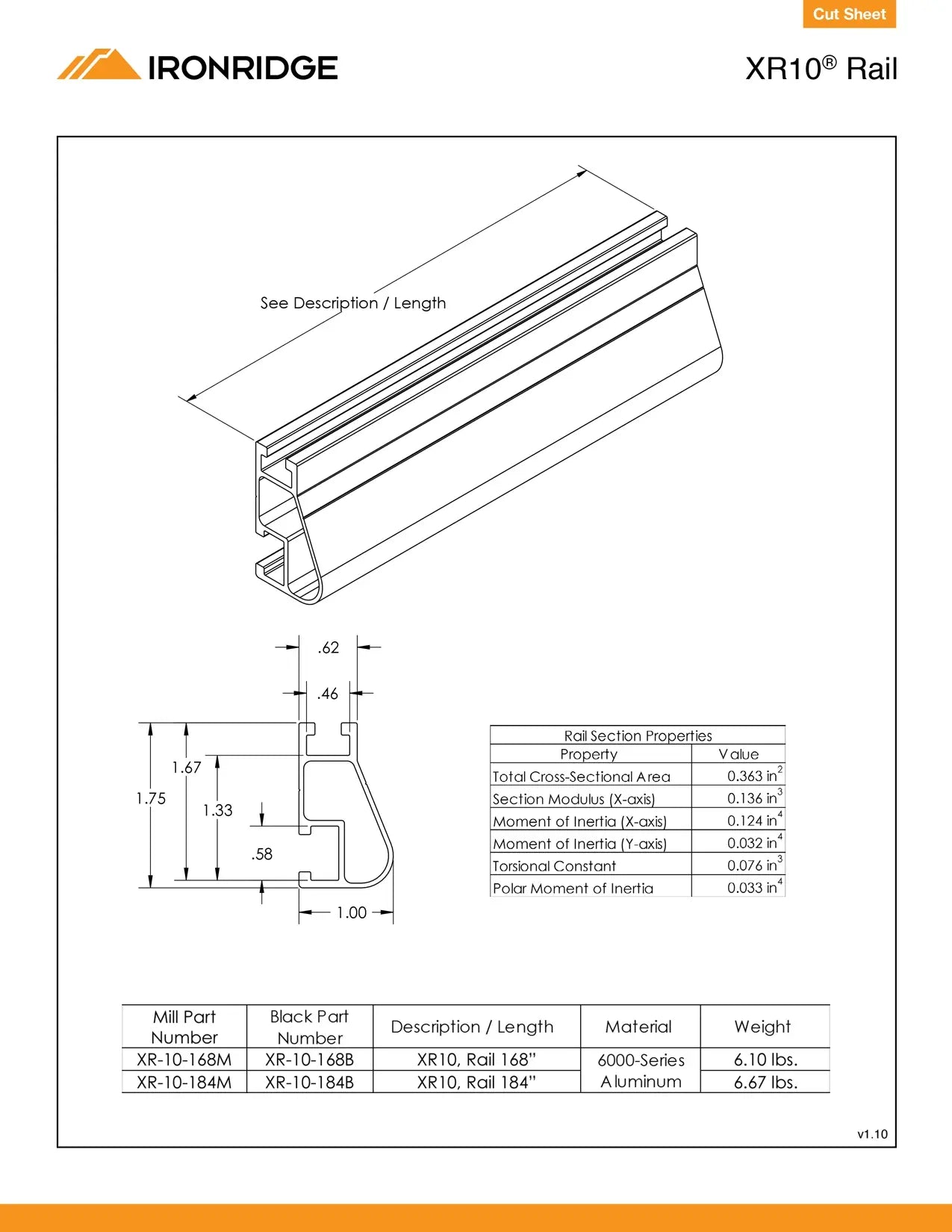

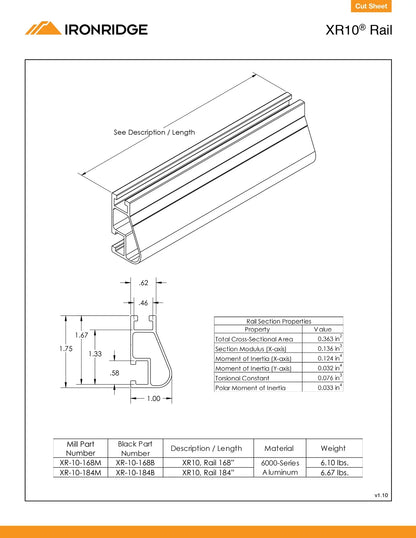

  • Technical specification sheet for an XR10 Rail cut sheet by Ironridge, showing a line drawing of the rail profile with dimensions, cross-section properties, and a material weight table.

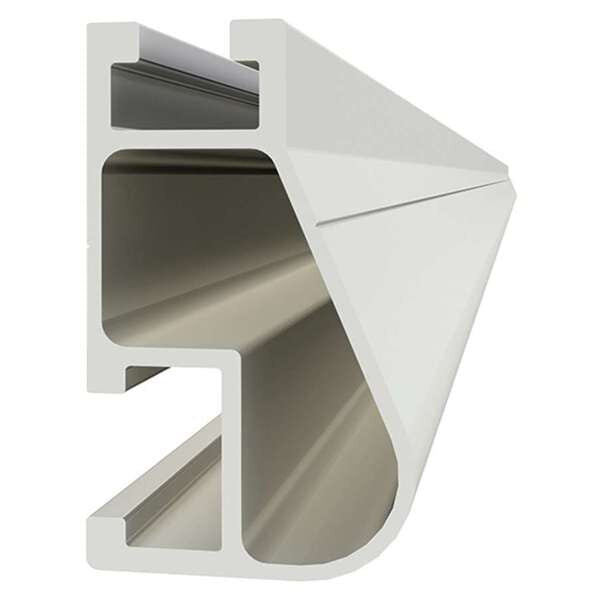

  • A mill aluminum profile or channel section with a triangular flange, shown in a 3D isometric view on a solid white background.
1 3

IronRidge XR-10-184M 184" Mill Rail

$69.68 USD
$69.68 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Low-Profile Structural Curve: Features IronRidge’s signature curved profile shape engineered to optimize strength, resist wind uplift, and protect against mechanical buckling.
✔️ Lightweight & Economical: Designed as a cost-effective, low-weight rail specifically for regions with low to moderate snow loads or light wind requirements.
✔️ Spanning Capability: Achieves up to 6-foot attachment spans between rafter attachment points, minimizing necessary roof penetrations.
✔️ Integrated Equipment Grounding: UL 2703 listed system rail that forms an integrated electrical bonding pathway across racking hardware, splices, and module frames.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Ironridge

  • Description

    IronRidge XR10 Rail 184" (15' 4") Mill (XR-10-184M)

    The IronRidge XR10 Mill Finish Rail (MPN: XR-10-184M) is a low-profile, 184-inch structural aluminum mounting beam engineered for residential solar arrays in moderate climate zones. Featuring a 1.75-inch tall cross-section and an uncoated mill finish, it keeps solar modules close to the roof line while providing structural support across pitched roof mounts.

    This rail features top and side channels for drop-in UFO clamps and L-foot attachments while serving as an internal wire raceway for routing cables across array rows.

    Technical Specs:

    • Manufacturer Part Number: XR-10-184M
    • Item Weight: 6.12 lb
    • Dimensions (LxWxH): 184 x 1.0 x 1.75 inches
    • Manufacturer Product Line: XR Rail

  • Resources

    Datasheet

    ✔️ No datasheet file resource available. Email support@solux.energy for file request.

    Cut Sheet

    ✔️ Download Cut Sheet

    Warranty

    ✔️ 25-year warranty
