Yaskawa Solectria XGI-1500-200/200-480 200kVA 3-Phase Transfromerless Utility Scale Inverter

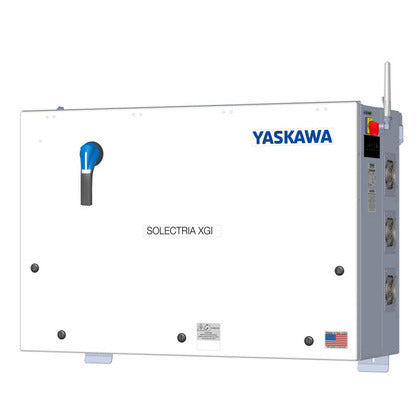

Yaskawa Solectria XGI-1500-200/200-480 Utility-Scale String Inverter

The Yaskawa Solectria XGI-1500-200/200-480 is a three-phase, transformerless string inverter engineered for large commercial and utility-scale solar PV systems. Proudly designed and assembled in the USA to fully comply with the Buy American Act (BAA), this unit provides advanced grid-support capabilities while efficiently converting high-voltage direct current into grid-ready AC power.

Built to maximize energy harvest, it allows system designers to connect heavily oversized solar arrays to ensure peak power generation during non-optimal sunlight hours. By eliminating the internal transformer, this inverter offers a streamlined, heavy-duty solution for demanding, high-capacity utility projects.

Specifications:

• Manufacturer: Yaskawa Solectria
• Manufacturer Part Number: XGI-1500-200/200-480
• Product Series: XGI-1500


Mechanical:

• Rated AC Power: 200 kW / 200 kVA
• AC Output Voltage: 480 VAC, 3-phase
• AC Voltage Range: 422–528 VAC
• Maximum AC Output Current: 240.6 A
• Frequency: 60 Hz
• Maximum DC Input Voltage: 1,500 VDC
•  MPPT Operating Voltage: 860–1,450 VDC
• Full-Power MPPT Voltage Range: 860–1,250 VDC
• Maximum Operating PV Power: 204 kW DC
• Maximum DC Input Current: 237.3 A
• Maximum Rated PV Power: 500 kWp
• Maximum DC/AC Ratio: 2.5
• Dimensions: Approximately 750 × 1,125 × 390 mm (29.5 × 44.3 × 15.4 in)
