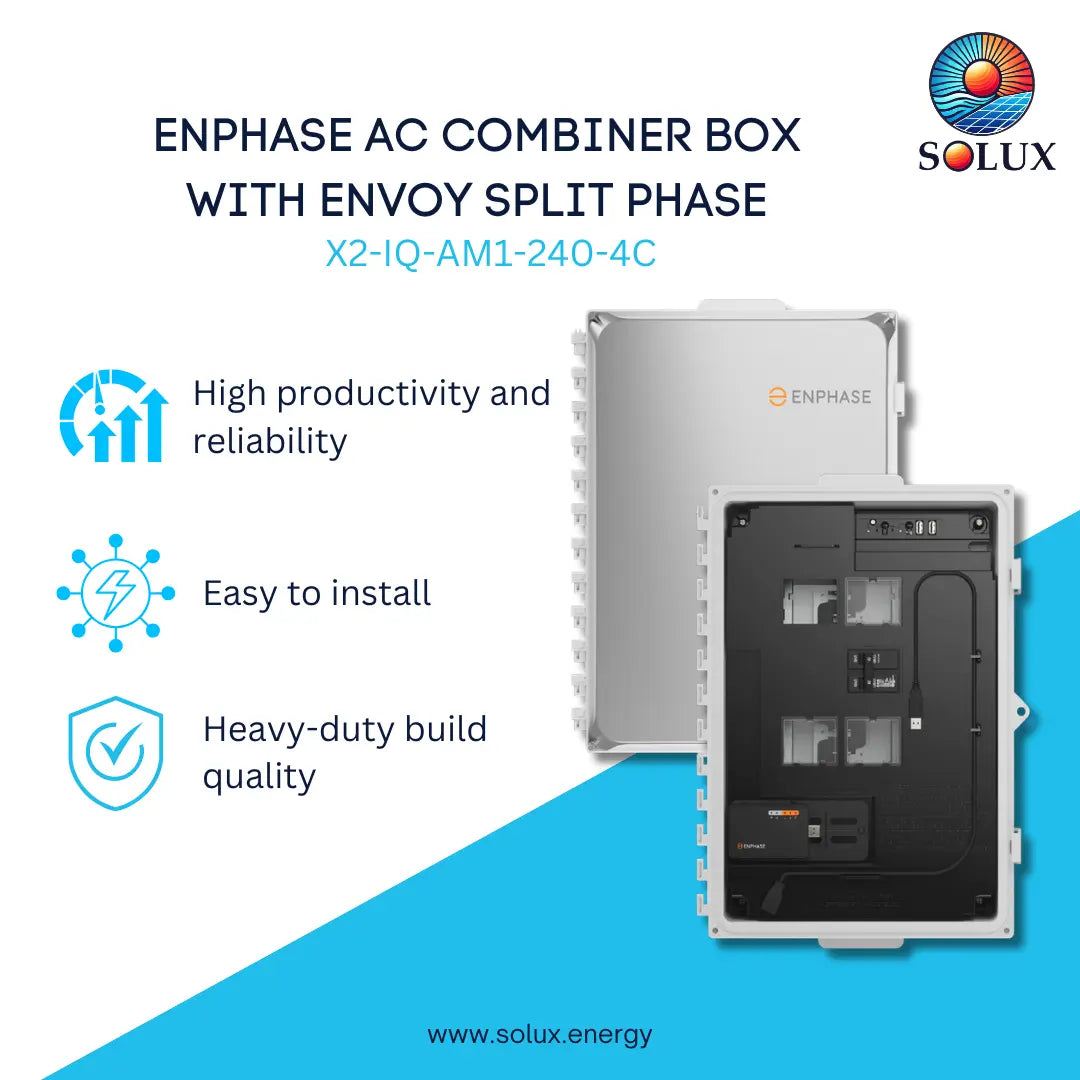

  • This is an image of Enphase X2-IQ-AM1-240-4C AC Combiner Box with Envoy 120V/240V Split Phase

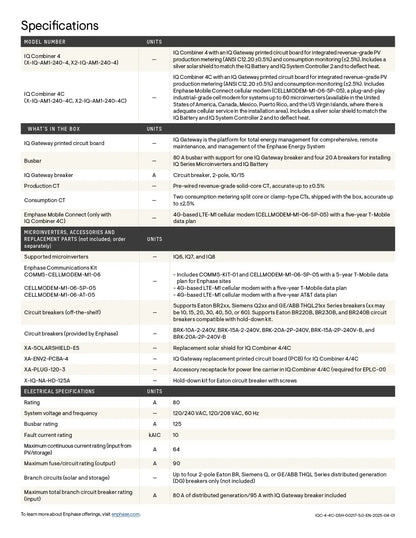

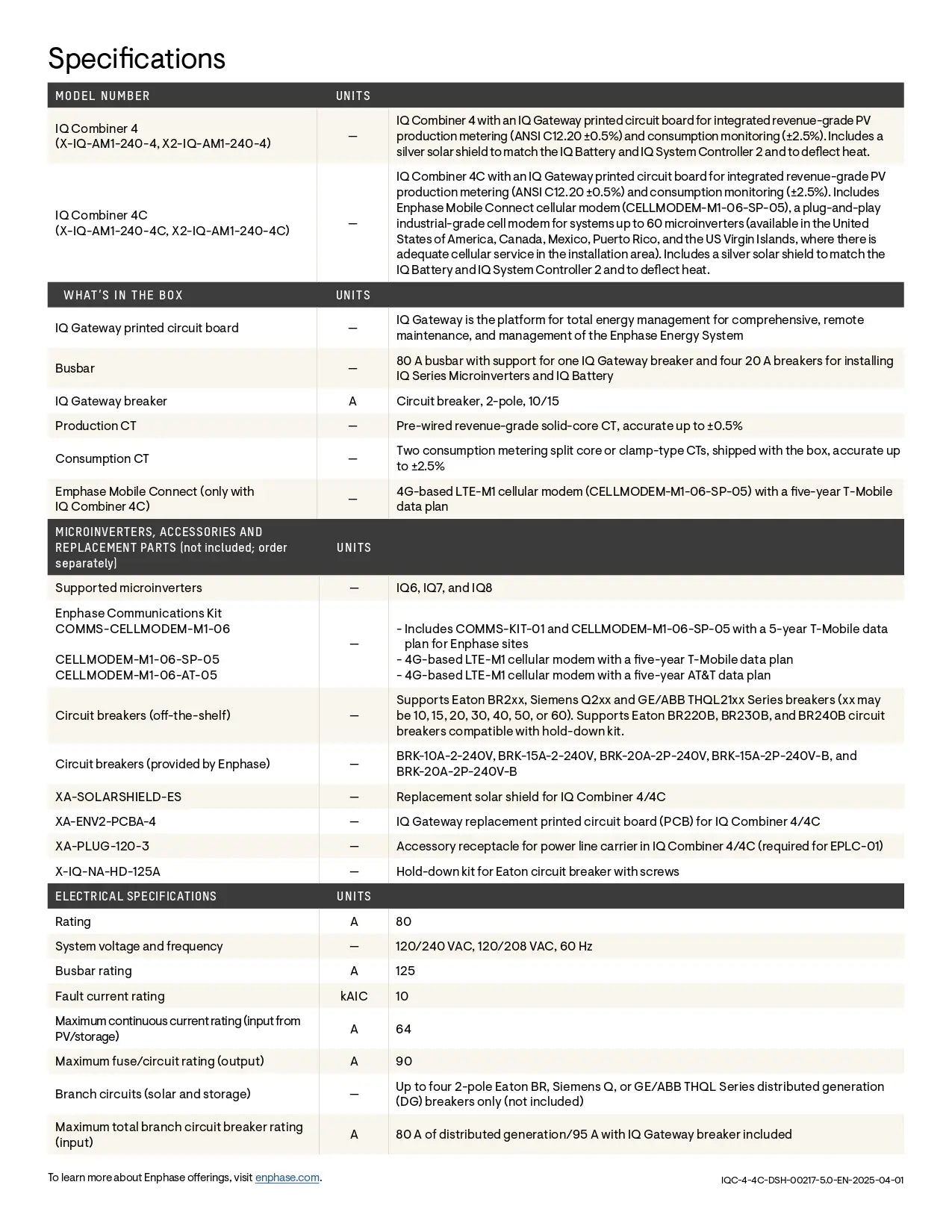

  • Specifications table for X2-IQ-AM1-240-4C Enphase IQ Combiner 4/4C listing technical data and electrical ratings.
  • Open X2-IQ-AM1-240-4C Enphase combiner box with Envoy, showing internal circuit board and components on a white background.
1 3

Enphase X2-IQ-AM1-240-4C AC Combiner Box with Envoy 120V/240V Split Phase

$1,352.50 USD
$1,352.50 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Voltage: 120/240 VAC
✔️ Features: Integrated IQ Gateway for system communication and monitoring
✔️ Warranty: 5 years

It consolidates PV and storage connections into a single enclosure while providing system monitoring, production metering, consumption monitoring, and remote communication through the integrated IQ Gateway and LTE cellular modem.

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Enphase

  • Description

    Enphase X2-IQ-AM1-240-4C AC Combiner Box with Envoy 120V/240V Split Phase

    The X2-IQ-AM1-240-4C is an Enphase IQ Combiner 4C, a smart AC combiner box used in residential solar systems.
    It integrates multiple components into one enclosure—IQ Gateway (monitoring + control), breakers, and communications (including cellular modem)—to simplify installation of Enphase IQ microinverters and battery systems.

    Technical Specifications:

    • System Voltage: 120/240 VAC
    • Max Branch Circuits: Up to 4 × 2-pole inputs
    • Breaker Type: Eaton BR series (plug-in)
    • Max Total PV/Storage Current: ~80 A combined
    • Enclosure Rating: NEMA 3R
    • Dimensions: ~14.75" W × 19.5" H × 6.6" D
    • Weight: ~16.5 lb (≈7.5 kg)
    • Mounting: Wall-mounted, single-stud capable

  • Resources

    Datasheet

    No Datasheet file resource available. Email support@solux.energy for file request.

    Quick Installation Guide

    No Quick Installation Guide available. Email support@solux.energy for file request.

    Warranty

    No Warranty file resource available. Email support@solux.energy for file request.
