Enphase X2-IQ-AM1-240-4C AC Combiner Box with Envoy 120V/240V Split Phase

Enphase X2-IQ-AM1-240-4C AC Combiner Box with Envoy 120V/240V Split Phase

The X2-IQ-AM1-240-4C is an Enphase IQ Combiner 4C, a smart AC combiner box used in residential solar systems.
It integrates multiple components into one enclosure—IQ Gateway (monitoring + control), breakers, and communications (including cellular modem)—to simplify installation of Enphase IQ microinverters and battery systems.

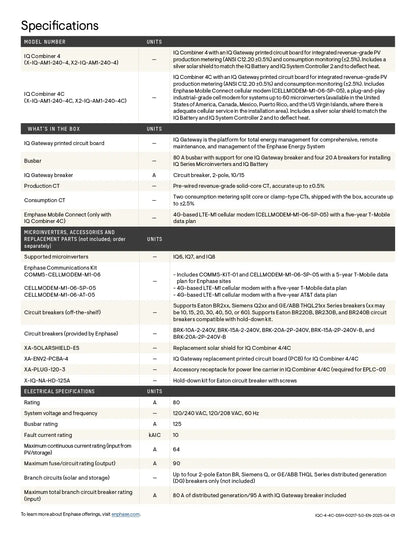

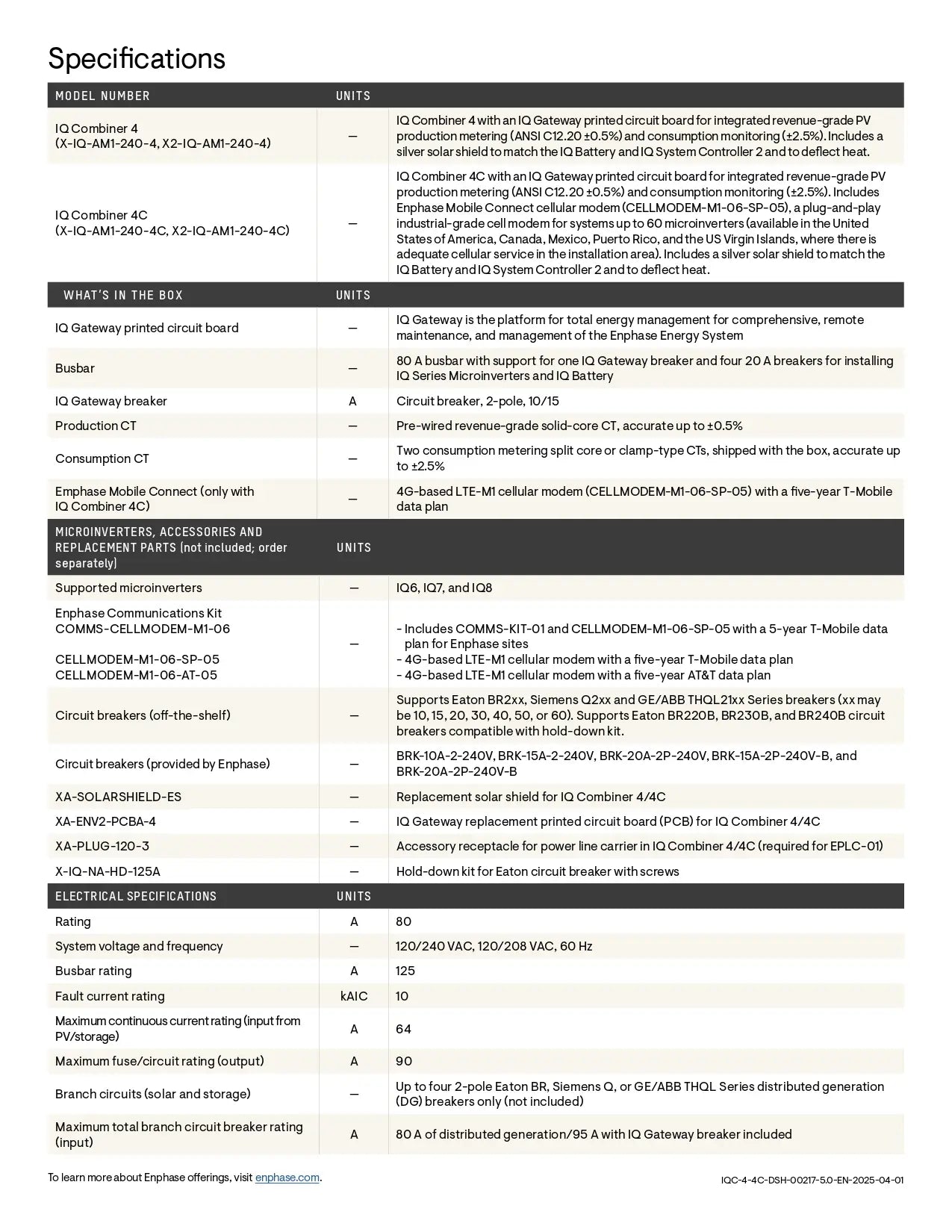

Technical Specifications:

• System Voltage: 120/240 VAC
• Max Branch Circuits: Up to 4 × 2-pole inputs
• Breaker Type: Eaton BR series (plug-in)
• Max Total PV/Storage Current: ~80 A combined
• Enclosure Rating: NEMA 3R
• Dimensions: ~14.75" W × 19.5" H × 6.6" D
• Weight: ~16.5 lb (≈7.5 kg)
• Mounting: Wall-mounted, single-stud capable
