Enphase X-IQ-AM1-240-3-M IQ Combiner 3

Enphase X-IQ-AM1-240-3-M IQ Combiner 3

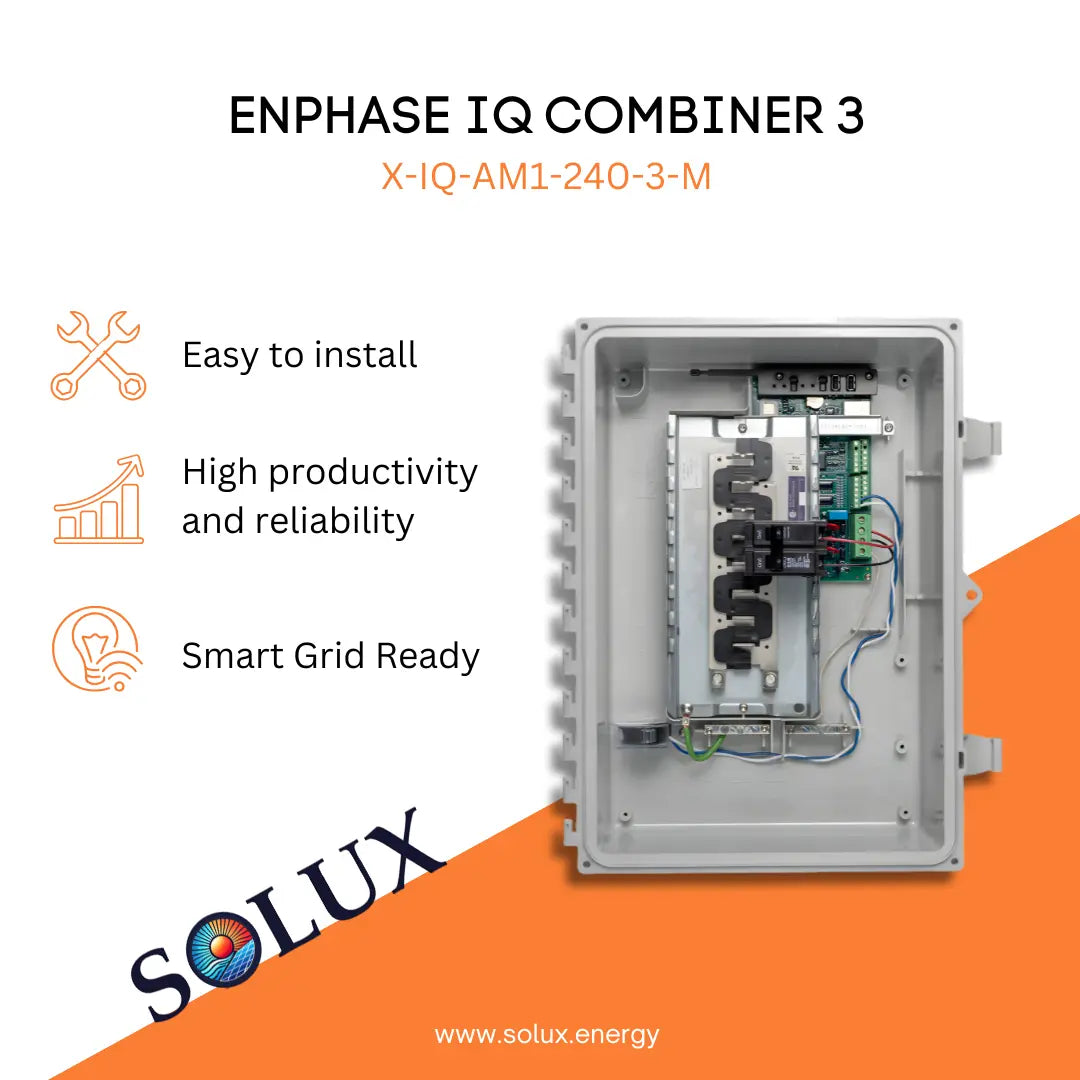

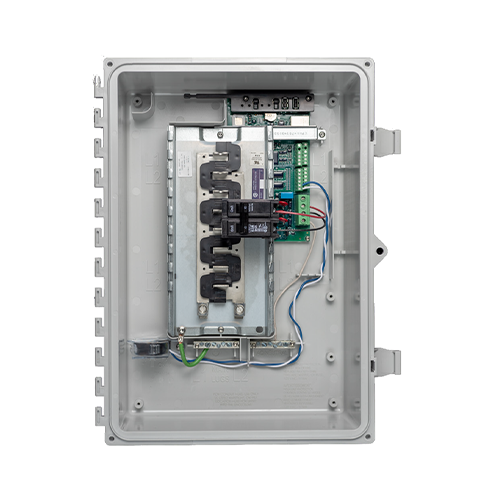

The X-IQ-AM1-240-3-M is an Enphase IQ Combiner 3 (with IQ Envoy PCB)—a compact AC combiner box designed for residential solar systems.
It consolidates key components like branch circuit breakers, monitoring (IQ Envoy), and wiring interfaces into a single pre-wired enclosure, simplifying installation of Enphase microinverter systems.

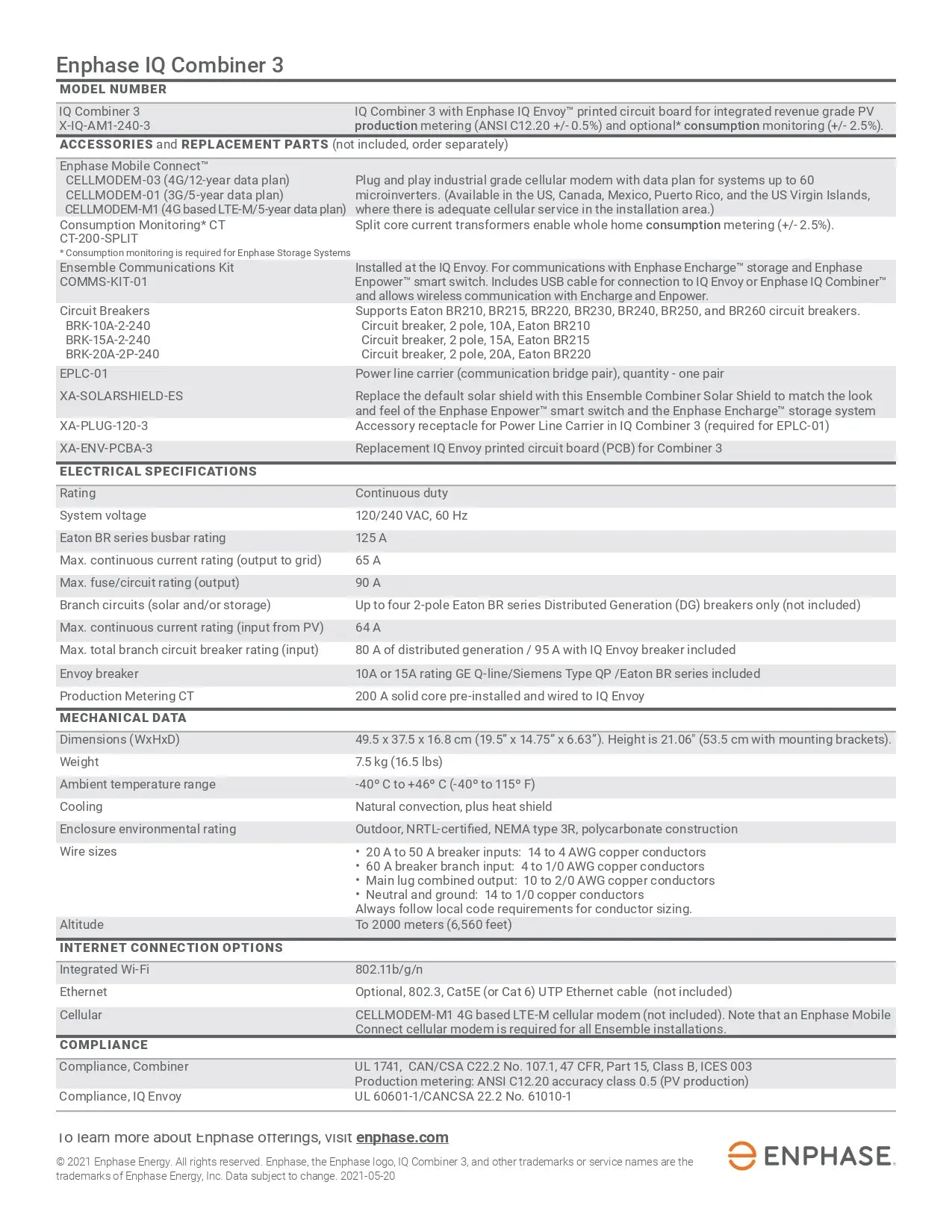

Technical Specifications:

• System Voltage: 120/240 VAC, single-phase
• Max Continuous Current: 80 A)
• Branch Circuits: Up to 4 × 2-pole inputs
• Breaker Type: Compatible with Eaton BR series
• Dimensions (W×H×D): 49.5 x 37.5 x 16.8 cm (19.5” x 14.75” x 6.63”)
• Weight: ~16.5 lb (≈ 7.5 kg)
• Enclosure Rating: NEMA 3R (outdoor rated)
• Mounting: Wall-mounted (single-stud capable)
• Operating Temperature: −40°C to +46°C
• Cooling: Natural convection
