Enphase X-IQ-AM1-240-3-M IQ Combiner 3

Enphase IQ Combiner 3 (Integrated IQ Envoy PCB)

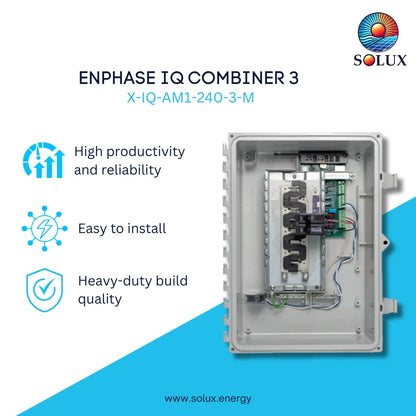

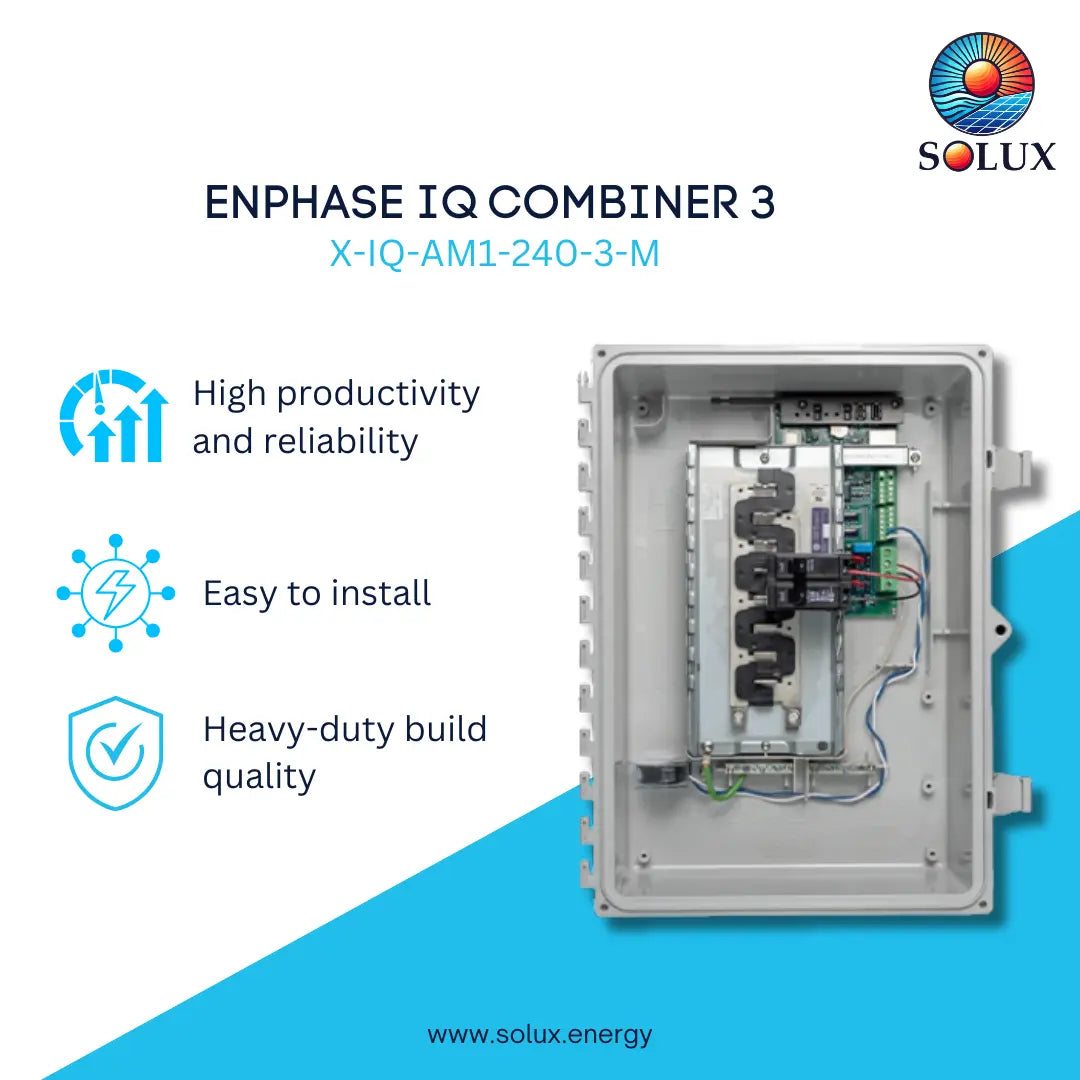

The Enphase X-IQ-AM1-240-3-M IQ Combiner 3 merges solar circuit connections, system monitoring, and wiring controls into a single pre-wired outdoor panel for residential microinverter installations. Equipped with an integrated Enphase IQ Envoy circuit board, it provides continuous system monitoring and communications for the solar array. The internal busbar assembly supports up to four 2-pole Eaton BR series circuit breakers for solar microinverter branch circuits.

Designed for fast exterior mounting, the single-stud wall attachment bracket and flexible wire knockouts simplify residential job site installation. Its NEMA Type 3R weatherproof enclosure protects internal electrical components against rain, sleet, and extreme outdoor temperatures. The pre-wired design speeds up installation by eliminating the need to wire separate monitoring units and circuit combiner panels.

Technical Specifications:

• System Voltage: 120/240 VAC, single-phase
• Max Continuous Current: 80 A)
• Branch Circuits: Up to 4 × 2-pole inputs
• Breaker Type: Compatible with Eaton BR series
• Dimensions (W×H×D): 49.5 x 37.5 x 16.8 cm (19.5” x 14.75” x 6.63”)
• Weight: ~16.5 lb (≈ 7.5 kg)
• Enclosure Rating: NEMA 3R (outdoor rated)
• Mounting: Wall-mounted (single-stud capable)
• Operating Temperature: −40°C to +46°C
• Cooling: Natural convection
