Wiring Box For PVI 50/60TL

Wiring Box For PVI 50/60TL

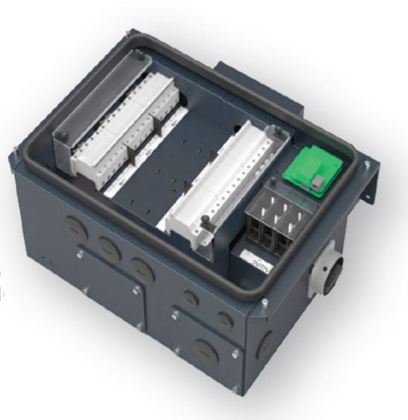

The PVI-50-60TL-WIREBOX-S provides the DC string-input wiring and protection interface for compatible PVI-50TL-480 and PVI-60TL-480 inverters. It has 15 fused inputs, arranged as 5 inputs per MPPT zone, with fuses included, and connects the PV array to the inverter.

Specifications:

• Manufacturer Part Number: PVI-50-60TL-WIREBOX-S

Mechanical:

• Maximum DC voltage: 1000 VDC
• DC input current: 80A
• Fused inputs: 15
• Input arrangement: 5 per MPPT × 3 MPPTs
• Enclosure: NEMA Type 4X
• Enclosure material: Polyester powder-coated aluminum
• Wirebox dimensions: approximately 16.7 × 23.6 × 10.24 in (424 × 600 × 260 mm)
• Weight: approximately 33 lb (15 kg)
• Operating temperature: -30°C to +60°C, with derating from +50°C
• Humidity: 0–95%, non-condensing
• Operating Temperature: -40°C to +50°C
