PRODUCT OVERVIEW
Wireless Gateway Connectivity. Plug-and-Play Solar Monitoring.
Designed for reliable wireless network connectivity and seamless cloud telemetry in residential and commercial Enphase solar installations. Enhance your solar energy system management with a dependable Wi-Fi USB adapter built for effortless plug-and-play installation and stable data transmission.

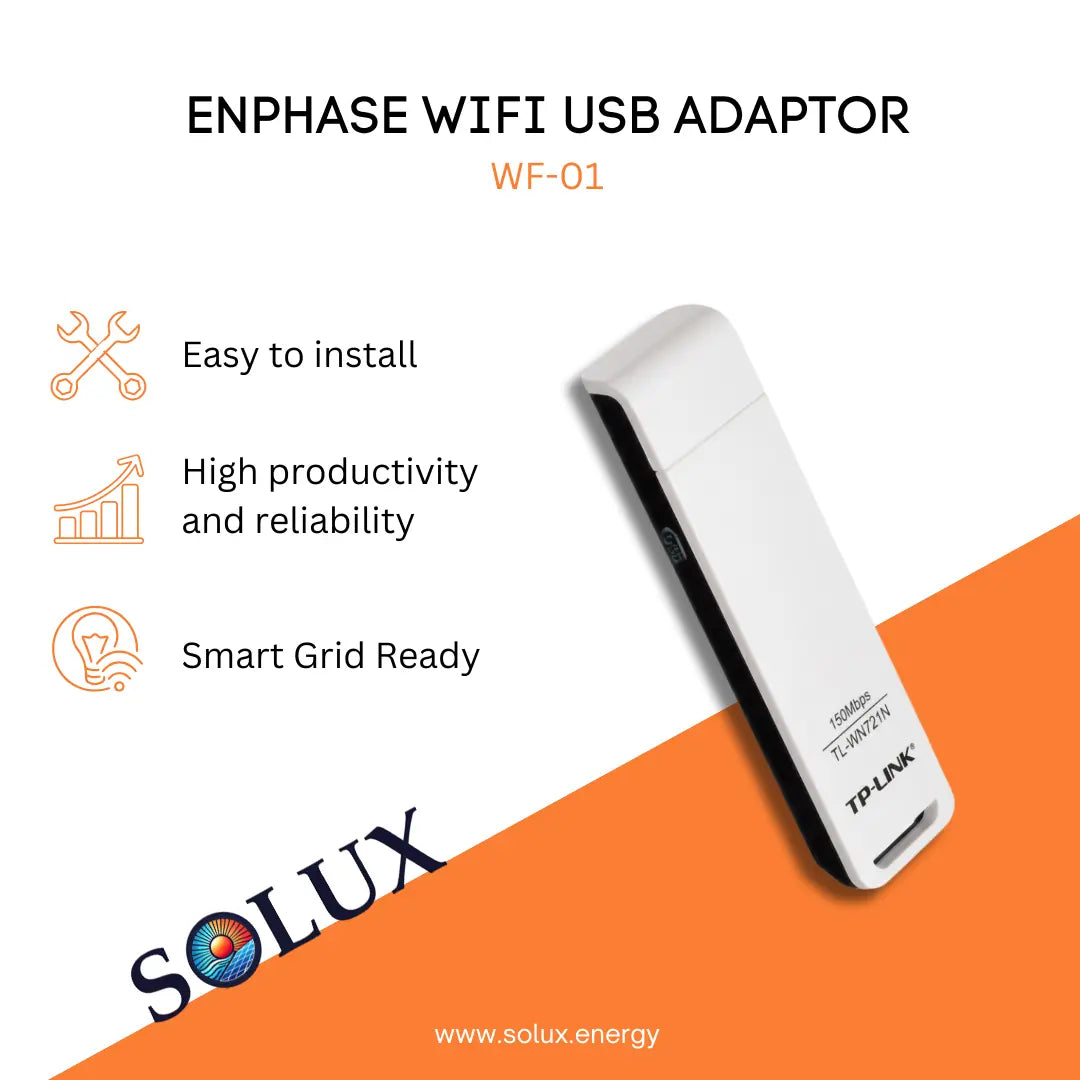

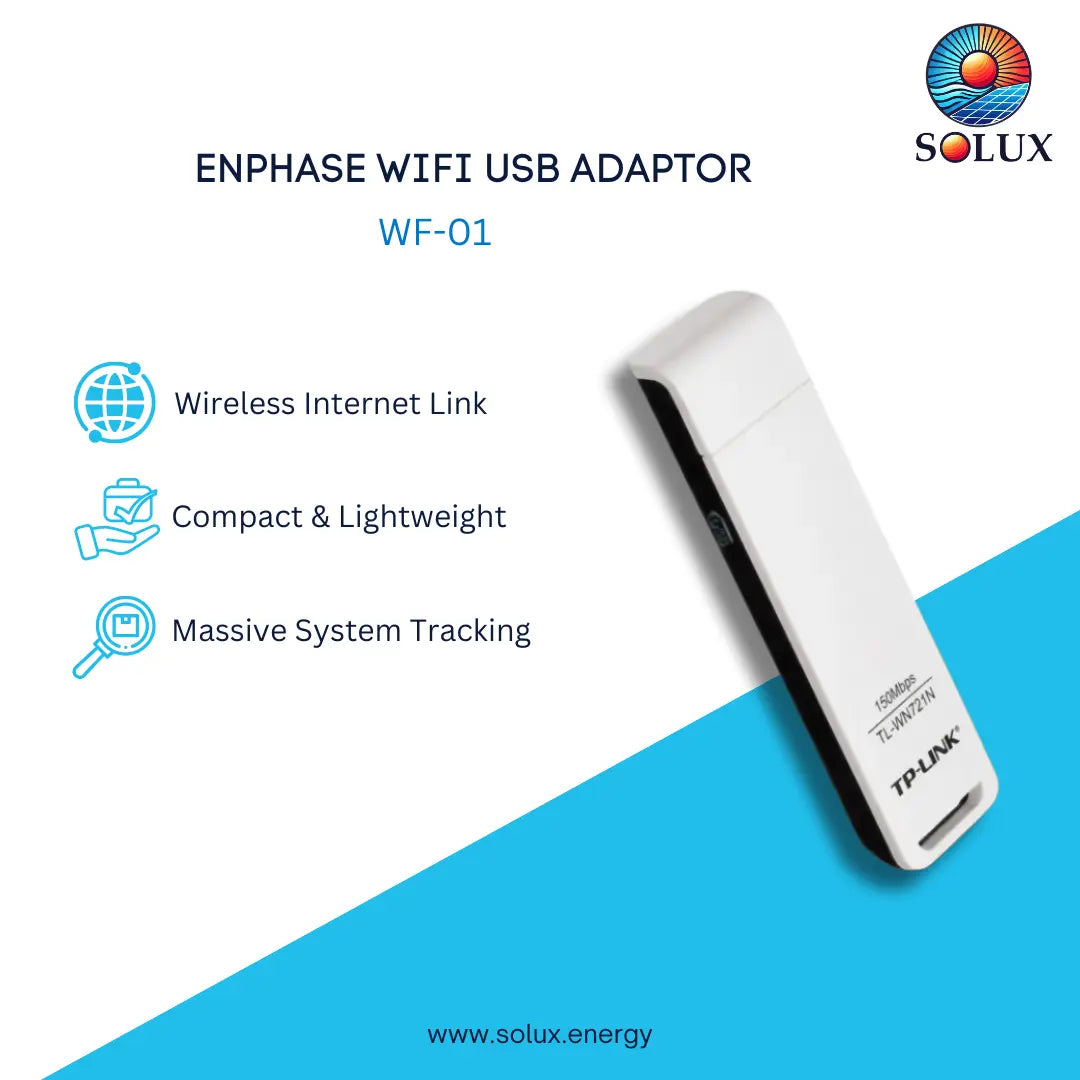

The Enphase WF-01 (Communications Kit / USB Wi-Fi Adapter) connects your Enphase IQ Gateway or Envoy communications gateway directly to a local wireless router without running Ethernet cables. Featuring dual-band 802.11 b/g/n wireless support, WPS push-button pairing, and bus-powered USB operation, it delivers continuous Enlighten cloud monitoring and remote system diagnostics.
ELECTRICAL & COMMUNICATION SPECIFICATIONS
STANDARD COMPLIANCE
- Radio & Emissions: FCC Part 15 Subpart C, IC RSS-210 / RSS-247 Certified
- Safety Standards: UL 60950-1 / UL 62368-1, CSA C22.2 No. 60950-1
- System Compatibility: ENV-IQ-AM1-240, ENV-S-AM1-120, ENV-S-WM-230
- Environmental: RoHS Compliant, CE Certified
INSTALLATION SPECIFICATIONS
- • Part Number / Model: WF-01 (Enphase Wi-Fi Adapter)
- • Dimensions: 2.35 × 0.80 × 0.40 in (60 × 20 × 10 mm)
- • Weight: 0.62 lbs
- • Mounting Type: Direct Plug-In to Gateway USB Port
- • Operating Temperature: -40°F to +149°F (-40°C to +65°C)
- • Environment Rating: Indoor / Inside NEMA 3R Gateway Enclosure
Resources
📄 No datasheet file resource available. Email support@solux.energy for file request.
