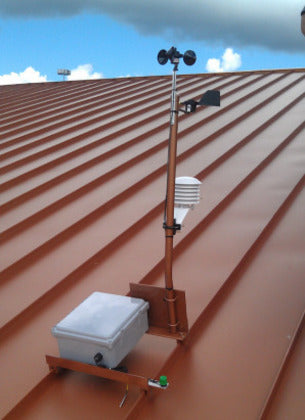

Solectria SRV-WTHR-WIND Full Weather Monitoring Station

Solectria SRV-WTHR-WIND Full Weather Monitoring Station

The SRV-WTHR-WIND is a solar PV weather monitoring station designed to collect and monitor key environmental conditions affecting solar power system performance. It includes sensors for solar irradiance, ambient temperature, module temperature, wind speed, and wind direction, providing environmental data for PV system monitoring, performance analysis, and site assessment.

Technical Specifications:

• Manufacturer Part Number:  SSRV-WTHR-WIND
• Product Type: Solar PV Weather Monitoring Station
• IP/NEMA Rating: NEMA 4X
• Application: SolrenView monitoring
• Weather Module: SRV Weather Module
• Solar Irradiance Sensor: Included
• Ambient Temperature Sensor: Included, with sun-shield enclosure
• Module Temperature Sensor: Included; mounts to the back of a solar module
• Wind Direction Sensor: Included
• Wind Speed Sensor: Included
• Monitoring: Environmental/PV system performance monitoring
• Dimensions (H x W x D): 12 in. x 10 in. x 4 in. (304.8 mm x 254 mm x 101.6 mm)
• Shipping Weight: 12 lb (5.4 kg)
