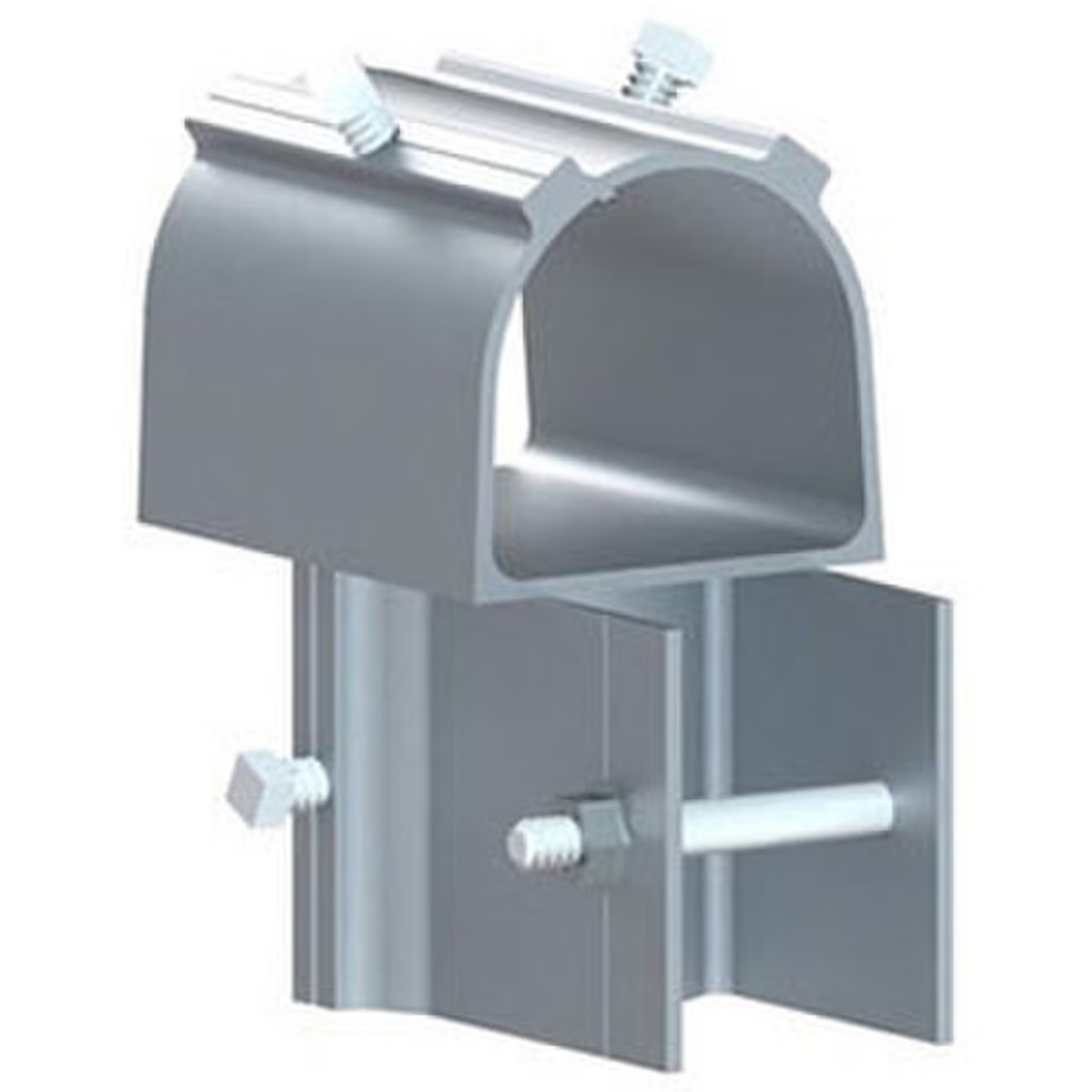

UNIRAC ULA REAR CAP, 2", AL

✔️ Application: Used at the top of vertical pipe posts in Unirac Large Array (U-LA) ground-mount or tilt-leg structures to connect horizontal schedule 40/80 steel pipes to vertical support posts.

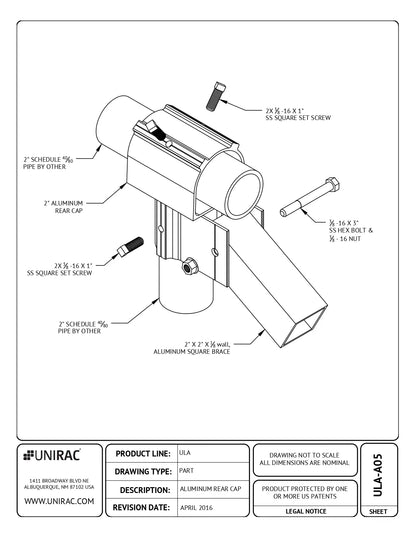

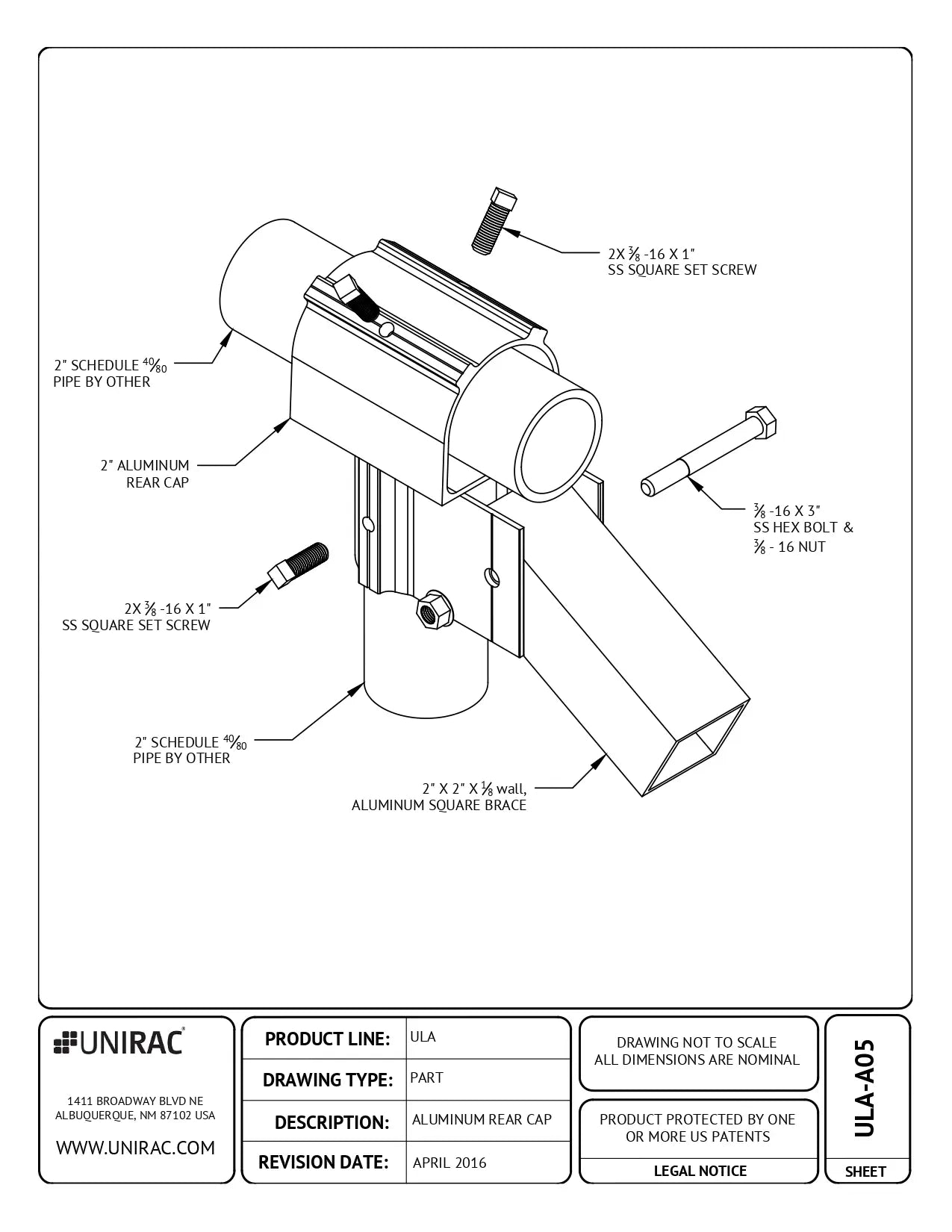

✔️ Cross-Pipe Connection: Secures a 2-inch horizontal pipe beam across a 2-inch vertical pipe post to build rigid support trusses.
✔️ Included Hardware: Includes the cast aluminum pipe cap body, setscrews for locking onto the post, and mounting bolts/hardware for structural assembly.
✔️ Compatibility: Designed specifically for Unirac U-LA ground-mount substructures and standard 2" schedule 40 steel pipe frames.
✔️ Material: Heavy-duty cast aluminum construction with stainless steel hardware for long-term outdoor exposure and high structural load support.
