Description

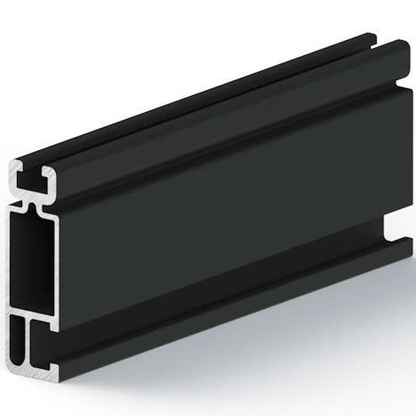

SM RAIL 185" DRK (Priced as 1 pc)
Unirac UNI-310185D is a SolarMount standard rail component made by Unirac, a U.S. manufacturer of photovoltaic (solar) mounting systems. It’s an extruded aluminum rail about 185 inches long with a dark bronze anodized finish, designed to serve as a sturdy support beam in rooftop or ground-mounted solar panel installations. Rail components like this are part of Unirac’s SolarMount racking system and are used to secure and align solar modules on the mounting structure. The product typically includes a 25-year limited warranty and is compatible with a range of solar array configurations.
Product Highlights:
- Extended Reach: 185-inch length allows for more modules per rail, reducing splice hardware and labor costs.
- Superior Span Capacity: Engineered for high strength-to-weight performance to allow for longer distances between roof attachments.
- Architectural Dark Finish: Dark bronze anodized coating provides a fade-resistant, matte "black" look for premium aesthetics.
- Integrated Bonding: UL 2703 certified to create a continuous grounding path through the rail, eliminating separate straps.
- Dual-Channel Versatility: Top and side channels enable rapid "slide-on" installation for mid/end clamps and L-feet.
- Code-Compliant: Supported by PE-stamped span tables and design tools for streamlined permitting.
Logistics & Ordering Info
- Manufacturer Part Number: 310185D
- Manufacturer Warranty: 25 Years
- Shipping Weight: 11.56 lb
- Shipping Dimensions: 185 x 0.75 x 2.5625 in
- Case Qty: 144
- Pallet Qty: 144
-
Downloads

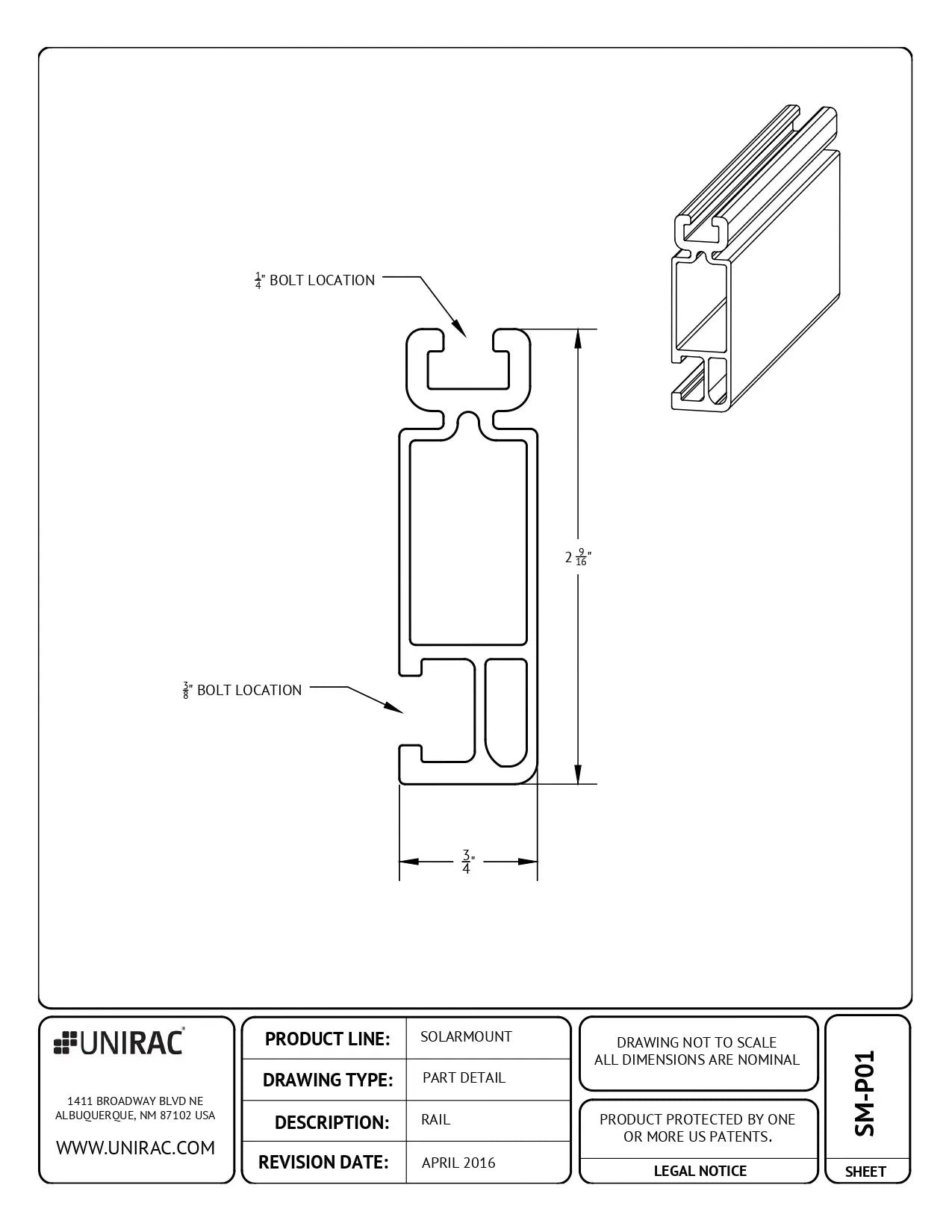

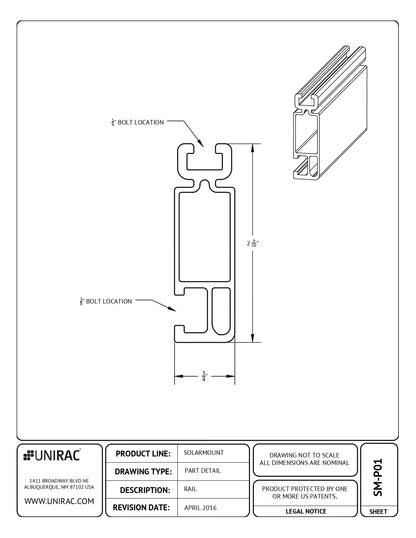

Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
