Description

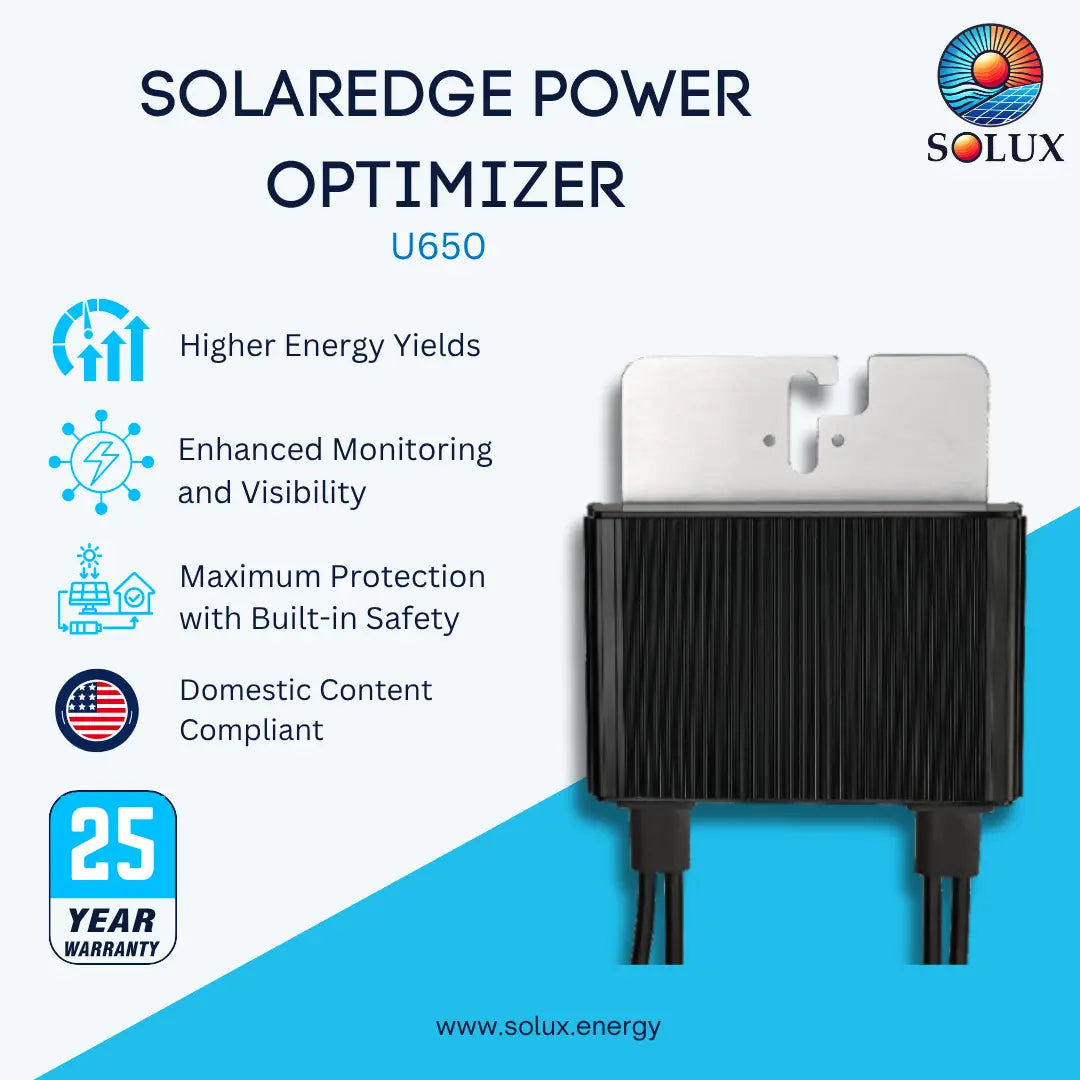

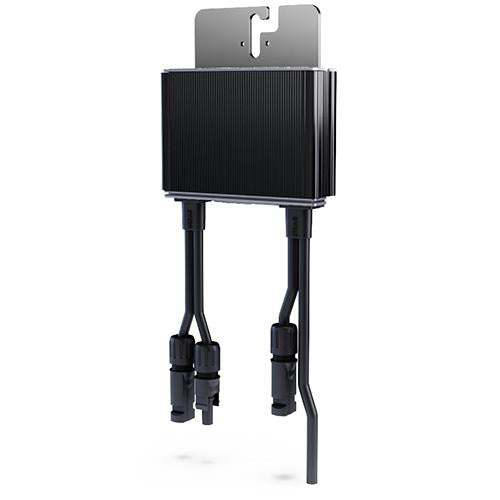

SolarEdge 650W Residential DC Power Optimizer Domestic Content Version (U650)
The SolarEdge U650 is a high-efficiency 650 W DC power optimizer engineered specifically for residential solar PV systems using SolarEdge inverters. Built to satisfy domestic content requirements for U.S. solar installations, this module-level power electronics (MLPE) device performs panel-level Maximum Power Point Tracking (MPPT) to eliminate system losses caused by shading, soiling, or module mismatch.
Operating at a peak conversion efficiency of 99.5%, the unit mounts directly to solar panel racking or module frames using MC4 connectors. In addition to power optimization, the U650 provides real-time panel-level performance telemetry to the SolarEdge Monitoring Platform and integrates SafeDC automated rapid-shutdown capability to enhance firefighter and jobsite safety.
Technical Specifications:
- Product: SolarEdge U650 Power Optimizer
- Rated Input Power: 650 W DC
- Maximum Input Voltage: 60 V DC
- MPPT Voltage Range: 8–60 V DC
- Maximum Input Current: 15 A DC
- Maximum Short-Circuit Current: 18.75 A DC
- Maximum Output Current: 15 A DC
- Maximum System Voltage: 1000 V DC
- Peak Efficiency: 99.5%
- Protection Rating: IP68 / NEMA 6P
- Connectors: MC4
- Dimensions: 155 × 129 × 30 mm
- Weight: 0.72 kg / 1.6 lb
-
Resources
Datasheet
✔️ Download Datasheet
Quick Installation Guide
No installation file resource available. Email support@solux.energy for file request.
Warranty
No warranty file resource available. Email support@solux.energy for file request.
