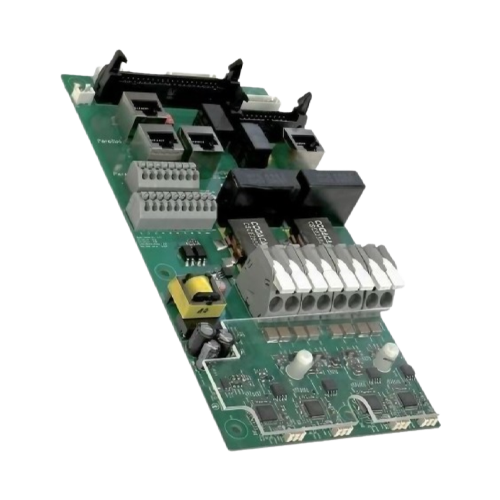

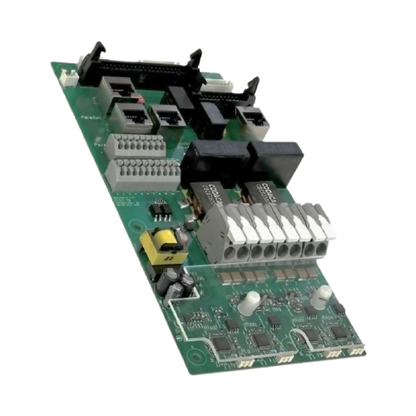

  • A green industrial electronic circuit board with various black, gray, and white electronic components, connectors, and a yellow transformer, shown on a plain white background.
1 3

Sol-Ark TX 12K-A Transmitter for 8K-2P & 12K-2P

$362.90 USD
$362.90 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ PV Rapid Shutdown (PVRSS) transmitter
✔️ Power Line Communication (PLC)
✔️ Provides the permission-to-operate signal to compatible rapid-shutdown receivers
✔️ Designed for installation inside Sol-Ark 12K-2P-N
✔️ Compatible with SunSpec Rapid Shutdown systems
✔️ Supports up to 30 rapid-shutdown devices in series per PV string

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Sol-Ark

  • Description

    Sol-Ark TX/RX Transmitter for 8K-2P & 12K-2P

    Sol-Ark TX-12K-A transmitters are part of the Rapid Shutdown Line, they are located inside Sol-Ark 12K-2P-N inverters.

    Provides the permission-to-operate powerline communication (PLC) signal when paired with Sol-Ark O900-80V or any other SunSpec RSD Certified module-level power electronic devices to provide rapid shutdown system compliance as per 2017 & 2020 NEC 690.12 specifications. This Transmitters can be installed in existing Sol-Ark 12K previously commissioned.

    Technical Specifications:

    • Model: TX 12K-A
    • Product Type: Rapid Shutdown Transmitter
    • Communication: Power Line Communication (PLC)
    • PV String Inputs: 4
    • Maximum PV System Voltage: 500 VDC
    • Maximum RSD Devices/String: 30
    • Dimensions: 110 × 214 mm
    • Weight: 316 g
    • PV String Connection: WAGO Terminal Block 221-613 10WG
    • Operating Temperature: −25°C to +55°C
    • Maximum Installation Altitude: 4,000 m / 13,100 ft
