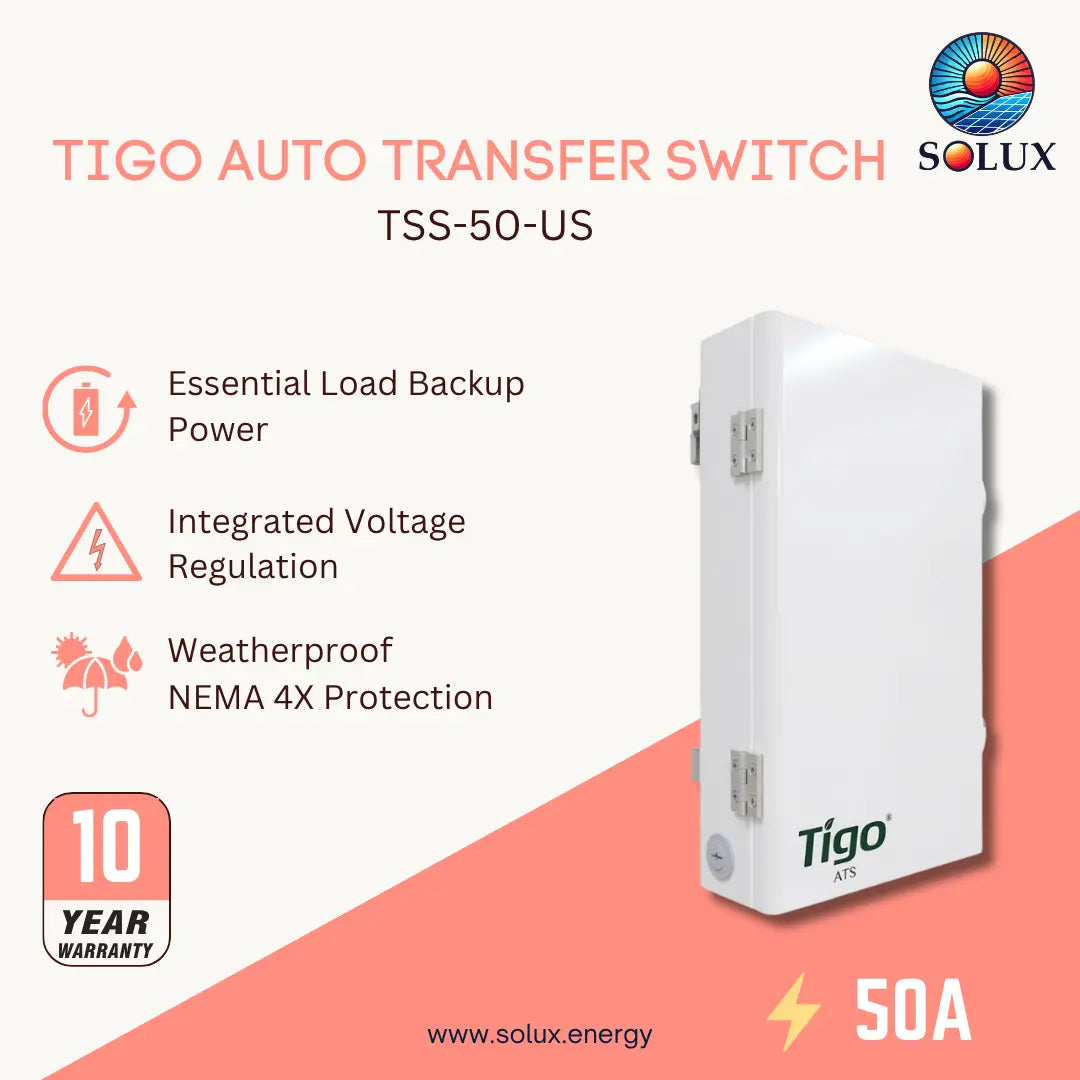

Tigo TSS-50-US 604-00050-00 50A MLO Auto Transfer Switch Backup/Grid

$1,095.81 USD
$1,095.81 USD
Sale Sold out
Shipping calculated at checkout.

Key Features:

✔️ Component Type: Automatic Transfer Switch (ATS) for Energy Storage / Solar Backup Systems
✔️ Manufacturer: Tigo Energy
✔️ Series Compatibility: Tigo EI (Energy Intelligence) Residential Inverters and Battery Storage Systems
✔️ Function: Senses grid loss and automatically isolates the home from the utility grid to safely switch essential loads to solar and battery backup power
✔️ Rated Continuous Current: 48 A
✔️ Max Continuous Output Power: 10,000 VA (L-L @ 240V) / 5,000 VA (L-N @ 120V)
✔️ Nominal Output Voltage: 120 / 240 VAC Split-Phase
✔️ Switchover Time: < 2 seconds
✔️ Panelboard Configuration: Main Lug Only (MLO)
✔️ Enclosure Protection Rating: NEMA 4X / IP65 (Outdoor/Indoor rated)
✔️ Dimensions: 18.9″ H × 10.8″ W × 4.1″ D (480 mm × 275 mm × 105 mm)

All orders are subject to product availability. We will notify you if an item is unavailable or delayed within 24-48 business hours.
Secure checkout with
  • Ach Direct Debit
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Visit our Shipping Policy and Returns Policy page for further details

 View Product Details

Tigo Logo

  • Description

    Tigo TSS-50-US 604-00050-00 50A MLO Auto Transfer Switch Backup/Grid

    The Tigo ATS is a necessary and required component for on-grid storage. The ATS senses grid loss and safely switches from grid + solar/ battery to solar/battery only.

    Features

    • Output 120Vac and 240Vac split phase
    • Built-in transformer
    • IP65 - Outdoor and indoor rated
    • Essential load back up
    • 50A ATS main lug only (MLO)

    Technical Specifications

    • Height/width/depth: 18.9/10.8/4.1in 480/275/105mm
    • Weight: 34.3lbs./15.6kg
    • Operating temperature: -13 – 122°F -25 – 50°C
    • Operating humidity: Up to 100%
    • Maximum elevation: 9842ft/3000m
    • Noise: <25dB

  • Resources

    Datasheet

    ✔️ Datasheet

    Quick Installation Guide

    ✔️ Quick Installation Guide

Download Spec Sheet of Tigo Auto Transfer Switch
