PRODUCT OVERVIEW

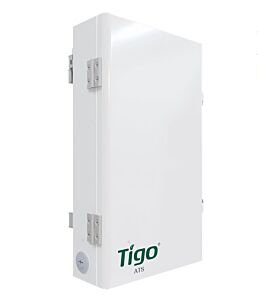

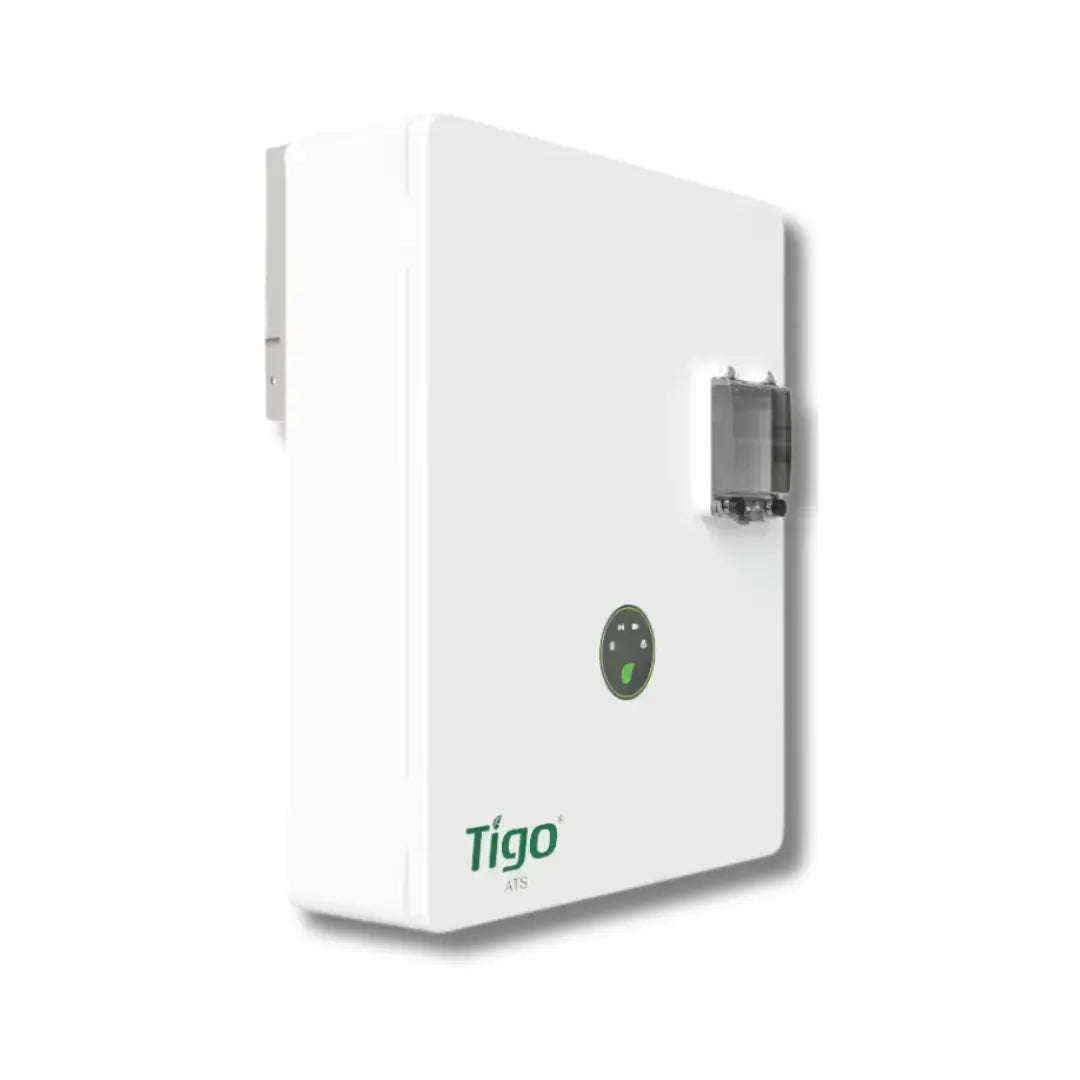

Tigo EI Automatic Transfer Switch (ATS) TSS-200-US
The Tigo EI Automatic Transfer Switch (ATS) TSS-200-US (Part Number: 604-00200-20) is a crucial component for grid-tied energy storage systems, facilitating seamless transitions between grid power and backup sources during outages.

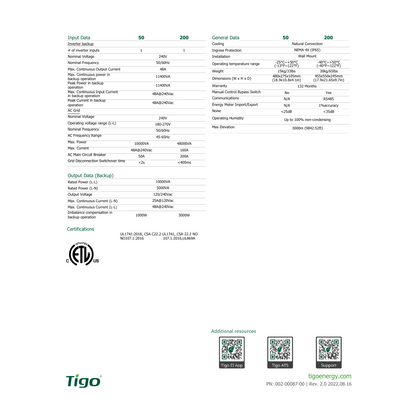

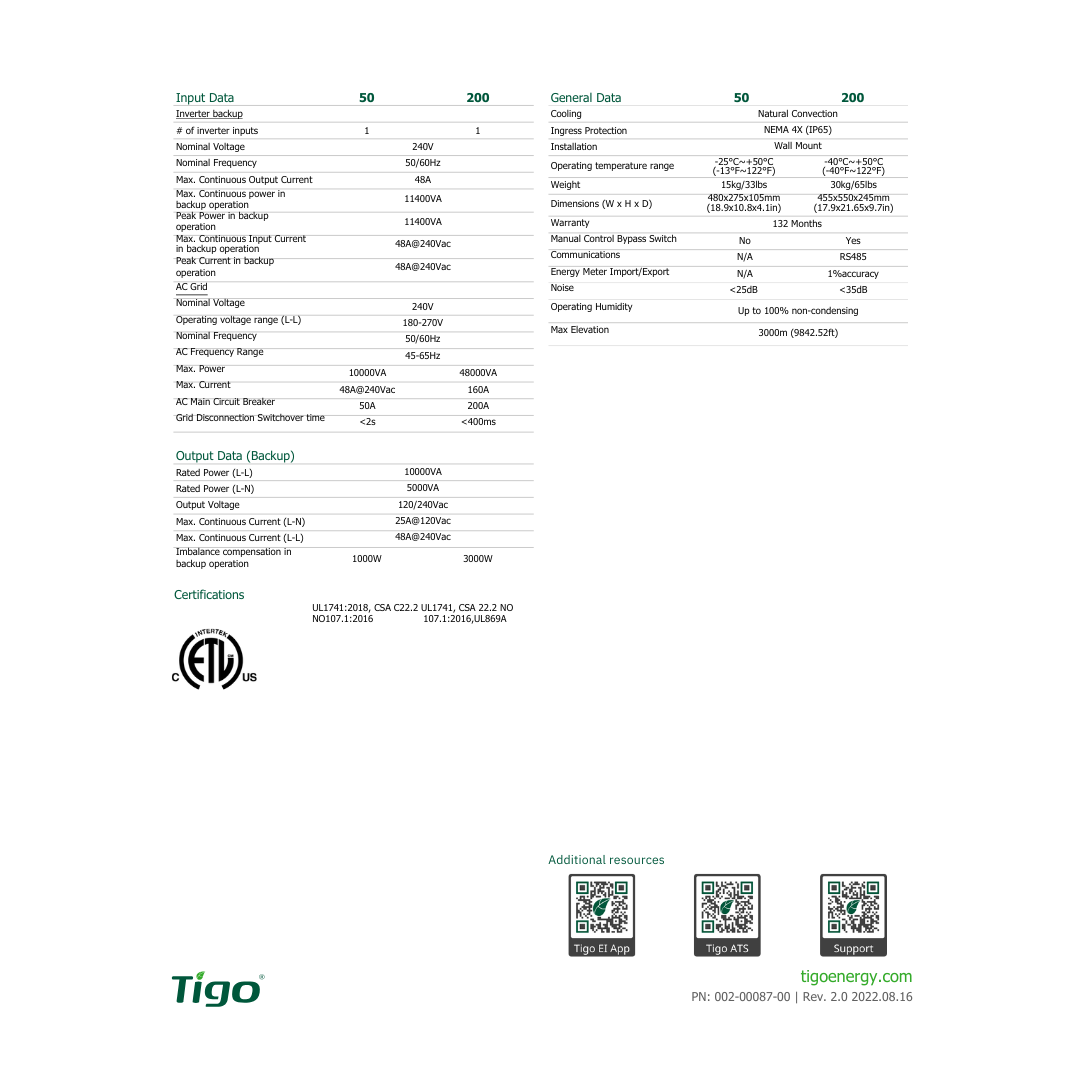

TECHNICAL SPECIFICATION (MODEL 50 / MODEL 200)
CERTIFICATIONS & COMPLIANCE
- Certifications: UL1741:2018, CSA C22.2 NO 107.1:2016, UL1741, CSA 22.2 NO 107.1:2016, UL869A
- Energy Meter Import/Export: 1% accuracy (Model 200 Only)
- Acoustic Noise Emission: < 25 dB (Model 50) / < 35 dB (Model 200)
- Max Operational Elevation: 3000m (9842.52 ft)
MECHANICAL & ENVIRONMENT
- • Dimensions (W x H x D) 50: 480 × 275 × 105 mm (18.9 × 10.8 × 4.1 in)
- • Dimensions (W x H x D) 200: 455 × 550 × 245 mm (17.9 × 21.65 × 9.7 in)
- • Weight: Model 50: 15kg (33lbs) | Model 200: 30kg (65lbs)
- • Operating Temp (50): -25°C to +50°C (-13°F to 122°F)
- • Operating Temp (200): -40°C to +50°C (-40°F to 122°F)
- • Humidity / Installation: Up to 100% non-condensing / Wall Mount
- • Product Warranty: 132 Months
