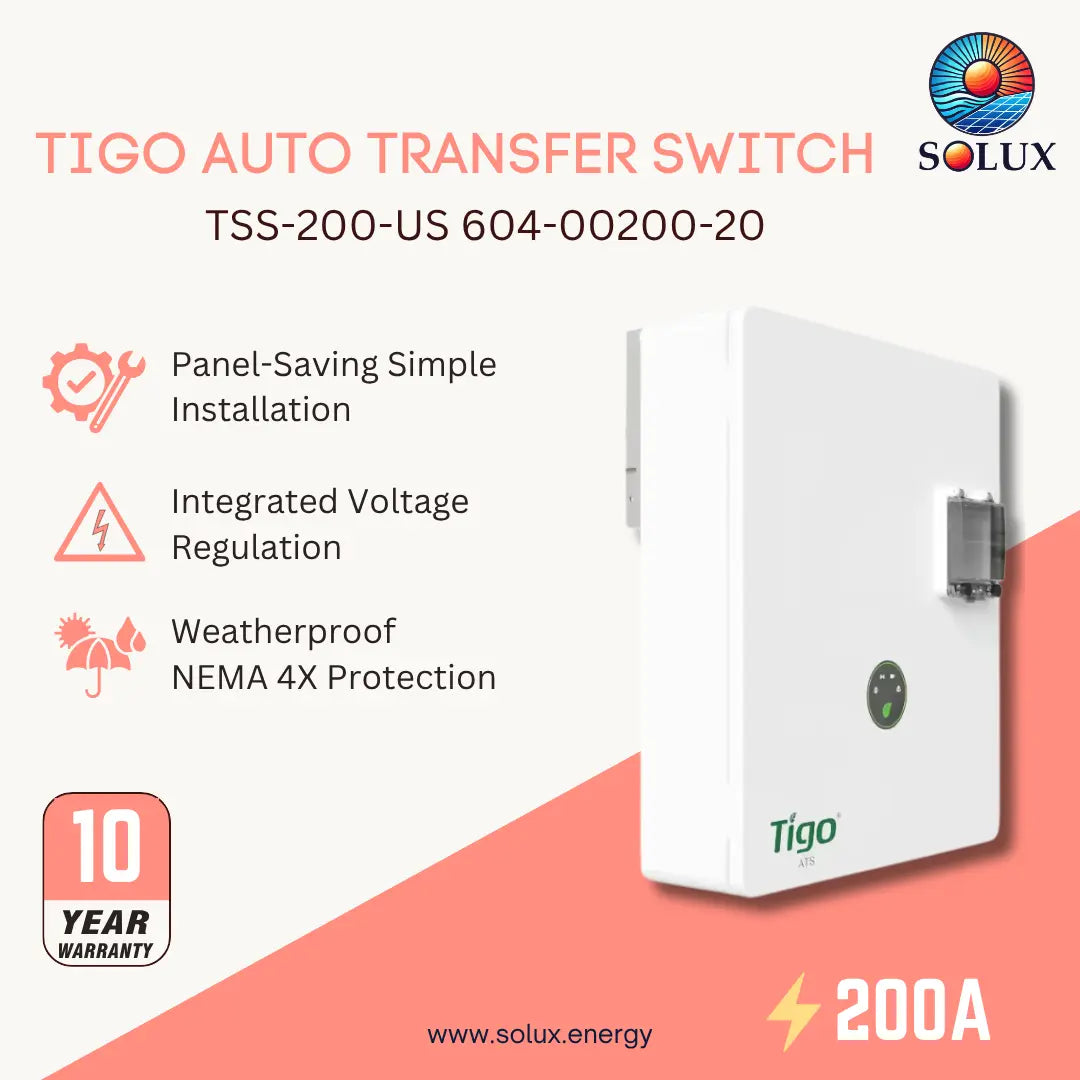

Tigo TSS-200-US 604-00200-20 200A MCB Auto Transfer Switch (ATS)

Tigo EI Automatic Transfer Switch (ATS) TSS-200-US

The Tigo EI Automatic Transfer Switch (ATS) TSS-200-US (Part Number: 604-00200-20) is a crucial component for grid-tied energy storage systems, facilitating seamless transitions between grid power and backup sources during outages.

Key Features

• Automated Power Switching: Detects grid outages and swiftly transitions to backup power sources, maintaining uninterrupted electricity supply.
• Capacity: Supports up to 200A continuous current, suitable for essential load backup applications.
• Voltage Compatibility: Provides 120V and 240V split-phase output, accommodating various residential power requirements.
• Built-in Transformer: Enhances system reliability and efficiency by managing voltage regulation internally.
• Durable Enclosure: Features an IP65-rated, NEMA 4X enclosure, suitable for both indoor and outdoor installations, offering protection against dust and water ingress.
• Manual Bypass Switch: Includes a manual bypass option for maintenance or emergency situations, ensuring continuous power availability.

Technical Specifications

• Model: TSS-200-US
• Part Number: 604-00200-20
• Maximum Continuous Input Current: 48A
• Rated Power: 11,400W
• Peak Power: 48,000W
• Dimensions(HxWxD): 17.9 x 21.6 x 9.6 in
• Weight: 65 lbs (29.5kg)
• Certifications: UL 1741, UL 869A, CSA C22.2 No. 107.1, CSA C22.2 No. 0.19
