Description

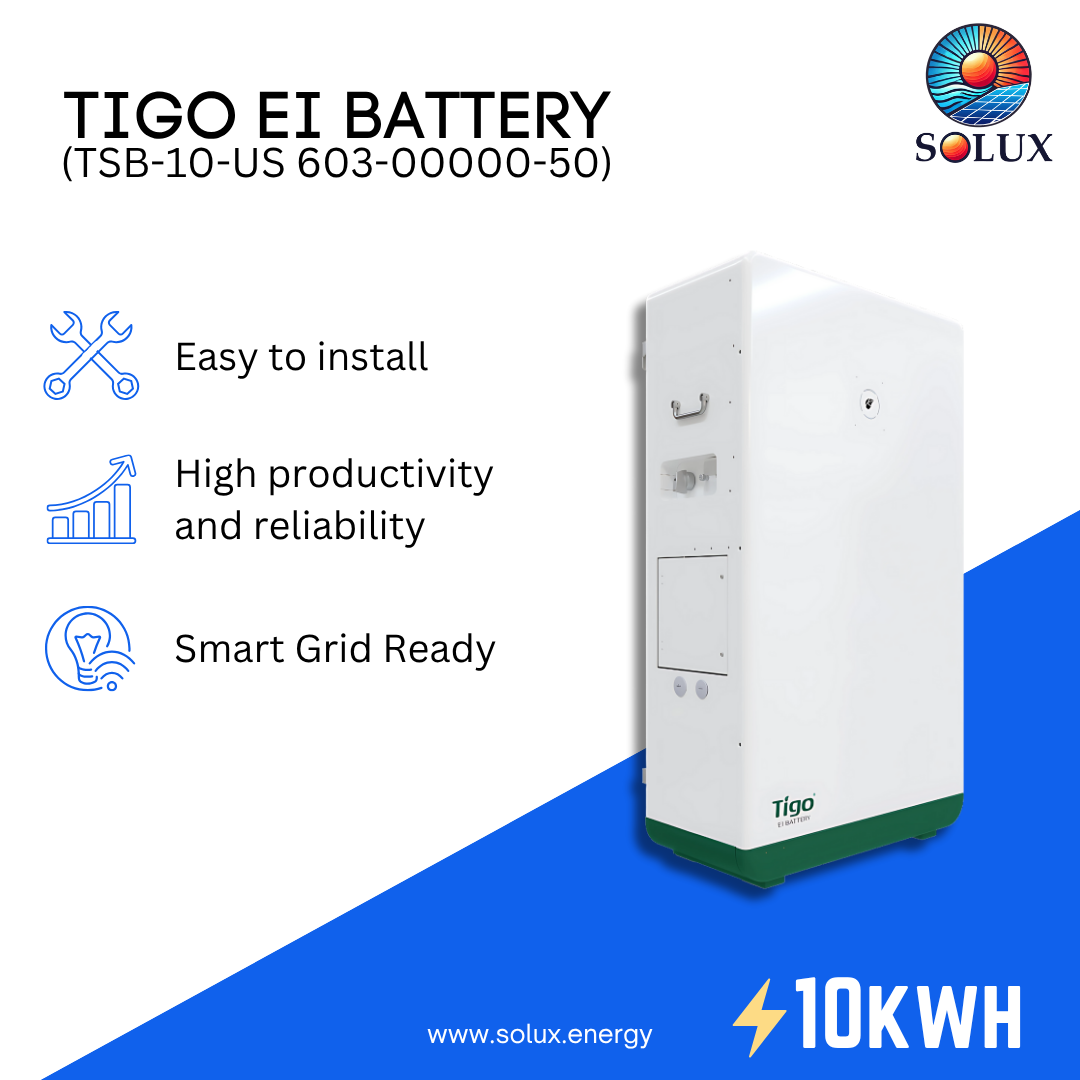

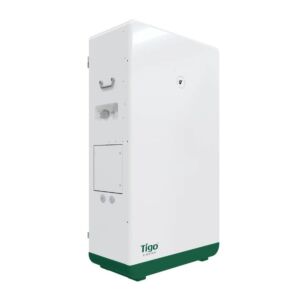

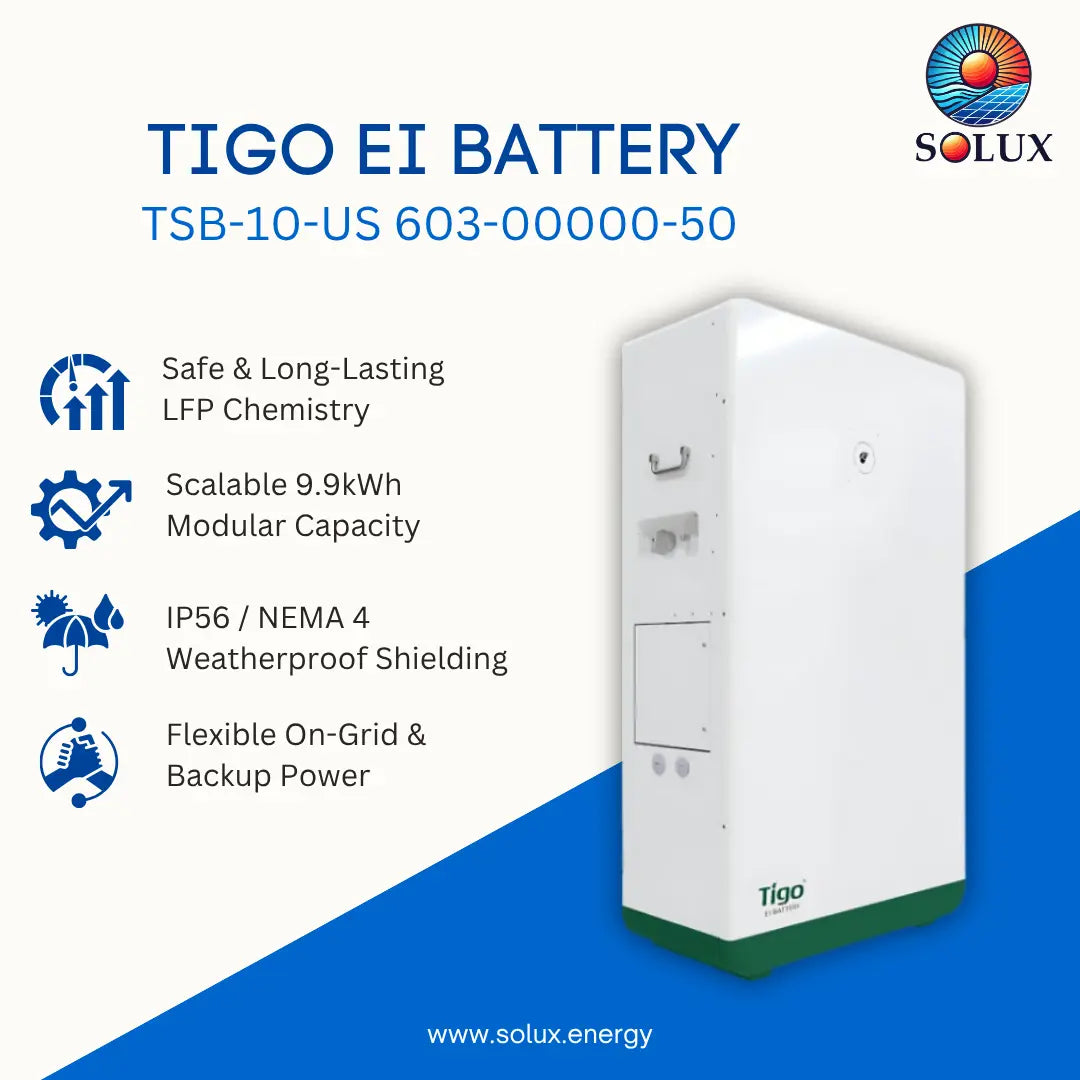

Tigo Energy Intelligence Battery TSB-10-US 603-00000-50 10kwh Battery with Enclosure
This battery is an integral component of Tigo's EI Residential Solar Solution, seamlessly integrating with the Tigo EI Inverter to provide a comprehensive solar-plus-storage system for homeowners.
Key Features
- High-Performance Chemistry: Utilizes Lithium Iron Phosphate (LFP) technology for enhanced safety and longevity.
- Flexible Capacity: Each TSB-10-US unit offers a usable capacity of 9.0 kWh, with the option to connect up to four units per inverter, achieving a total capacity of up to 36.0 kWh.
- Robust Design: Encased in an IP56/NEMA 4-rated enclosure, suitable for both indoor and outdoor installations, ensuring durability in various environmental conditions.
- Efficient Power Output: Delivers 5 kW continuous power with a peak output of 6 kW, supporting a wide range of household energy needs.
- Operational Versatility: Supports load shifting, self-consumption, and backup applications, allowing homeowners to maximize energy savings and ensure power availability during outages.

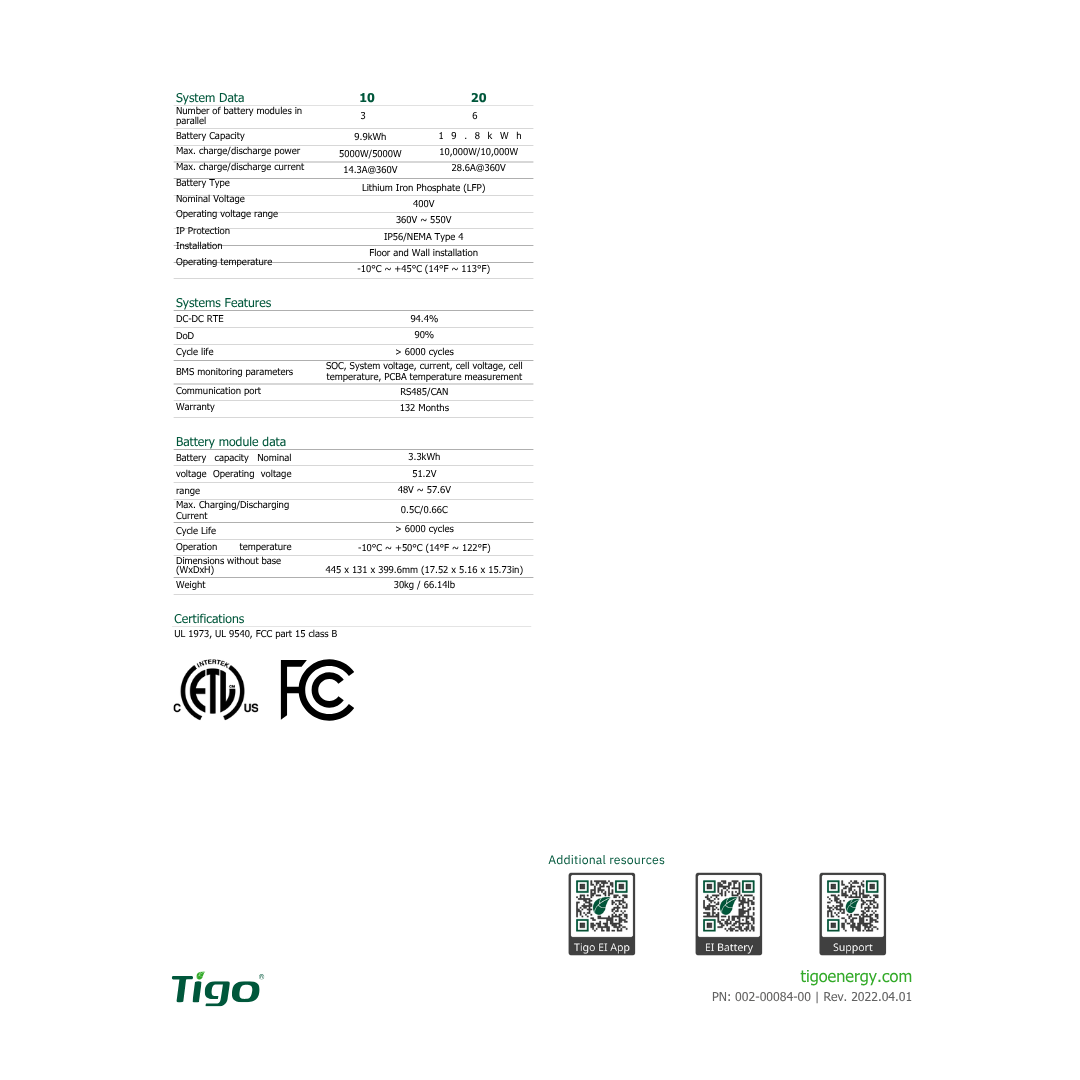

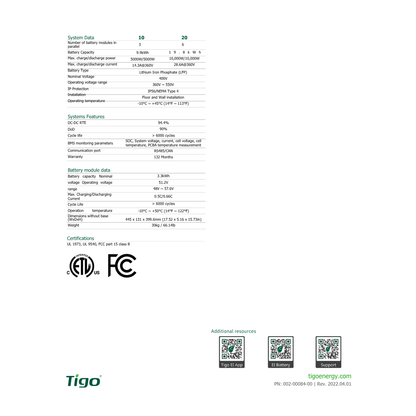

Technical Specifications
- Model: TSS-10-US
- Number of battery modules in parallel: 3
- Battery Capacity: 9.9kWh
- Max. charge/discharge power: 5000W/5000W
- Maximum Allowed System Voltage: 14.3A@360V
- Battery Type: Lithium Iron Phosphate (LFP)
- Nominal Voltage: 400V
- Operating voltage range: 360V ~ 550V
- IP Protection: IP56/NEMA Type 4
- Installation: Floor and Wall installation
- Operating temperature: -10°C ~ +45°C (14°F ~ 113°F)
- Battery capacity: 3.3kWh
- Nominal voltage: 51.2V
- Operating voltage range: 48V ~ 57.6V
- Max. Charging/Discharging Current: 0.5C/0.66C
- Cycle Life: >6000 cycles
- Operation temperature: -10°C ~ +50°C (14°F ~ 122°F)
- Dimensions without base (W x D x H): 445 x 131 x 399.6mm (17.52 x 5.16 x 15.73in)
- Weight: 30kg / 66.14lb
-
Resources
Download Spec Sheet
Designed in compliance with applicable BCI, DIN, BS and IEC standards. Tested in compliance to BCI and IEC standards.
