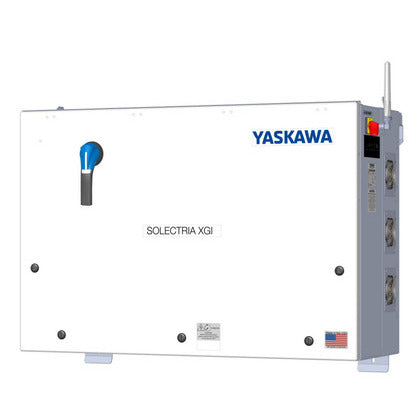

Transformerless Inverter, 200kVA, 1500V DC Input, 480V AC Output

Transformerless Inverter, 175 KW, 1500V DC Input, 480V AC Output

The Solectria XGI 1500-200/200-480 is a 200 kW utility-scale, three-phase, transformerless string inverter designed for large commercial and utility-scale solar PV systems. It accepts high-voltage PV input up to 1,500 VDC and delivers 480 VAC three-phase output. It is designed for flexible distributed or centralized PV architectures and advanced grid-support applications.

Specifications:

• Manufacturer Part Number: XGI-1500-200/200-480

Mechanical:

• Rated AC Power: 200 kW / 200 kVA
• AC Output Voltage: 480 VAC, 3-phase
• AC Voltage Range: 422–528 VAC
• Maximum AC Output Current: 240.6 A
• Frequency: 60 Hz
• Maximum DC Input Voltage: 1,500 VDC
•  MPPT Operating Voltage: 860–1,450 VDC
• Full-Power MPPT Voltage Range: 860–1,250 VDC
• Maximum Operating PV Power: 204 kW DC
• Maximum DC Input Current: 237.3 A
• Maximum Rated PV Power: 500 kWp
• Maximum DC/AC Ratio: 2.5
• Dimensions: Approximately 750 × 1,125 × 390 mm (29.5 × 44.3 × 15.4 in)
