Description

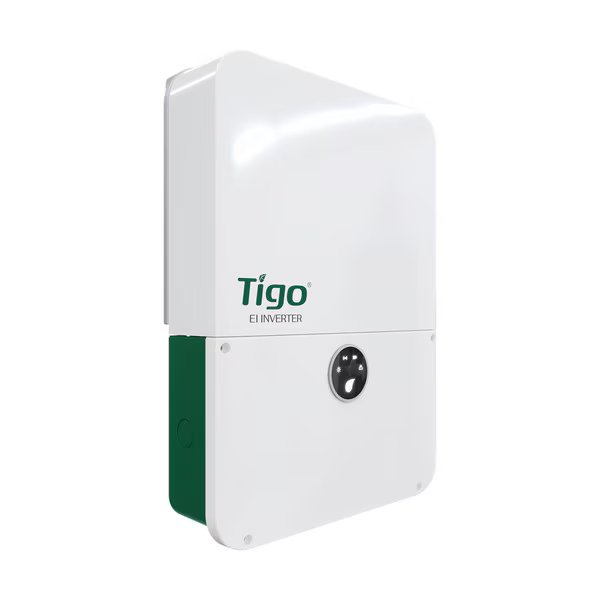

Tigo TSI-3.8K-US (compatible with 50A ATS)
The Tigo EI TSI-3.8K-US (601-2103K8-0002) is a 3.8 kW residential hybrid energy-storage inverter designed to work with solar PV and battery storage. It can provide backup power and is compatible with a 50A automatic transfer switch (ATS).
Technical Specifications
- Type: Hybrid / energy-storage inverter
- Continuous AC output: 3,800 W
- AC voltage: 208/240 V
- Frequency: 50/60 Hz
- Maximum apparent power: 3,800 VA
- Maximum AC output current: 16 A
- Backup output: 3,800 W nominal; up to 6,000 VA maximum
- Dimensions: approximately 15.8 × 7 × 22 in
-
Resources
Datasheet
✔️ Datasheet
Installation Manual
✔️ Installation Manual
Quick Start Guide
✔️ Quick Start Guide
Warranty
25 Years Warranty
