Description

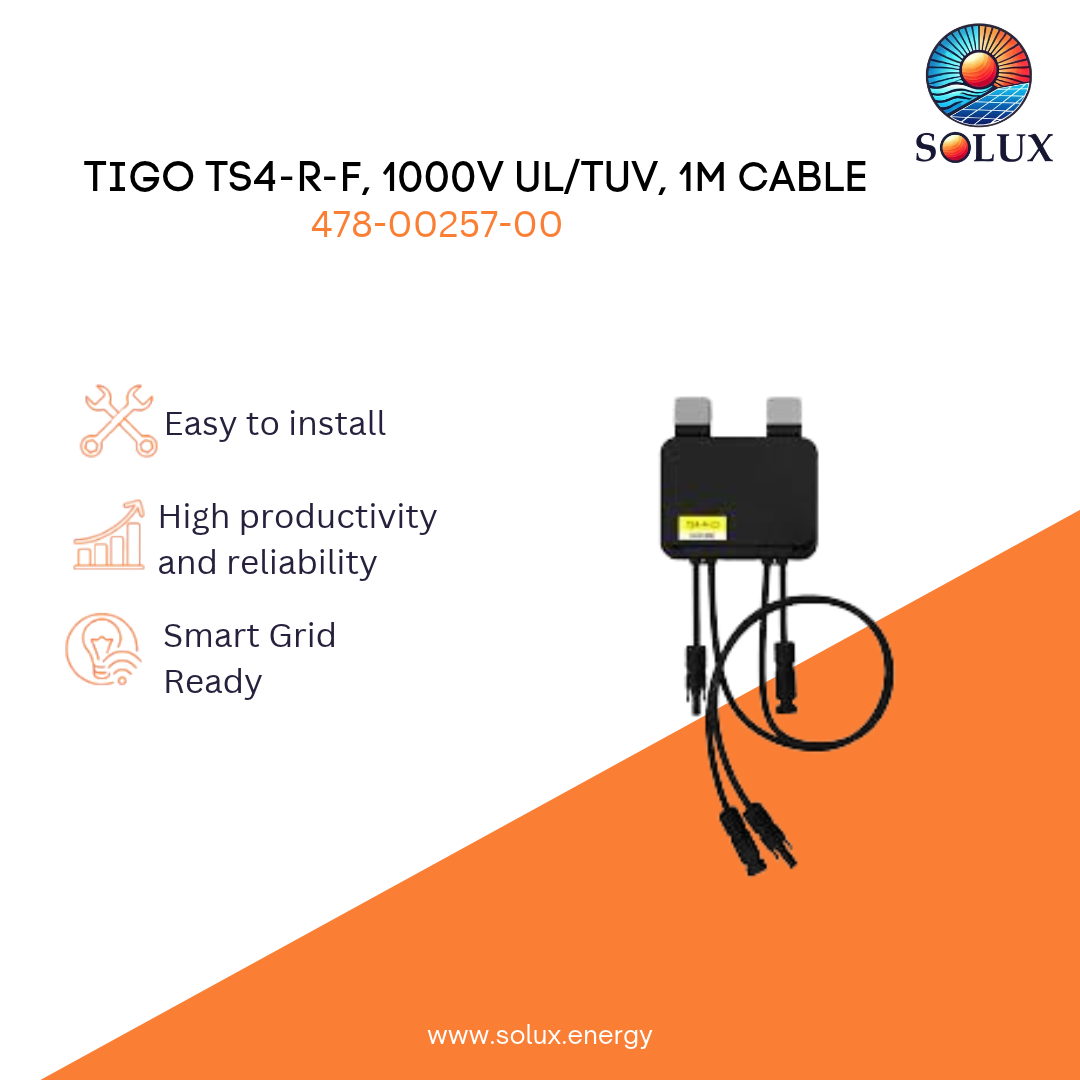

Tigo TS4-R-F, 1000V UL/TUV, 1M Cable, MC4 Compatible
The Tigo TS4-R-F is a module-level rapid shutdown device designed to improve solar PV system safety by reducing DC voltage during emergencies and maintenance.
Technical Specifications:
- Voltage: 16–90 V DC input
- Power Rating: Up to 475 W
- Maximum Input Current: 12.5 A.
- Connectors: MC4
- Cable Length: 0.12 m input / 1.2 m output
- Operating Temperature: −40°C to +85°C
- Dimensions: 5.50 × 5.45 × 0.90 inches (139.7 × 138.4 × 22.9 mm)
- Weight: 1.48 lbs (670 g).
-
Resources
Datasheet
✔️ No datasheet file resource available. Email support@solux.energy for file request.
Quick Start Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
