Description

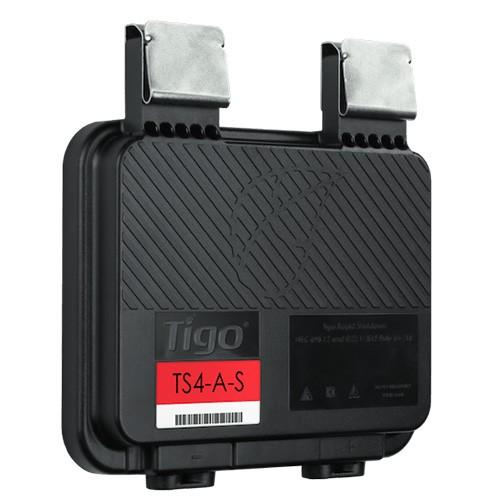

Tigo TS4-A-S, 1500VUL/1000VIEC, 1.2M Cable, MC4.
The Tigo TS4-A-S is a solar module-level rapid shutdown device with monitoring capabilities. It improves photovoltaic system safety by reducing DC voltage at the module level during a rapid shutdown event. It also supports module-level monitoring when used with compatible Tigo communication equipment.
Technical Specifications:
- Model: TS4-A-S
- Rated DC Input Power: 700 W
- Input Voltage Range: 16–90 V DC
- Maximum Input Voltage: 90 V DC
- Maximum Continuous Input Current: 15 A
- Output Power Range: 0–700 W
- Maximum System Voltage: 1500 V UL / 1000 V IEC
- Communication: Wireless
- Rapid Shutdown Time: 30 seconds or less
- Connector Type: MC4
- Dimensions: 5.45 × 5.50 × 0.90 inches
- Weight: 1.08 lbs (490 g)
- Protection Rating: IP68 / NEMA 3R
-
Resources
Datasheet
✔️ Download Datasheet
Quick Start Guide
✔️ Download Quick Start Guide
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
