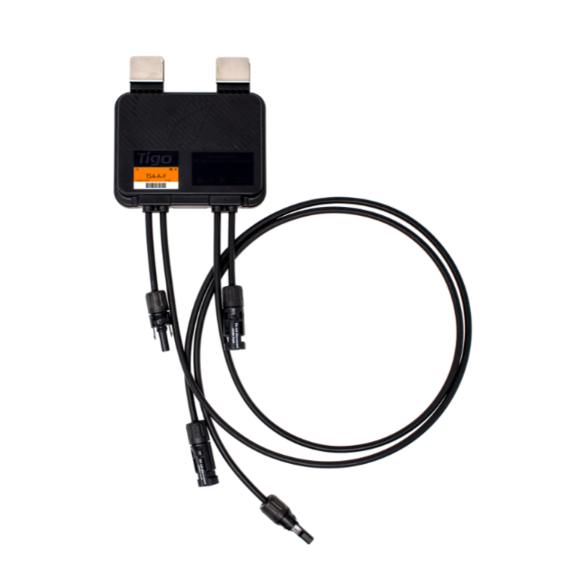

Tigo TS4-A-F Module Level Fire Protection with Rapid shutdown Capability with 1.2m MC4 Cables

Tigo TS4-A-F 700W

The TS4-A-F (Fire Safety) is the advanced add-on rapid shutdown solution that brings smart module functionality to standard.

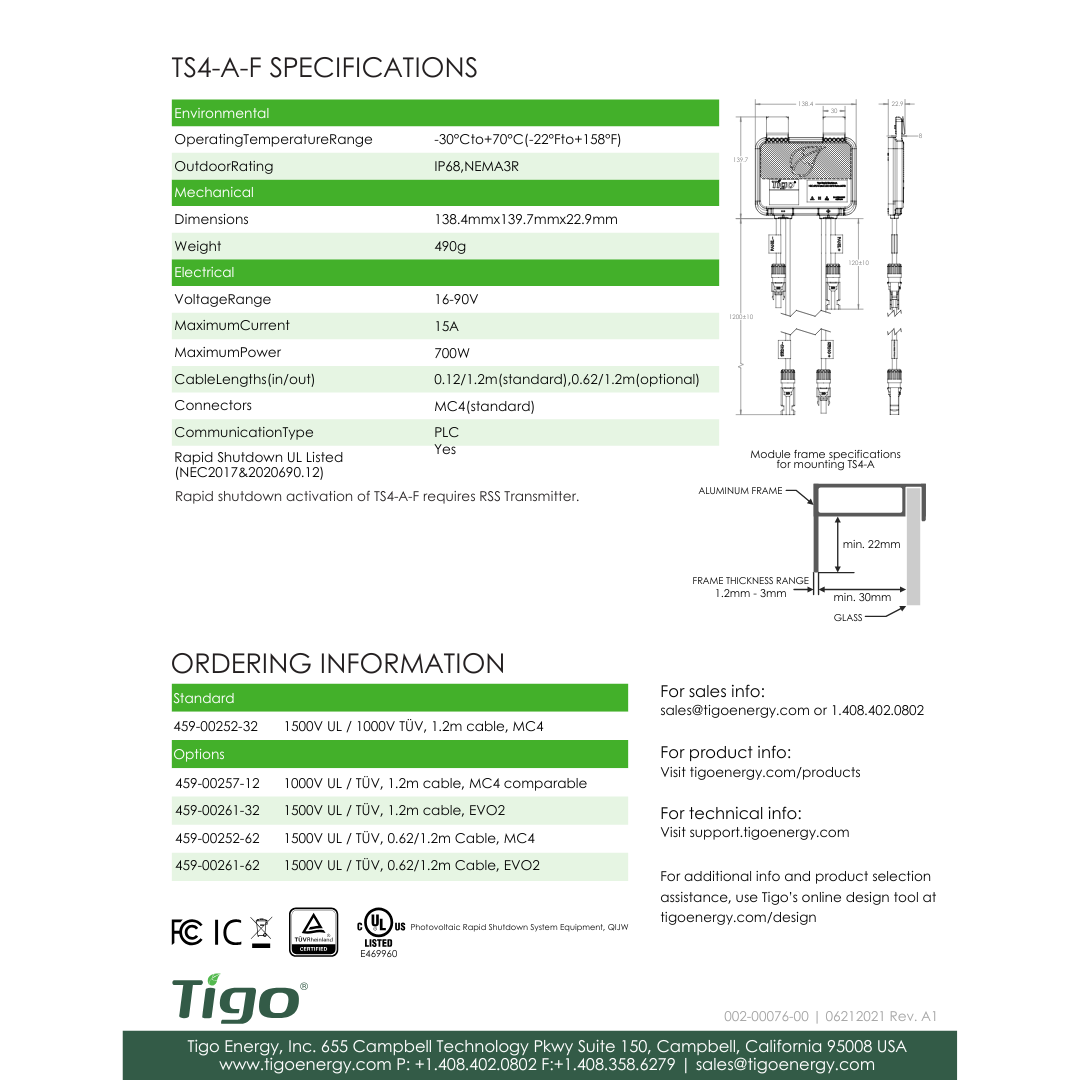

Technical Specifications

• Operating Temperature Range: -30°C to +70°C (-22°F to +158°F)
• Outdoor Rating: IP68, NEMA 3R
• Dimensions: 138.4mm x 139.7mm x 22.9mm
• Weight: 490g
• Voltage Range: 16 - 90V
• Maximum Current: 15A
• Maximum Power: 700W
• Cable Lengths (in/out): 0.12/1.2m (standard), 0.62/1.2m (optional)
• Connectors: MC4 (standard)
• Communication Type: PLC
• Rapid Shutdown UL Listed (NEC 2017 & 2020 690.12): Yes
• Rapid shutdown activation of TS4-A-F requires RSS Transmitter
