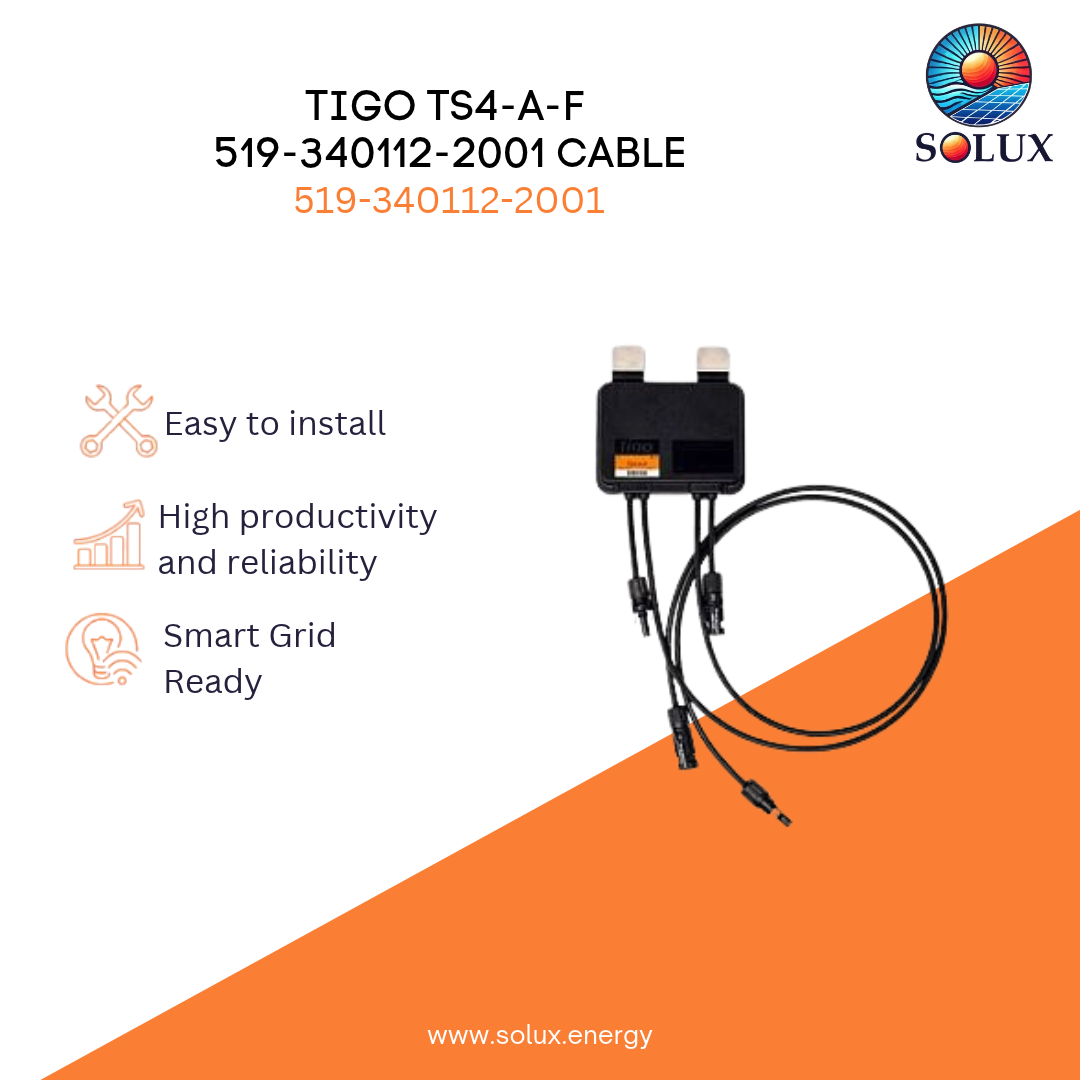

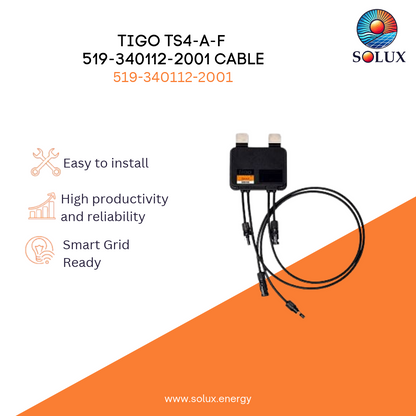

Tigo TS4-A-F (IMP /ISC) 16 A/22 A, 725W, 1500VUL/1000VIEC, 0.1/1.2M Cable, MC4 (Sold Individually, Master Box 20. 25 lbs 15x11x13)

Tigo Single Core, Pure Signal RSS Transmitter, Din Rail, 120/240VAC PS, Outdoor Enclosure kit

Tigo TS4-A-F enables code compliant Rapid Shutdown for high wattage modules up to 725 W, 22 A Isc.

The TS4-A-F complies with NEC 2017, 2020, and 2023 690.12 Rapid Shutdown specifications when installed with the Tigo RSS Transmitter or an inverter with a built-in Tigo certified transmitter. Option to upgrade to TS4-A-S for module-level monitoring and Multi-factor Rapid Shutdown capabilities.

Technical Specifications:

• Voltage: 12–80 V DC input
• Power Rating: Up to 725 W
• Current: Up to 16 A
• Features: Module-level rapid shutdown, automatic shutdown, PLC communication, snap-on mounting, no ground wire required.
• Connectors: MC4
• Cable Length: 0.1 m input / 1.2 m output
• Protection Rating: IP68, NEMA 3R
• Operating Temperature: −40°C to +85°C
• Dimensions: 139.7 × 138.4 × 22.9 mm
• Weight: Approximately 520 g
• Compatibility: Requires a compatible Tigo RSS transmitter or inverter with an integrated compatible transmitter
