Description

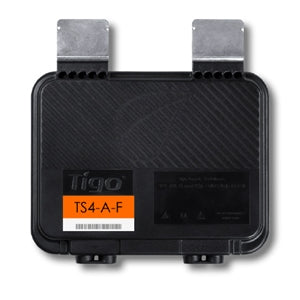

Tigo TS4-A-F, 25A, 700W, 1500V UL / 1000V IEC, 0.12/1.2m Cable, MC4
The Tigo TS4-A-F is a solar safety device that rapidly reduces panel-level DC voltage during emergencies or maintenance, helping improve safety for installers and emergency responders.
Technical Specifications:
- Voltage: 1500 V UL / 1000 V IEC
- Power Rating: Up to 700 W per solar module
- Maximum Current: 25 A
- Connectors: MC4
- Cable Length: 0.12 m input / 1.2 m output
- Operating Temperature: −40°C to +85°C
- Dimensions: 5.50 × 5.45 × 0.90 inches (139.7 × 138.4 × 22.9 mm)
- Weight: Approximately 1.08 lbs (490 g)
- Weight: 490 g.
-
Resources
Datasheet
✔️ Download Datasheet
Quick Start Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
