Description

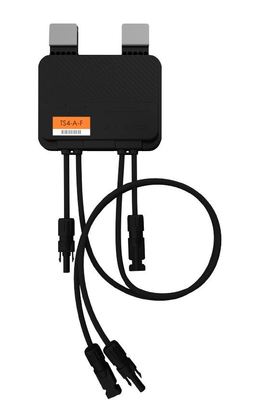

Tigo TS4-A-F, 1000VUL/TUV, 1.2M Cable, MC4 Comparable, 500W
The Tigo TS4-A-F is a solar safety device that rapidly shuts down panel-level power to help protect installers and emergency responders during emergencies or maintenance.
Technical Specifications:
- Voltage: 16–90 V DC
- Power Rating: Up to 500 W per solar module
- Current: Maximum 15 A
- Connectors: MC4
- Cable Length: 1.2 m output cable.
- Protection Rating: IP68, NEMA 3R
- Operating Temperature: −40°C to +85°C.
- Dimensions: 138.4 × 139.7 × 22.9 mm.
- Weight: 490 g.
-
Resources
Datasheet
✔️ Download Datasheet
Quick Start Guide
✔️ No quick installation guide file resource available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
