Description

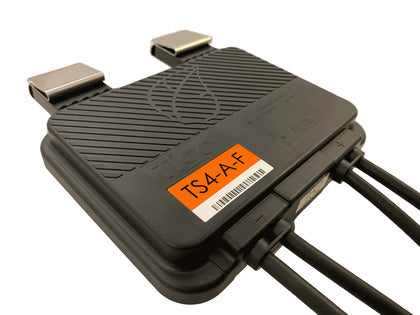

Tigo TS4-A-F, 1000VUL/TUV, .09M (Input)/1.17M Cable (Output), MC4 (Staubli)
The Tigo TS4-A-F is a module-level rapid shutdown device that helps improve solar system safety by reducing DC voltage during emergencies or maintenance. It works with compatible solar modules and a rapid shutdown transmitter.
Technical Specifications:
- Voltage: 16–90 V DC input
- Power Rating: 700 W
- Current: 15 A
- Connectors: MC4
- Cable Length: 0.12 m input / 1.2 m output
- CProtection Rating: IP68, NEMA 3R
- Operating Temperature: −30°C to +75°C (UL) / −40°C to +85°C (IEC)
- Dimensions: 139.7 × 138.4 × 22.9 mm
- Weight: Approximately 490 g
-
