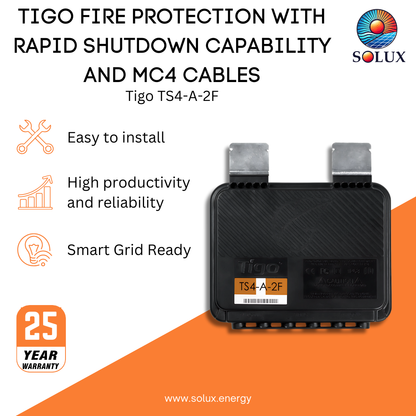

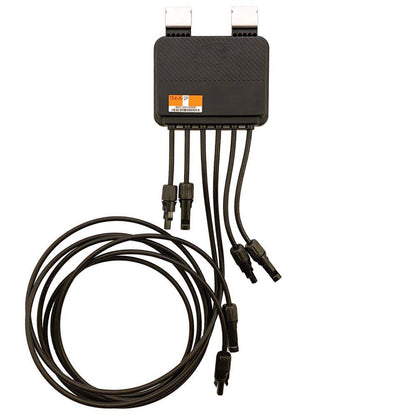

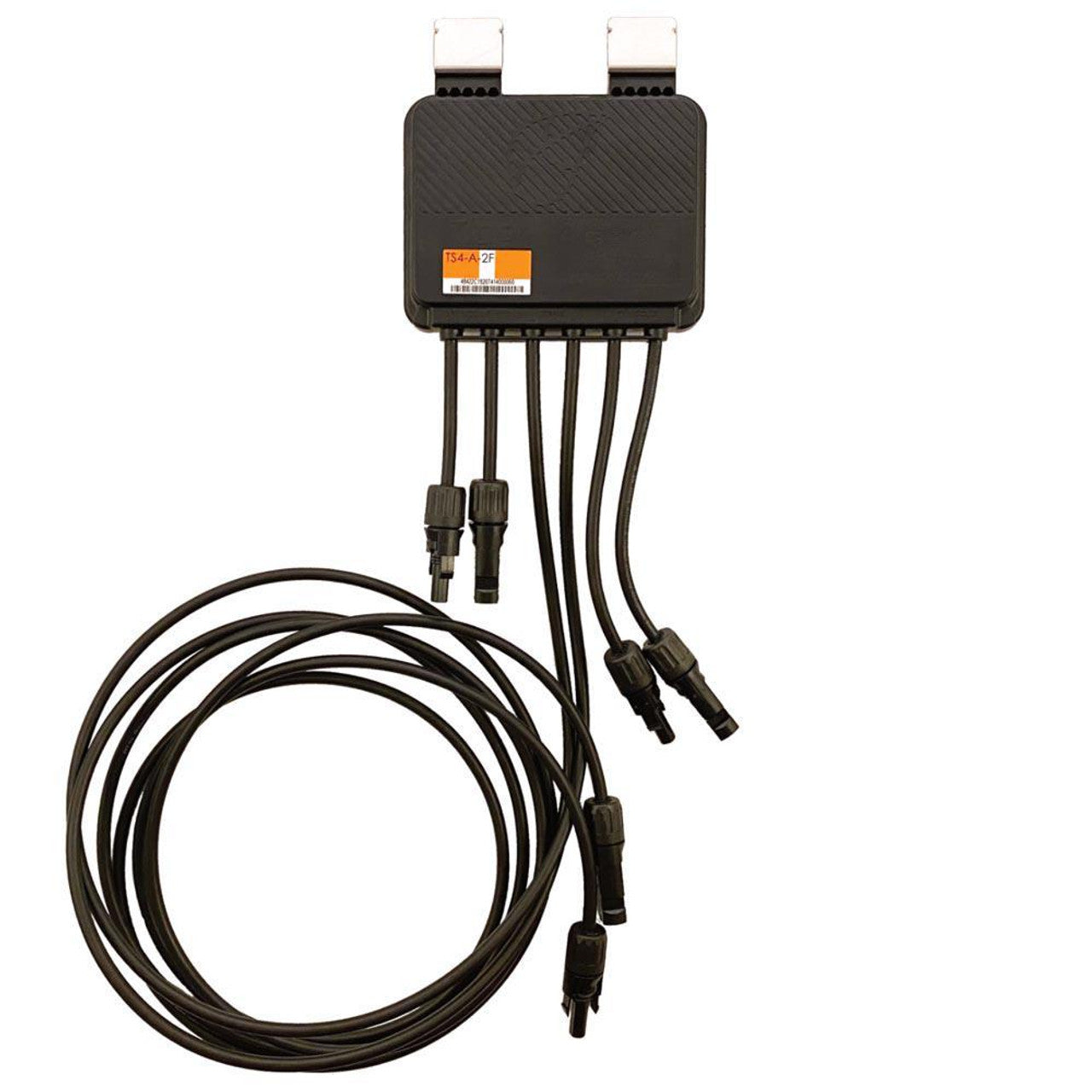

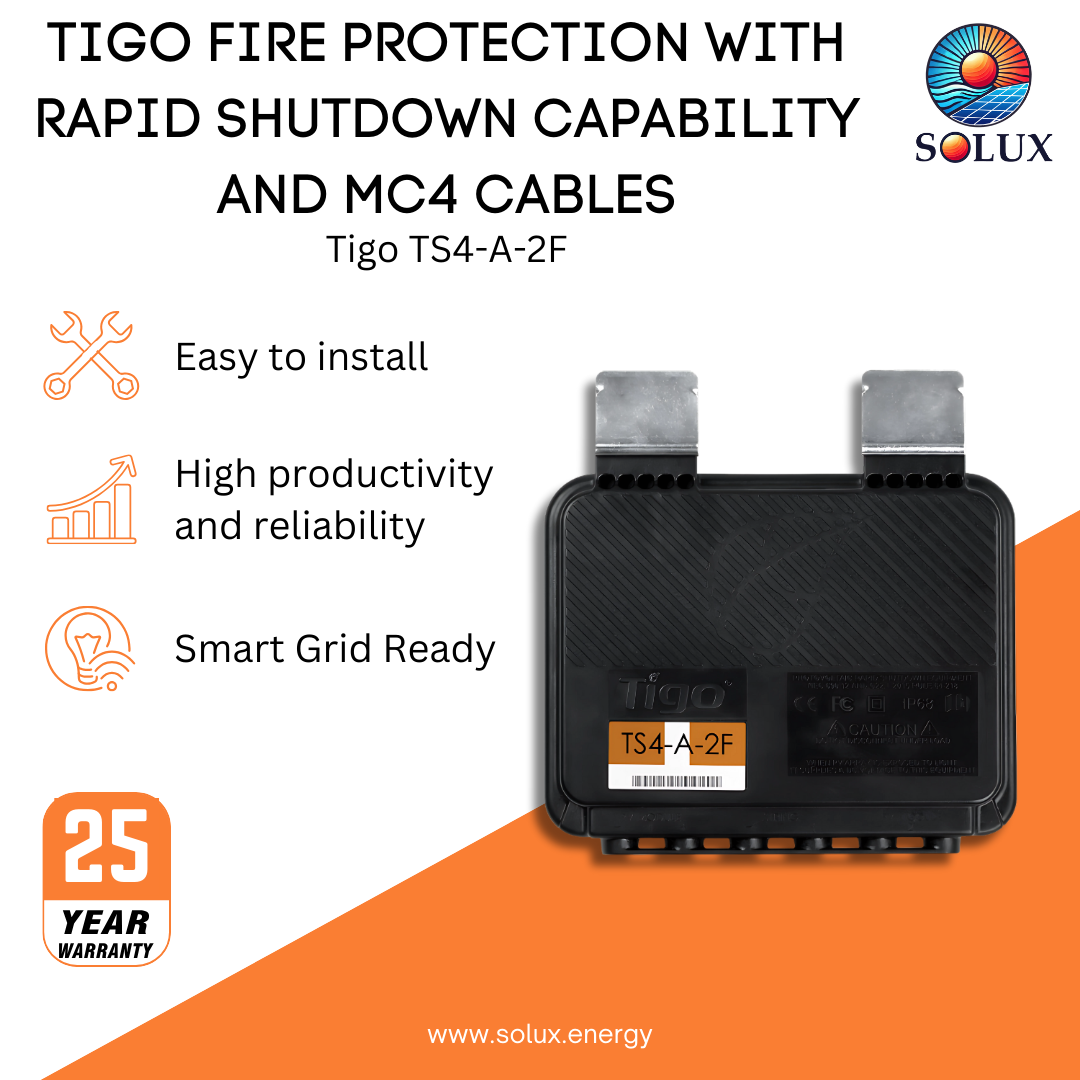

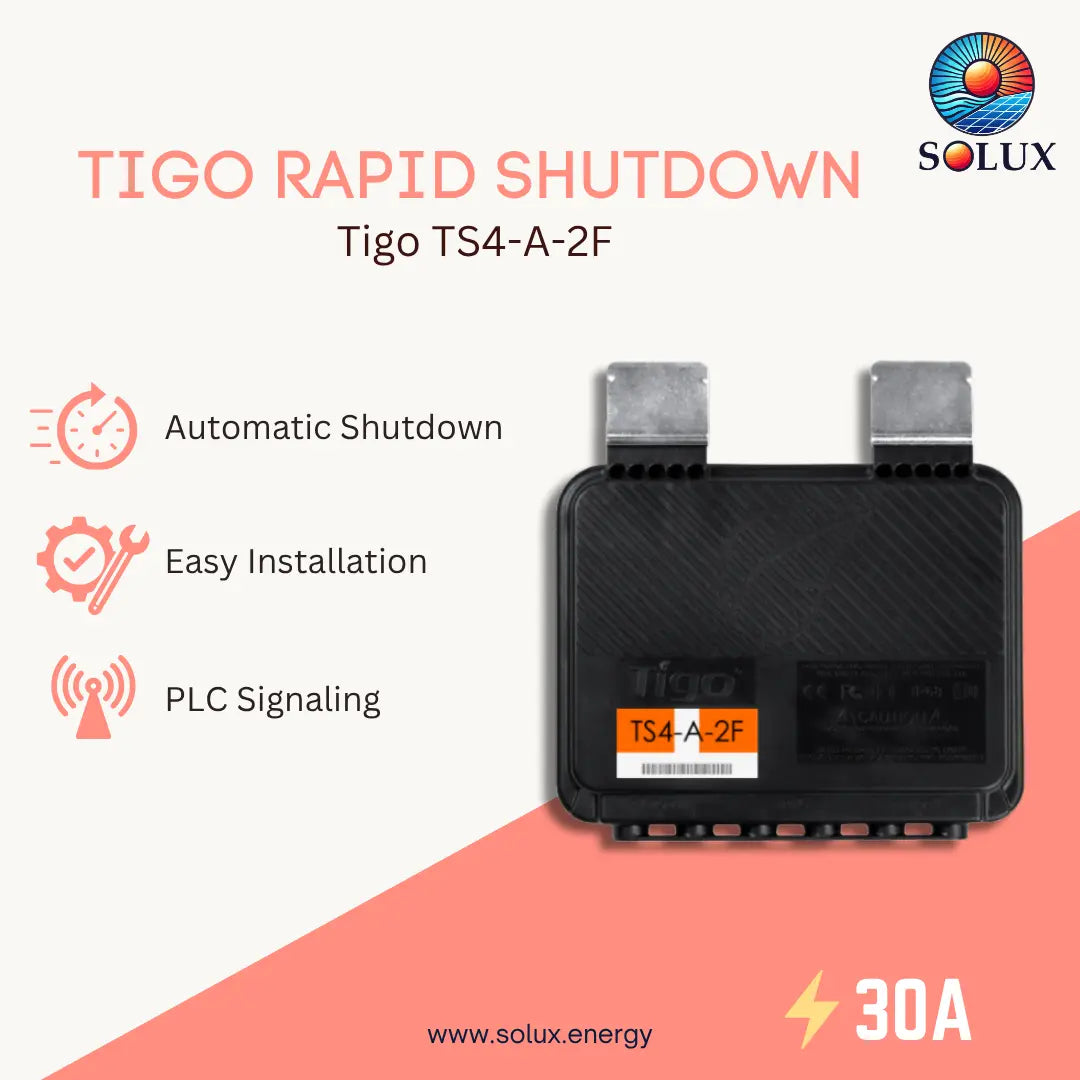

Tigo TS4-A-2F Module Level Fire Protection with Rapid Shutdown Capability and MC4 Cables

Tigo TS4-A-2F | 2 Module Rapid Shutdown | 20A (Isc), 1000W, 1500VUL/1000VIEC, 0.12/0.2/2.2M Cable, MC4/h2>

The Tigo TS4-A-2F is a reliable, cost-effective rapid shutdown solution that meets the latest module-level shutdown requirements, including NEC 2017/2020. The TS4-A-2F is both IEC and UL certified for global acceptance. It is UL PVRSS certified for connectivity with the largest network of inverters, many of which have a built-in RSS transmitter. By connecting to two modules, the TS4-A-2F reduces labor time and enables 16% fewer connections on a 14-panel string compared to single-channel MLPE.

Features and Benefits

• Single MLPE connects to 2 PV modules
• IEC and UL certified
• Meets US NEC rapid shutdown safety requirements
• UL PVRSS certified with the largest network of inverters
• up to 1000W (500W per channel)
• 16-80V, up to 15A (per channel)
• MC4 (standard) connectors
• Snaps to module frame for easy mounting
• Does not require a ground wire
• PLC communication
• 25-year warranty

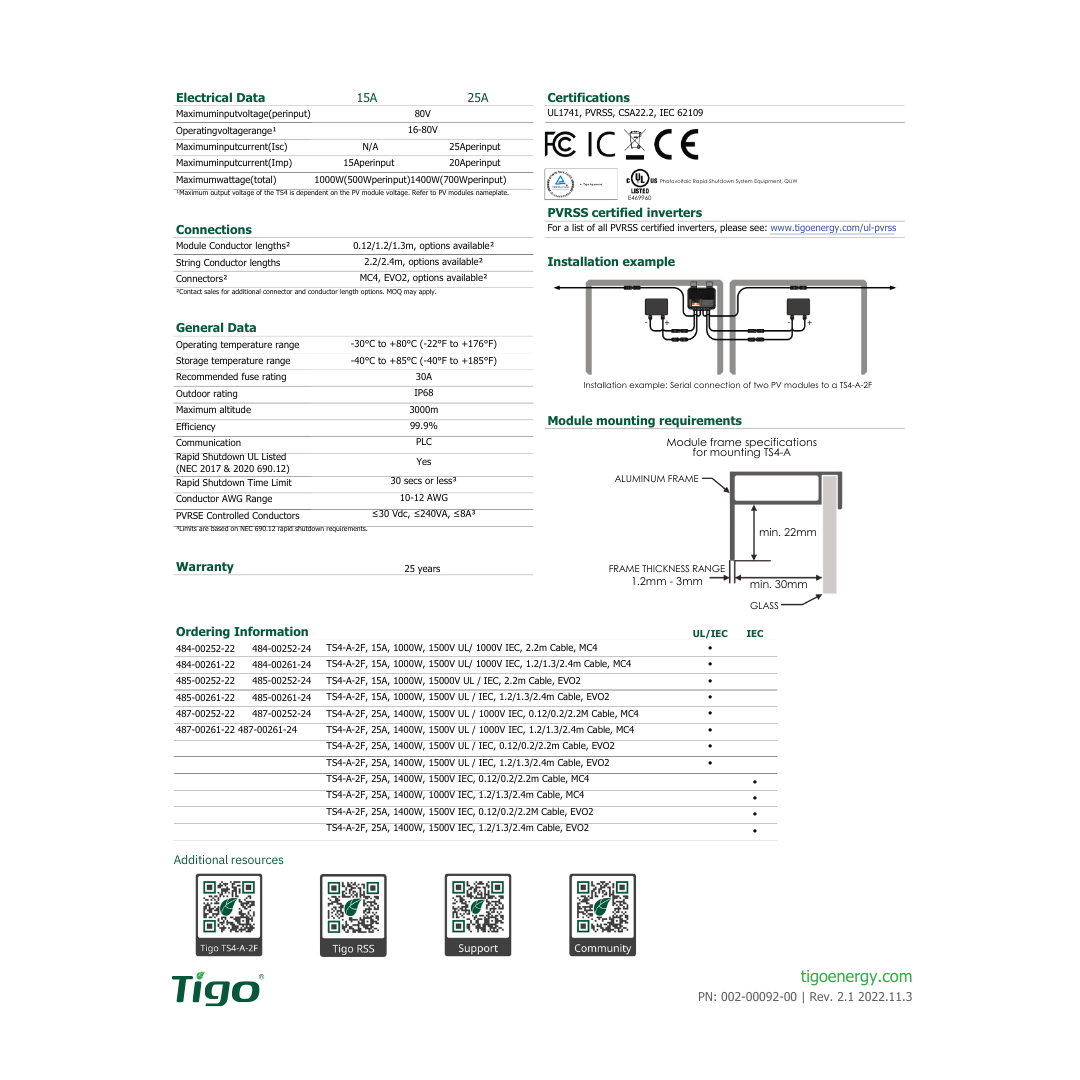

Technical Specifications

• Dimensions: (W x H x D) 138.4 x 139.7 x 22.9mm / (5.4 x 5.5 x 0.9in)
• Weight 590g: (1.3lbs)
• Maximum input voltage (per input): 80V
• Operating voltage range¹: 16 - 80V
• Operating temperature range: -30°C to +80°C (-22°F to +176°F)
• Storage temperature range: -40°C to +85°C (-40°F to +185°F)
• Recommended fuse rating: 30A
• Outdoor rating: IP68
• Maximum altitude: 3000m
• Efficiency: 99.9%
• Communication: PLC
• Rapid Shutdown UL Listed (NEC 2017 & 2020 690.12): Yes
• Rapid Shutdown Time Limit: 30 secs or less³
• Conductor AWG Range: 10-12 AWG
• PVRSE Controlled Conductors: ≤30 Vdc, ≤240VA, ≤8A³
