Description

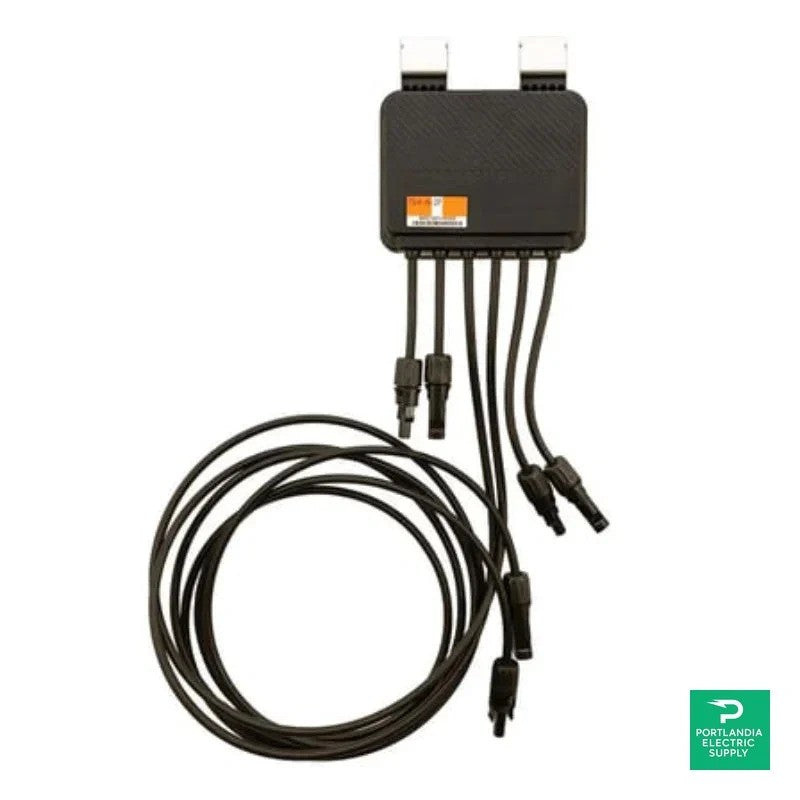

Tigo TS4-A-2F, 1500VUL, 2.4M Cable, MC4, Dual Module
The Tigo TS4-A-2F is a dual-module rapid shutdown device designed for solar photovoltaic (PV) systems. It provides module-level rapid shutdown functionality for two solar modules, helping meet applicable electrical safety requirements. It features a 1500 V UL rating, 2.4-meter cable, and MC4 connectors for integration with compatible PV systems and rapid shutdown transmitters.
Technical Specifications:
- Brand: Tigo Energy
- Part number: 484-00252-24
- Product Type: Dual-Module Rapid Shutdown Device
- Operating Temperature Range: -30°C to +70°C (-22°F to +158°F)
- Outdoor Rating: IP68, NEMA 3R
- Max Input Voltage (VOC @ Lowest Temperature): 80V
- Input Voltage Range (per input): 16 - 80V
- Maximum Current (per input): 15A
- Maximum Power (total: 1000W
- Cable Lengths (in/out): 0.12 and 0.2m/2.2m (standard)
1.2 and 1.3m/ 2.4m (optional) - Connectors MC4: (standard), EVO2 (optional)
- Communication Type: PLC
- Weight: 1.30 lb (590g)
- Dimensions: 138.4mm x 139.7mm x 22.9mm
-
Resources
Datasheet
✔️ Download Datasheet
Quick Start Guide
✔️ No quick installation guide available. Email support@solux.energy for file request.
Warranty
✔️ No warranty file resource available. Email support@solux.energy for file request.
