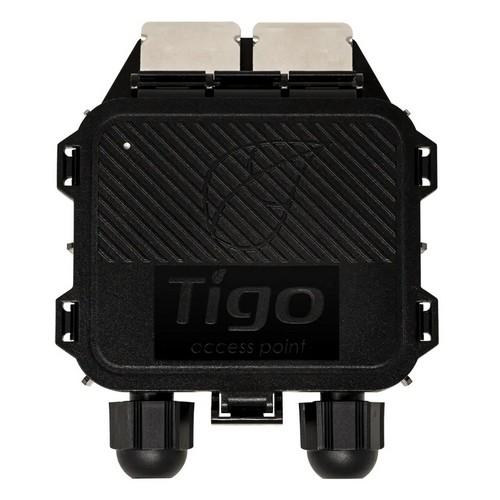

Tigo TAP

Tigo TAP

The Tigo Access Point (TAP) improves the data management of your solar system through seamless communication with Tigo Smart modules and retrofit devices. TAP significantly improves the level of security at module level deactivation. Combined with a Cloud Connect Advanced (CCA), the TAP offers unsurpassed insights into your PV system.

Technical Specifications:Model: 490-00000-52

• Manufacturer: Tigo Energy
• Model: TAP (Access Point)
• Part Number: 158-00000-02
• Power Consumption: 0.5 W average, 1 W peak
• Maximum Power Consumption: 5.5 W
•  Average Power Consumption: 0.85 W
• Standby Power: 0.06 W
• Maximum String Voltage: 1500 V DC
• Maximum Sync Cable Length: 30 m (100 ft)
• Power consumption: 5.5 W maximum / 0.85 W average
• Communication Interface: RS485 connection to CCA
• Recommended Cable: RS485, 18–22 AWG
• Maximum Device Capacity: Up to 300 TS4 units per TAP
• Dimensions (with Bracket): 126.2 × 130 × 26.8 mm
• Weight: 227 g (0.5 lb)
• Operating Temperature: −30°C to +70°C (−22°F to +158°F)
