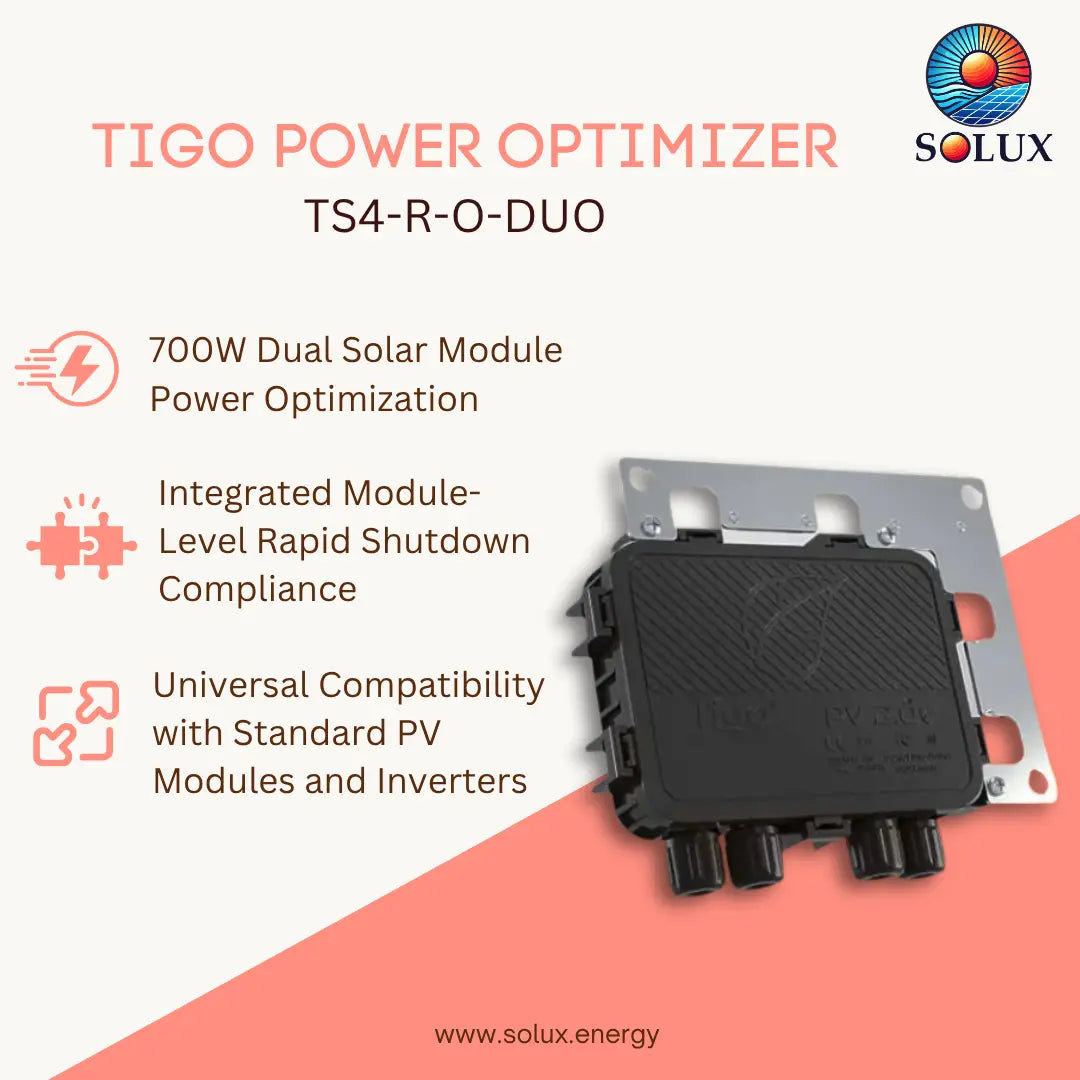

Tigo 700W Dual Module Optimization Add-on Unit, TS4-R-O-DUO
The Tigo TS4-R-O-DUO is a dual-module solar power optimizer designed to improve the performance of solar photovoltaic (PV) systems. It connects to two solar panels and helps minimize power losses caused by differences in panel performance. It also supports module-level rapid shutdown when installed with the required compatible equipment.

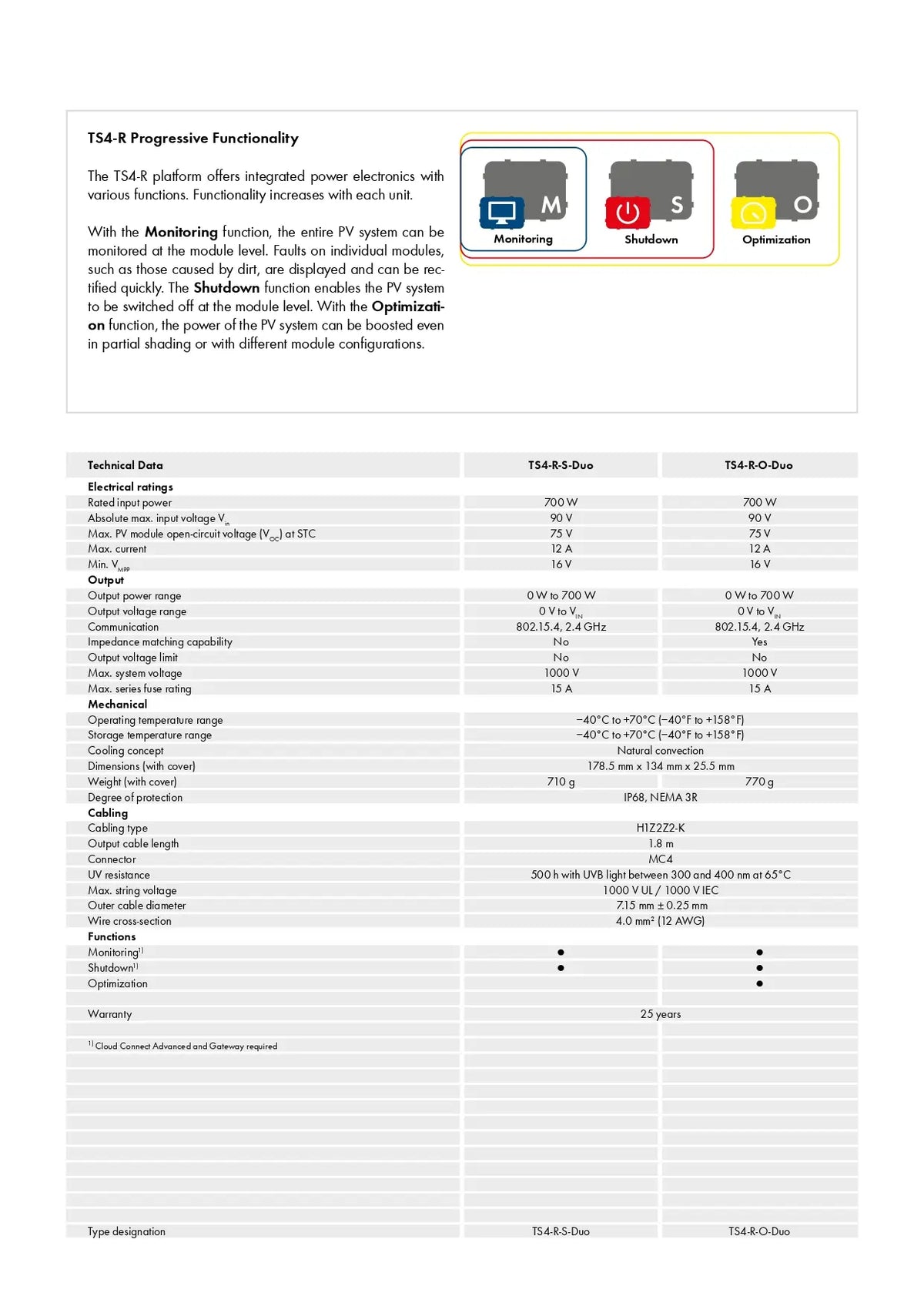

Technical Specifications:
- Rated DC Input Power: 700 W
- Input Voltage: 16–90 V DC
- Maximum Input Current: 12 A
- Output Power Range: 0–700 W
- Output Voltage Range: 0–Voc
- Maximum System Voltage: 1000 V or 1500 V
- Communication: Wireless, 2.4 GHz
- Functions: Power optimization and module-level rapid shutdown
- Dimensions: 178.5 × 134 × 25.5 mm
- Weight: Approximately 770 g
-
