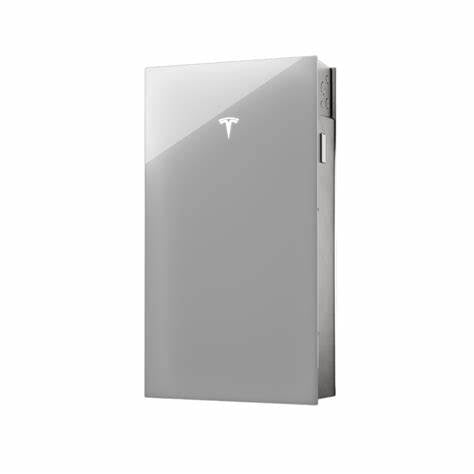

Tesla 1707000-XX-Y Powerwall 3 AC 13.5kW Battery

Tesla 1707000-XX-Y Powerwall 3 AC 13.5kW Battery

Powerwall 3 achieves this by supporting up to 20 kW DC of solar and providing up to 11.5 kW AC of continuous power per unit. It has the ability to start heavy loads rated up to 185 LRA, meaning a single unit can support the power needs of most homes. Powerwall 3 Expansions make it easier and more affordable to scale up customers’ systems to meet their current or future needs. Powerwall 3 is designed for fast and efficient installations, modular system expansion, and simple connection to any electrical service

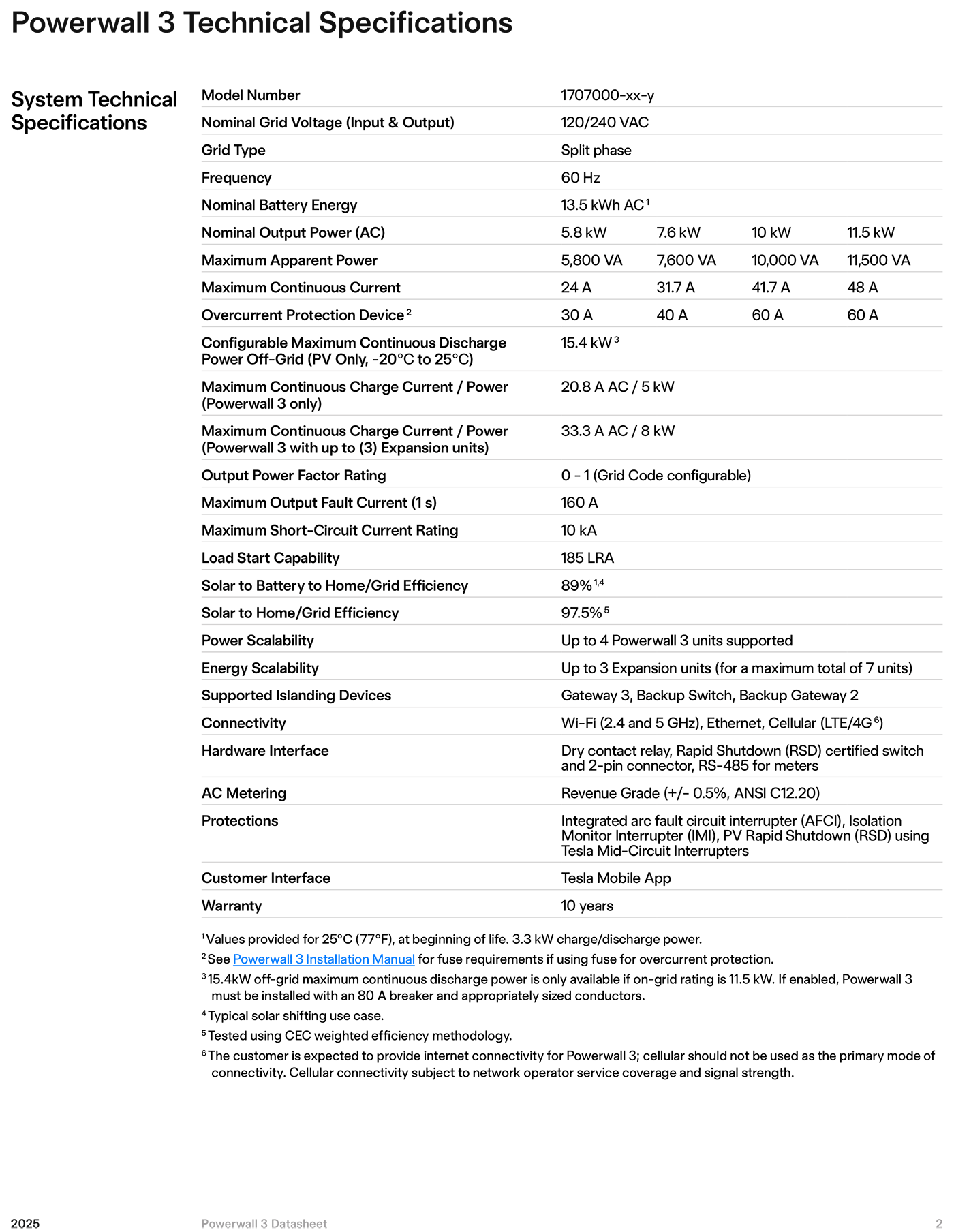

Technical Specifications:

• Nominal Grid Voltage (Input & Output): 120/240 VAC
• Grid Type: Split phase
• Frequency: 60 Hz
• Nominal Battery Energy: 13.5 kWh AC
• Configurable Maximum Continuous Discharge Power Off-Grid (PV Only, -20°C to 25°C): 15.4 kW 3
• Maximum Continuous Charge Current / Power (Powerwall 3 only): 20.8 A AC / 5 kW
• Maximum Continuous Charge Current / Power (Powerwall 3 with up to (3) Expansion units): 33.3 A AC / 8 kW
• Output Power Factor Rating: 0 - 1 (Grid Code configurable)
• Maximum Output Fault Current (1 s): 160 A
• Maximum Short-Circuit Current Rating: 10 kA
• Load Start Capability: 185 LRA
• Solar to Battery to Home/Grid Efficiency: 89%
• Solar to Home/Grid Efficiency: 97.5%
• Maximum Solar STC Input: 20 kW
• Withstand Voltage: 600 V DC
• PV DC Input Voltage Range: 60 — 550 V DC
• PV DC MPPT Voltage Range: 60 — 480 V DC
• MPPTs: 6
• Maximum Current per MPPT (Imp): 15 A 7, 8
• Maximum Short Circuit Current per MPPT (Isc): 19 A 8
• Dimensions: 1105 x 609 x 193 mm (43.5 x 24 x 7.6 in) 10
• Weight of Powerwall 3 124 kg (272.5 lb)
• Warranty: 10 years
