APSmart 5kW Transformer - Needed for backup power for use with (1) 5k PCS

Transformer T-A (5KVA)

APsystems is the #1 global multi-platform MLPE solution provider, offering microinverter, energy storage and rapid shutdown devices for the solar PV industry. APsystems brands include APsmart and APstorage. Founded in Silicon Valley in 2010, APsystems encompasses 4 global business units serving customers in over 100 countries. With millions of units sold producing more than 4TWh of clean, renewable energy, APsystems continues to be a leader in the ever-growing solar MLPE segment.

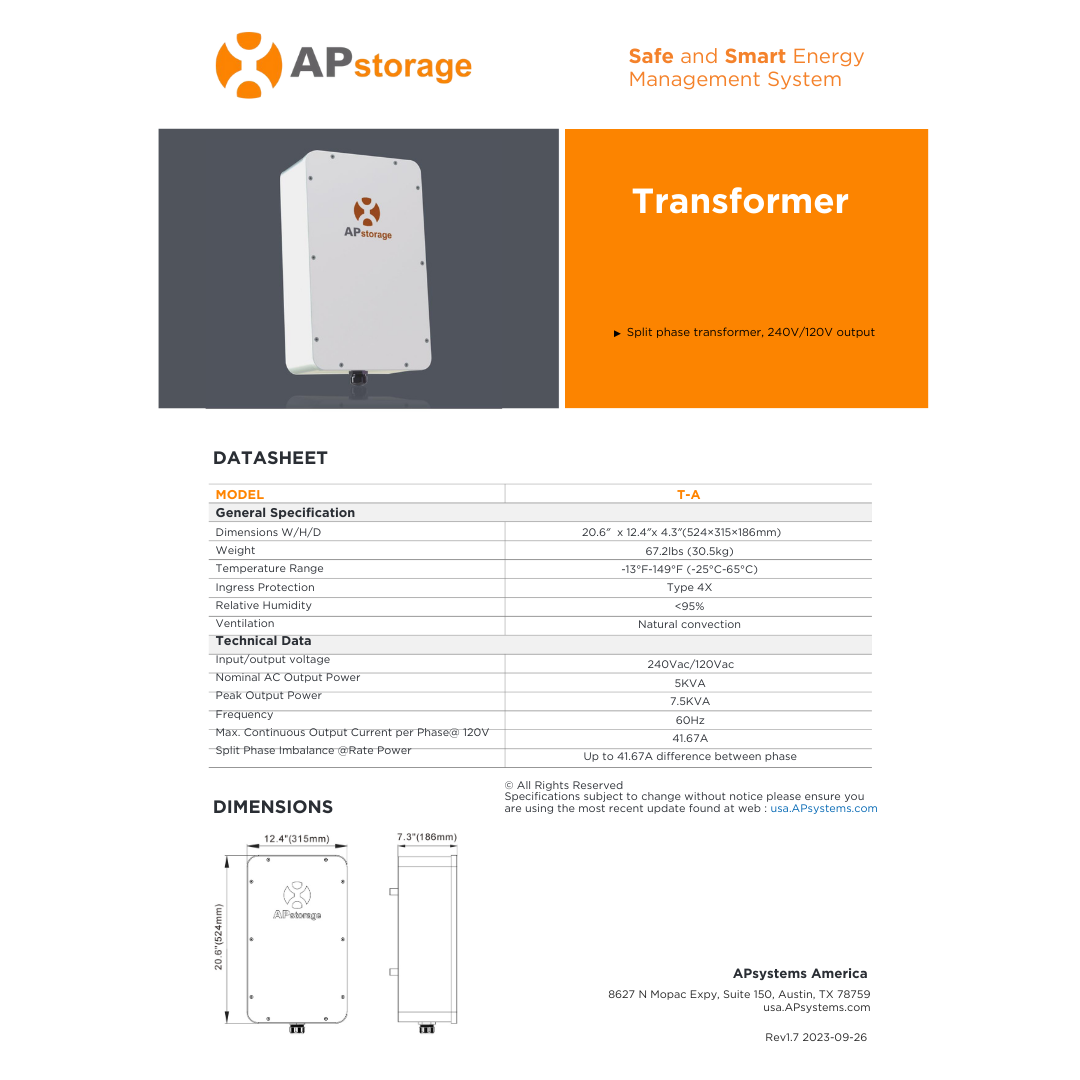

Technical Specifications:

• Dimensions W/H/D: 20.6" x 12.4" x 4.3" (524x315x186mm)
• Weight: 67.2lbs (30.5kg)
• Input / Output Voltage: 240Vac / 120Vac
• Nominal AC Output Power: 5KVA
• Peak Output Power: 7.5KVA
• Frequency: 60Hz
• Max. Continuous Output Current per Phase @120V: 41.67A
• Split Phase Imbalance @ Rate Power: Up to 41.67A difference between phase
